High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt

High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt thumbnail-1
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt thumbnail-2
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt thumbnail-3
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt thumbnail-4
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt thumbnail-5
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt photo-1
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt photo-2
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt photo-3
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt photo-4
High Tension 200 Mesh Polyester Silk Screen Printing Mesh for Textile t Shirt photo-5
US$ 2 - 50 MOQ: 50 Meters
Key Specifications
Get Latest Price
Brand Name:
SPRING
Place of Origin:
China
Model Number:
DPP
Contact Supplier Request Quote Chat Now
Shanghai SPRING Silk Screen Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SPRING
Place of Origin China
Model Number DPP
Material 100% Polyester
Monofilament Style Yes
Mesh Count 25mesh-500mesh
Printing Silk Screen Printing
Elasticity High
Weave Type Plain

High tension 200 mesh polyester silk screen printing mesh for textile t shirt

Shanghai SPRING is Textile Screen Printing Screens manufacturer and Printing On Mesh Fabric in China,specialized in the research,development and production of Mesh Printing.

Textile fabric is a kind of textile fiber processed and woven into a product, divided into woven fabrics and knitted fabric two categories. Textile printing is a process of limiting dyeing on a predetermined area of a fabric.Textile Screen Printing refers to the process of forming patterns on the fabric by means of printing. Printing methods have Fabric Textile Printing, Textile Screen Printing Screens from the type printing, began by manual operation, gradually to semi-automatic, complete automation, and then the peaceful mesh printing development to the circular mesh type.

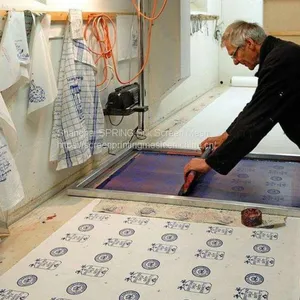

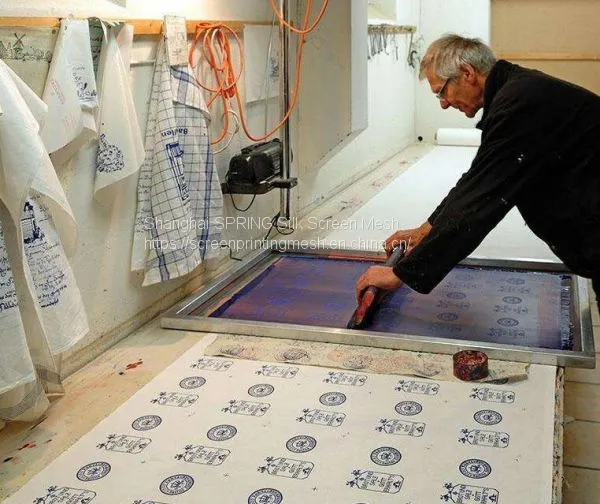

The main printing material for Screen Printing Textiles is sieve, which originates from the type printing. Type printing is a paper, metal or chemical version carved into hollow pattern printing method. Silk Screen Printing Textiles is divided into Flat Screen Printing In Textiles and circular Fabric Textile Printing, flat screen printing is the screen tension in the metal or wood rectangular screen printing frame, round the mesh is a nickel-metal circular Screen Printing Screen Mesh. When the Screen Printing In Textiles, will be carved pattern patterns on the Screen Printing Fabric Mesh, in the Flat Screen Printing or rotary screen printing machine color through the screen printing pattern patterns transferred to the textile, flat screen printing has Textiles Hand Screen Printing and machinery.


Screen Printing Fabric Mesh

1.Specifications: 13T-165T(mesh/cm)
2.Mesh count: 33-420 (mesh/inch)
3.Thread diameter: 31-550um
4.Mesh opening: 25-2000um
5.Color: white, yellow and black
6.Width: 105cm, 127cm, 145cm, 165cm, 220cm, 258cm, 305cm, 370cm or customized
7.Roll length: 30-70m


Textile Screen Printing Mesh Application: According to the use of textiles can be divided into clothing textile printing, decorative textile printing, industrial textile printing. For example:Indoor supplies printing, bedding printing, outdoor products printing,including home cloth and restaurant bathroom supplies, quilt, quilt cover, blankets, towels are , pillow, the core, pillowcases and so on. Outdoor supplies include artificial turf.

Sample service:
Sample order can be send by EMS, UPS, TNT to your door.
Payment service:
Sample order can be paid by Western Union,MoneyGram,Paypal or Escrow.
Regular order can be paid by T/T,Western Union,L/C,etc.

Textile Screen Printing Screens

Mesh(T)/cm-

wirediameter/μm

 mesh/inch Opening (μm) Open area(%) thickness(μm) Theoretical ink volume(cm3/㎡)
13T-150 33 619 64 300 128
21T-150 55 326 46 260 118
24T-100 60 316 57 136 65
24T-120 60 296 51 162 83
28T-140 70 217 40 195 76
32T-55 81 257 67 103 67
32T-100 81 212 45 165 73
36T-90 92 183 44 150 65
39T-55 100 177 56 88 55
39T-80 100 176 48 125 60
43T-80 110 149 41 130 53
47T-55 120 152 61 88 48
48T-70 122 133 41 115 47
53T-55 135 133 50 86 42
54T-64 137 115 39 100 39
59T-55 150 114 45 95 43
61T-64 155 90 31 101 30
61T-70 155 94 33 120 40
64T-55 160 98 38 98 36
64T-64 160 85 30 115 34
68T-55 175 85 34 85 28
72T-48 182 90 36 78 33
72T-55 182 85 30 90 27
77T-48 195 77 35 80 28
77T-55 195 67 27 88 24
80T-48 200 72 33 74 25
90T-48 230 56 25 78 19
100T-40 255 58 33 63 21
120T-34 305 45 30 55 16
130T-34 330 40 27 55 15
140T-31 355 36 26 48 12
140T-34 355 31 20 53 10
150T-31 380 32 23 49 11
150T-34 380 23 13 55 6.5
165T-31 420 23 15 48 7

Our Factory

Shanghai SPRING Industrial Corporation as a professional manufacture of monofilament screen mesh, we have more than 30 years experience in this line since 1983. We have full size mesh from 18mesh to 500mesh with different width and colors can be provided. We have more than 150sets Sulzer Ruti P7100 and P7300 weaving machines to make sure the goods can be produced with good surface and high tension we use the best quality yarn from China also imported from Japan for high count mesh. The max width 390CM to make sure the width can satisfy the customers demand.
