High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt

High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt thumbnail-1
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt thumbnail-2
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt thumbnail-3
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt thumbnail-4
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt thumbnail-5
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt photo-1
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt photo-2
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt photo-3
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt photo-4
High Tension Polyester Silk Screen Printing Mesh for Pcb Glass Textile t Shirt photo-5
US$ 2 - 50 MOQ: 50 Meters
Key Specifications
Get Latest Price
Brand Name:
SPRING
Place of Origin:
China
Model Number:
DPP
Contact Supplier Request Quote Chat Now
Shanghai SPRING Silk Screen Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SPRING
Place of Origin China
Model Number DPP
Material 100% Polyester
Monofilament Style Yes
Mesh Count 25mesh-500mesh
Printing Silk Screen Printing
Elasticity Low
Weave Type Plain

Screen printing technology in the PCB Screen Printing manufacturing industry occupies an increasingly important position, its application not only improve the production efficiency of the PCB Board Printing, reduce the production cost of Printing On PCB, but also improve the processing quality of printed circuit boards. On the other hand, due to the research of screen printing materials, development and application, especially the development of functional inks, so that the application of screen printing more diversified.

Quick overview

1. Material: 100%Polyester

2. Shape of screen mesh fabric: Roll

3. Function: Printing

4. Mesh count: 25-500 mesh

5. Size available: standard and custom sizes

6. Characteristic :high tensity,low elongation,excellent dimensional stability

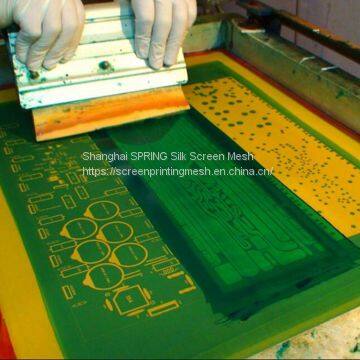

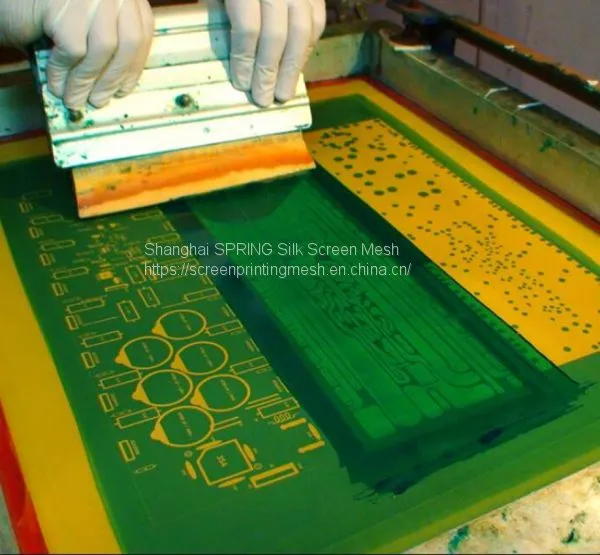

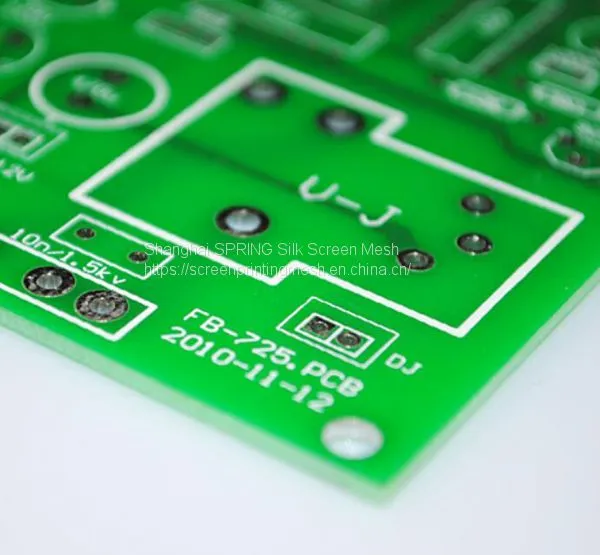

Screen Printing Mesh PCB Application:

Printed Circuit Board is widely used in the film switch manufacturing technology in the silver paste printing, SMT manufacturing technology in the solder paste printing and template manufacturing, Screen Printing Board PCB can be stripped of ink applications.




Screen Printing Mesh For Electronic PCB Board

Mesh(T)/cm-

wirediameter/μm

 mesh/inch Opening (μm) Open area(%) thickness(μm) Theoretical ink volume(cm3/㎡)
13T-150 33 619 64 300 128
21T-150 55 326 46 260 118
24T-100 60 316 57 136 65
24T-120 60 296 51 162 83
28T-140 70 217 40 195 76
32T-55 81 257 67 103 67
32T-100 81 212 45 165 73
36T-90 92 183 44 150 65
39T-55 100 177 56 88 55
39T-80 100 176 48 125 60
43T-80 110 149 41 130 53
47T-55 120 152 61 88 48
48T-70 122 133 41 115 47
53T-55 135 133 50 86 42
54T-64 137 115 39 100 39
59T-55 150 114 45 95 43
61T-64 155 90 31 101 30
61T-70 155 94 33 120 40
64T-55 160 98 38 98 36
64T-64 160 85 30 115 34
68T-55 175 85 34 85 28
72T-48 182 90 36 78 33
72T-55 182 85 30 90 27
77T-48 195 77 35 80 28
77T-55 195 67 27 88 24
80T-48 200 72 33 74 25
90T-48 230 56 25 78 19
100T-40 255 58 33 63 21
120T-34 305 45 30 55 16
130T-34 330 40 27 55 15
140T-31 355 36 26 48 12
140T-34 355 31 20 53 10
150T-31 380 32 23 49 11
150T-34 380 23 13 55 6.5
165T-31 420 23 15 48 7

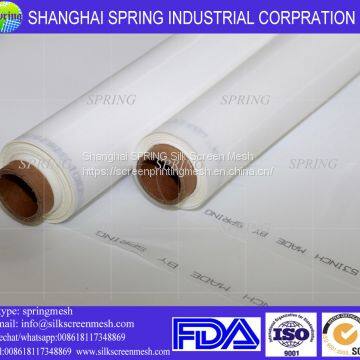

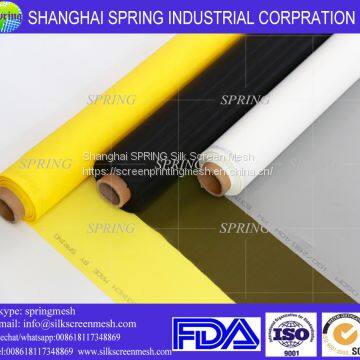

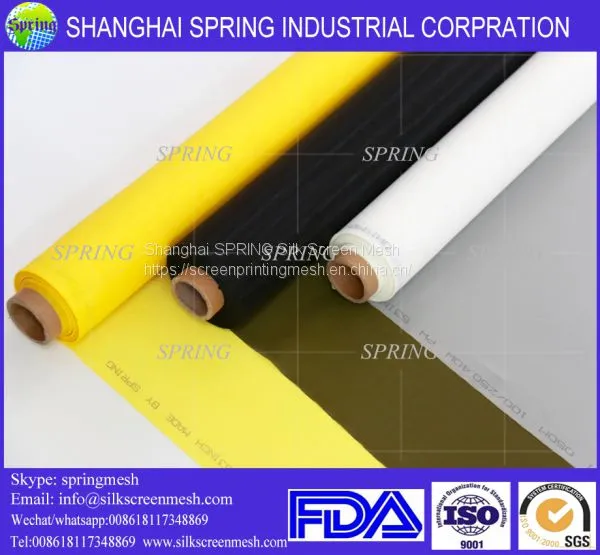

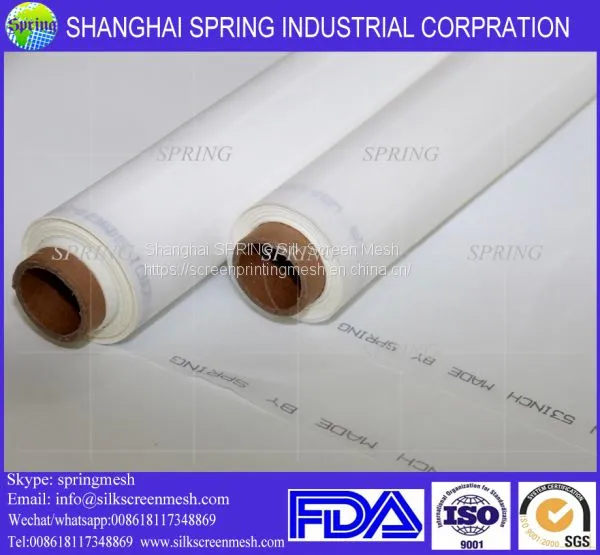

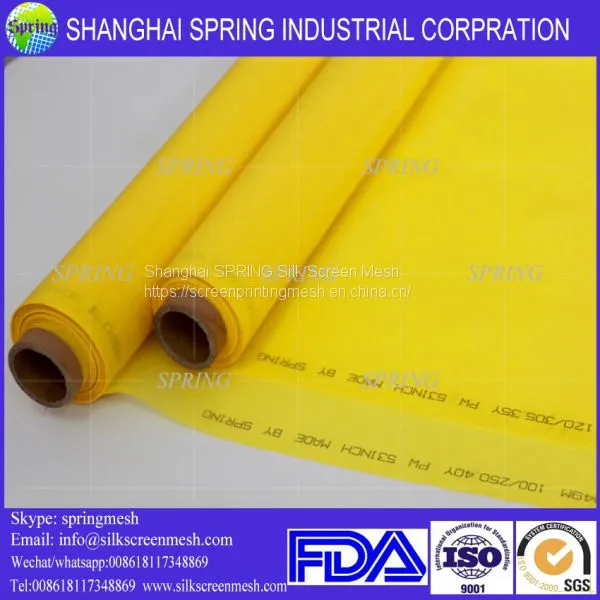

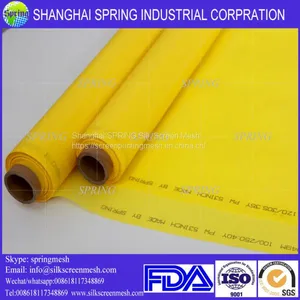

This 100% polyester mesh supply mesh mesh from 40 mesh to 420 mesh, as well as from 115 cm to 350 cm wide for your rich selection according to various requirements. There are white and yellow available. Mesh with a reasonable opening area of the mesh, increasing the adhesion of photosensitive adhesive, perfect ink permeability and strong tensile force. This 100% polyester screen is widely used in electronic components (PCB printing), textiles, ceramics, advertising industry such as printing, formwork construction and filtration and other fields.

We are screen printing mesh manufacturers

Shanghai SPRING Industrial Corporation as a professional screen printing mesh suppliers, we have more than 30 years experience in this line since 1983. We have full size mesh from 18mesh to 500mesh with different width and colors can be provided. We have more than 150sets Sulzer Ruti P7100 and P7300 weaving machines to make sure the goods can be produced with good surface and high tension we use the best quality yarn from China also imported from Japan for high count mesh. The max width 390CM to make sure the width can satisfy the customers demand.

Contact:

Sales Manager: Sara

Tel:0086-21-56011358

Mob/WhatsApp/wechat:0086-18117348869

Email: info@silkscreenmesh.com

Skype: springmesh

Twitter: springmesh

Facebook: /screenprintingmesh

Web:


Product Tags: screen printing mesh for pcb , polyester silk screen mesh , t shirt screen printing
