Longer Uselife Elegant Design industry vibration screen sieve shaker
USD $2300 - $5800
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Any port as your need
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
Product Details
Brand Name: | DaHan | Place of Origin: | China | Model Number: | DZSF-1224 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

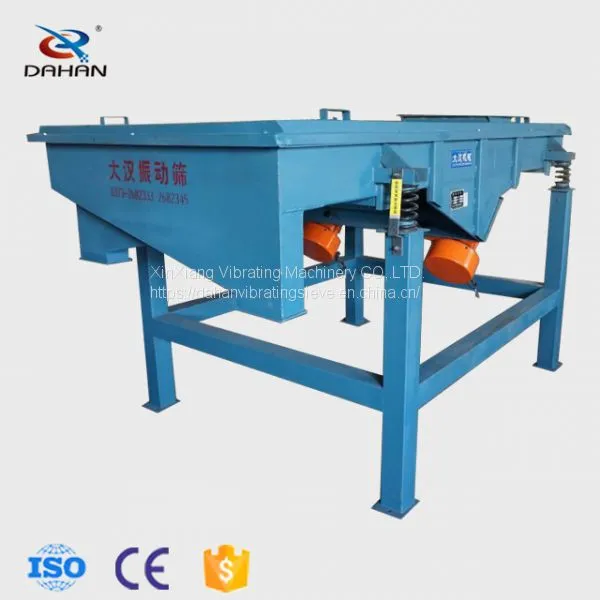

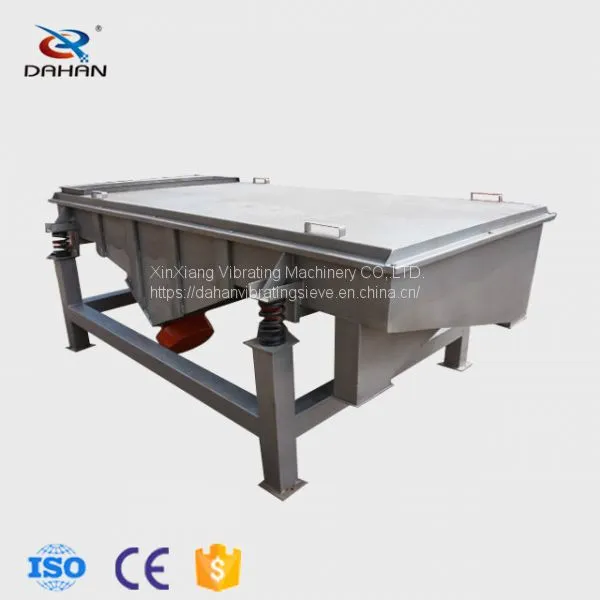

Linear Vibrating Screen
Linear vibrating screen vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while dorwaed in the straight line material evenly into the screening machine feeder feed port,multi-layer mesh specification of sieve,sieve material,respectively,discharged from their exports.with low power consumption,high yield,simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.
DZSF series linear vibrating screen make use of vibrating motor as vibration source. The material is thrown in the sieve, at the same time doing for linear movement of materials, making materials pass different screen sizes to discharge.
Technical Parameters | |||||||||
model | size of screen(mm) | Screen Layers | Mesh Size | Output capacity(t/h) | Vibration time | double-amplitude | Motor Power | Angle of oscillation | Outline Dimension(L*W*H,unit:mm) |
DZSF520-1 | 500×2000 | 1 | 2-200 | 0.05-5 | 960 | 6~7 | 2*0.37 | 45-60 | 2140*808*848 |
DZSF520-2 | 2 | 0.05-5 | 6~7 | 2*0.37 | 45-60 | 2199*808*878 | |||
DZSF520-3 | 3 | 0.03-5 | 4~6 | 2*0.37 | 45 | 2256*808*938 | |||
DZSF525-1 | 500×2500 | 1 | 0.06-8 | 5~7 | 2*0.37 | 45-60 | 2462*808*848 | ||
DZSF525-2 | 2 | 0.06-8 | 4~6 | 2*0.37 | 45 | 2699*808*878 | |||
DZSF525-3 | 3 | 0.06-8 | 6~8 | 2*0.55 | 45-60 | 2750*808*938 | |||
DZSF525-4 | 4 | 0.1-15 | 5~7 | 2*0.55 | 45 | 2813*808*1000 | |||
DZSF525-5 | 5 | 0.08-15 | 5~7 | 2*0.55 | 45 | 2883*808*1060 | |||
DZSF525-6 | 6 | 0.07-15 | 6~8 | 2*0.75 | 45-60 | 2953*808*1120 | |||
DZSF1020-1 | 1000*2000 | 1 | 0.12-20 | 6~8 | 2*0.55 | 45-60 | 2152*1320*900 | ||
DZSF1020-2 | 2 | 0.11-20 | 5~7 | 2*0.55 | 45-60 | 2219*1320*960 | |||
DZSF1020-3 | 3 | 0.10-2 | 5~7 | 2*0.75 | 45-60 | 2286*1320*1030 | |||
DZSF1020-4 | 4 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2353*1320*1100 | |||
DZSF1020-5 | 5 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2420*1320*1160 | |||
DZSF1020-6 | 6 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2487*1320*1220 | |||
DZSF1025-1 | 1000*2500 | 1 | 0.1-15 | 5~7 | 2*0.75 | 45 | 2203*1320*900 | ||
DZSF1025-2 | 2 | 0.18-15 | 5~7 | 2*0.75 | 45 | 2269*1320*960 | |||
DZSF1025-3 | 3 | 0.07-15 | 6~8 | 2*0.75 | 45-60 | 2336*1320*1030 | |||
DZSF830-1 | 800*3000 | 1 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3080*1098*1120 | ||
DZSF830-2 | 2 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3140*1098*1180 | |||
DZSF830-3 | 3 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3200*1098*1240 | |||
DZSF1030-1 | 1000*3000 | 1 | 0.1-20 | 6~8 | 2*0.75 | 45-60 | 3152*1340*1120 | ||
DZSF1030-2 | 2 | 0.1-20 | 6~8 | 2*1.1 | 45-60 | 3219*1340*1120 | |||
DZSF1030-3 | 3 | 0.1-20 | 6~8 | 2*1.1 | 45-60 | 3286*1340*1120 | |||
DZSF1224-1 | 1200*2400 | 1 | 0.1-23 | 6~8 | 2*1.1 | 45-60 | 2480*1520*1100 | ||
DZSF1224-2 | 2 | 0.1-23 | 6~8 | 2*1.1 | 45-60 | 2540*1520*1160 | |||
DZSF1224-3 | 3 | 0.1-23 | 6~8 | 2*1.5 | 45-60 | 2600*1520*1220 |
Working principle
Linear vibrating screen use vibration motor as vibration source,the materials is rosed and moved in the straight at the same time.The materials are entered into entrance equality,and then go through screen to create the material with different sizes,which was discharged,from different gates.It is suitable for low consuming,high output,and simple structure,easily maintain all-closed structure,no powder dispersed,automobile diacharged.
Packing way
We offer free, Professional,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
Delivery way
We usually use international well-known logistics companies,according to your shipping address. If you have a designated forwarder company, please let us know.
FAQ:
Q:What is the real delivery time of your factory?
A:7 to 10 working days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general aftersale serve.
