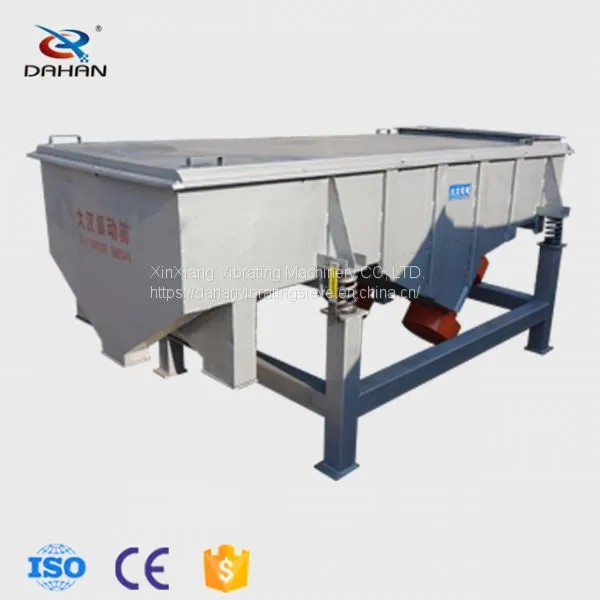

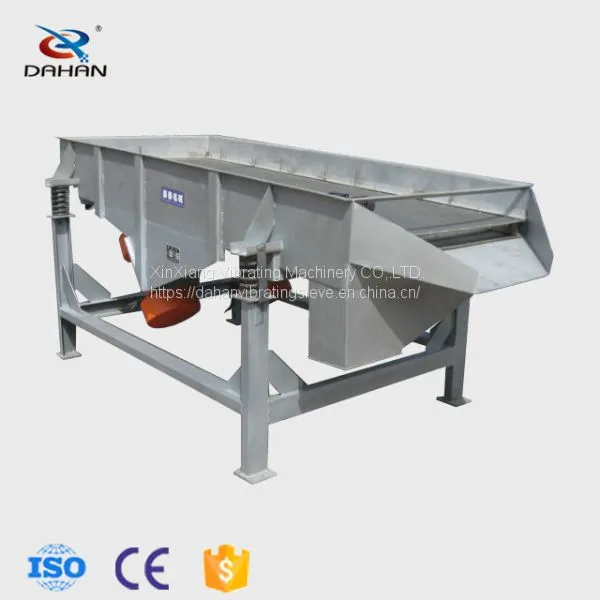

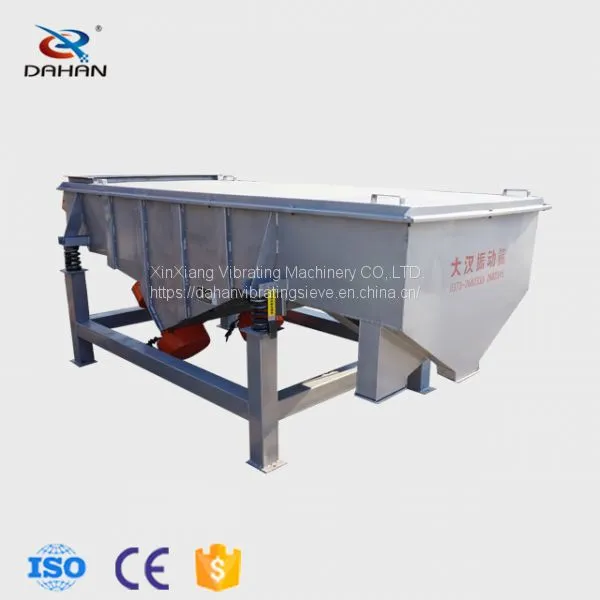

2018 Automatic Vibrating Sieve Screening/sifting/filtering Type Vibrating Sifting Machine
US$ 1230 - 5800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DaHan
Place of Origin:
China
Model Number:
DZSF-1020
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port as your need
Delivery Detail:
10 days
Related Products
-
Longer Uselife Elegant Design Industry Vibration Screen Sieve ShakerUS$ 2300 - 5800MOQ: 1 Set -
High Quality Widely Used 2017 Automatic Vibrating Sieve Mini Linear Vibrating ScreenUS$ 1230 - 5800MOQ: 1 Set
-
DaHan Low Noise Linear Vibration Screen Separating MachineUS$ 1230 - 5800MOQ: 1 Set
-
High Accuraacy Flour Vibrating Separator Grading Vibrating Separator Machine For SaleUS$ 1230 - 5800MOQ: 1 Set
-
High Accuraacy Double Deck Powder Sieving Machine Linear Vibration ScreenUS$ 1230 - 5800MOQ: 1 Set
Brand Name
DaHan
Place of Origin
China
Model Number
DZSF-1020
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Linear Vibrating Screen
Linear vibrating screen vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while dorwaed in the straight line material evenly into the screening machine feeder feed port,multi-layer mesh specification of sieve,sieve material,respectively,discharged from their exports.with low power consumption,high yield,simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.
DZSF series linear vibrating screen make use of vibrating motor as vibration source. The material is thrown in the sieve, at the same time doing for linear movement of materials, making materials pass different screen sizes to discharge.
| Technical Parameters | |||||||||
| model | size of screen（mm） | Screen Layers | Mesh Size | Output capacity（t/h) | Vibration time | double-amplitude | Motor Power | Angle of oscillation | Outline Dimension(L*W*H,unit:mm) |
| DZSF520-1 | 500×2000 | 1 | 2-200 | 0.05-5 | 960 | 6~7 | 2*0.37 | 45-60 | 2140*808*848 |
| DZSF520-2 | 2 | 0.05-5 | 6~7 | 2*0.37 | 45-60 | 2199*808*878 | |||
| DZSF520-3 | 3 | 0.03-5 | 4~6 | 2*0.37 | 45 | 2256*808*938 | |||
| DZSF525-1 | 500×2500 | 1 | 0.06-8 | 5~7 | 2*0.37 | 45-60 | 2462*808*848 | ||
| DZSF525-2 | 2 | 0.06-8 | 4~6 | 2*0.37 | 45 | 2699*808*878 | |||
| DZSF525-3 | 3 | 0.06-8 | 6~8 | 2*0.55 | 45-60 | 2750*808*938 | |||
| DZSF525-4 | 4 | 0.1-15 | 5~7 | 2*0.55 | 45 | 2813*808*1000 | |||
| DZSF525-5 | 5 | 0.08-15 | 5~7 | 2*0.55 | 45 | 2883*808*1060 | |||
| DZSF525-6 | 6 | 0.07-15 | 6~8 | 2*0.75 | 45-60 | 2953*808*1120 | |||
| DZSF1020-1 | 1000*2000 | 1 | 0.12-20 | 6~8 | 2*0.55 | 45-60 | 2152*1320*900 | ||
| DZSF1020-2 | 2 | 0.11-20 | 5~7 | 2*0.55 | 45-60 | 2219*1320*960 | |||
| DZSF1020-3 | 3 | 0.10-2 | 5~7 | 2*0.75 | 45-60 | 2286*1320*1030 | |||
| DZSF1020-4 | 4 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2353*1320*1100 | |||
| DZSF1020-5 | 5 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2420*1320*1160 | |||
| DZSF1020-6 | 6 | 0.07-15 | 4~8 | 2*0.75 | 45-60 | 2487*1320*1220 | |||
| DZSF1025-1 | 1000*2500 | 1 | 0.1-15 | 5~7 | 2*0.75 | 45 | 2203*1320*900 | ||
| DZSF1025-2 | 2 | 0.18-15 | 5~7 | 2*0.75 | 45 | 2269*1320*960 | |||
| DZSF1025-3 | 3 | 0.07-15 | 6~8 | 2*0.75 | 45-60 | 2336*1320*1030 | |||
| DZSF830-1 | 800*3000 | 1 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3080*1098*1120 | ||
| DZSF830-2 | 2 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3140*1098*1180 | |||
| DZSF830-3 | 3 | 0.1-20 | 6~8 | 2*0.55 | 45-60 | 3200*1098*1240 | |||
| DZSF1030-1 | 1000*3000 | 1 | 0.1-20 | 6~8 | 2*0.75 | 45-60 | 3152*1340*1120 | ||
| DZSF1030-2 | 2 | 0.1-20 | 6~8 | 2*1.1 | 45-60 | 3219*1340*1120 | |||
| DZSF1030-3 | 3 | 0.1-20 | 6~8 | 2*1.1 | 45-60 | 3286*1340*1120 | |||
| DZSF1224-1 | 1200*2400 | 1 | 0.1-23 | 6~8 | 2*1.1 | 45-60 | 2480*1520*1100 | ||
| DZSF1224-2 | 2 | 0.1-23 | 6~8 | 2*1.1 | 45-60 | 2540*1520*1160 | |||
| DZSF1224-3 | 3 | 0.1-23 | 6~8 | 2*1.5 | 45-60 | 2600*1520*1220 | |||
Working principle
Linear vibrating screen use vibration motor as vibration source,the materials is rosed and moved in the straight at the same time.The materials are entered into entrance equality,and then go through screen to create the material with different sizes,which was discharged,from different gates.It is suitable for low consuming,high output,and simple structure,easily maintain all-closed structure,no powder dispersed,automobile diacharged.
Packing way
We offer free, Professional,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
Delivery way
We usually use international well-known logistics companies,according to your shipping address. If you have a designated forwarder company, please let us know.
FAQ:
Q:What is the real delivery time of your factory?
A:7 to 10 working days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general aftersale serve.
