2.Technical Data of eps foam production line making machine
| SPB200-800DF eps foam production line making machine | ||||||
| Item | SPB200DF | SPB300DF | SPB400DF | SPB600DF | SPB800DF | |
| Mould Cavity Size |
2040*1240 *630(mm) |
3060*1240 *630(mm) |
4080*1240 *630(mm) |
6100*1240 *630(mm) |
8120*1240 *630(mm) |
|
| Block Size |
2000*1200 *600(mm) |
3000*1200 *600(mm) |
4000*1200 *600(mm) |
6000*1200 *600(mm) |
8000*1200 *600(mm) |
|
| Steam |
Entry Consumption Pressure |
DN65 20~30kg/cycle 0.8Mpa |
DN65 30~40kg/cycle 0.8Mpa |
DN65 45~55kg/cycle 0.8Mpa |
DN65 60~70kg/cycle 0.8Mpa |
DN65 80~100kg/cycle 0.8Mpa |
| Compressed Air |
Entry Consumption Pressure |
DN40 1.5~2m3/cycle 0.6Mpa |
DN40 1.8~2.2m3/cycle 0.6Mpa |
DN40 2~2.5m3/cycle 0.6Mpa |
DN40 2~3m3/cycle 0.6Mpa |
DN40 2.5~3m3/cycle 0.6Mpa |
| Drainage |
Steam vent Blower outlet |
DN100 DN125 |
DN125 DN125 |
DN200 DN150 |
DN200 DN150 |
DN200 DN150 |
| Throughput | 15kg/m3 | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle | 8min/cycle |
| Connected Load | 9.5KW | 9.5KW | 13KW | 13KW | 13KW | |
| Overall Dimension |
4000*2150 *2120(mm) |
5030*2270 *2120(mm) |
6040*2270 *2250(mm) |
8100*2500 *3100(mm) |
11300*2600 *3300(mm) |
|
| Weight | 4200kg | 600kg | 8500kg | 9500kg | 13800kg | |
| Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | |
Note:We can make eps foam production line making machine according to customer`s requirement. | ||||||
3.Features of eps foam production line making machine

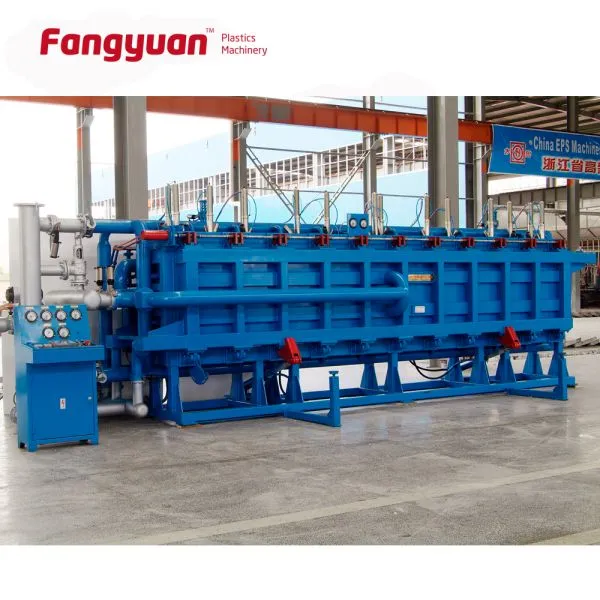

1. Eps block molding machine structure:
a, The sandwich panel making machine mold are welded by strong rectangle tube and steel plate make high strength to keep
more safety of the machine;
b, All block mold frames are treated by heat-treatment to release the welding stress, so that the frames would not deformed;
c, After heating treatment, all mold frames are processed by sand blasting treatment to keep the rust away, then under coat and finishing coat are greatly improved anticorrosion performance and long life;
d, Adopts three Germany gauges and safety valve for multi-safety protection. The machine will be tested by water pressure and steam (many steps), ensure the machine more stable and safety.
2.Steam system:Three ball valves, comparing one big steam valve, saves 20% steam, with ISOstandard butterfly valves, greatly improve stability and long life;
3.Control system:
a, Adopts PLC( Mitsubishi) and touch screen ( Schneider) for an easy operation;
b, Equipped material level sensor to control the filling. The block cooling is controlled by foam pressure sensor, The whole procedure for filling, heating, cooling will be automatically by PLC.
CE certificate, ISO9001:2008

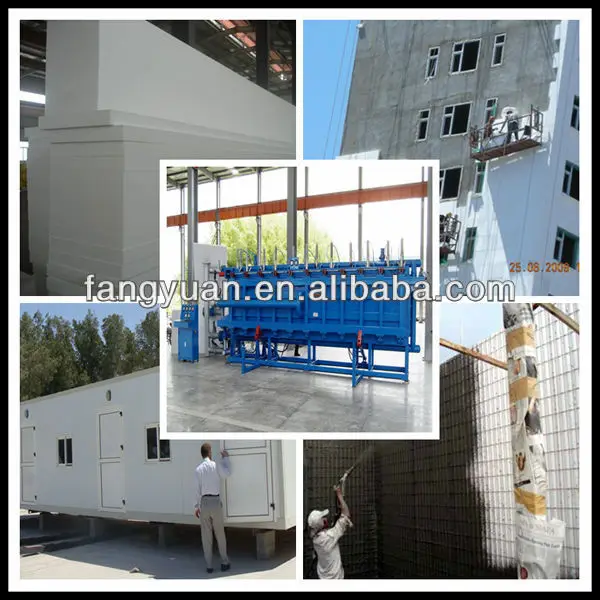

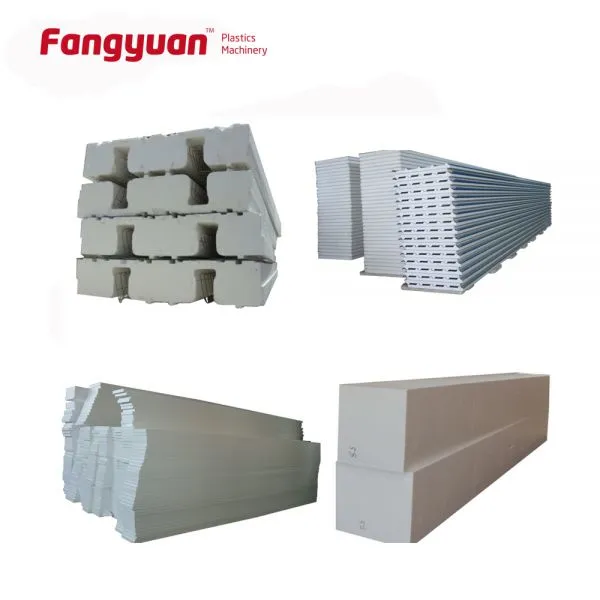

4.Application of eps foam production line making machine

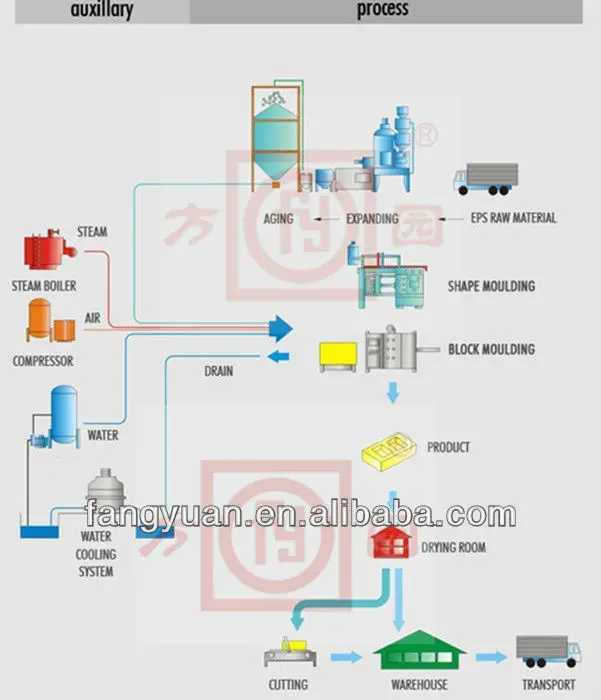

5.EPS product process
6.The product processing of sandwich panel making machine
7.Certificate
Packing: standard exporting package
Shipping port: shanghai/ningbo
WE can provided this service
1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5. 1 year free warranty, Lifetime technical service support.

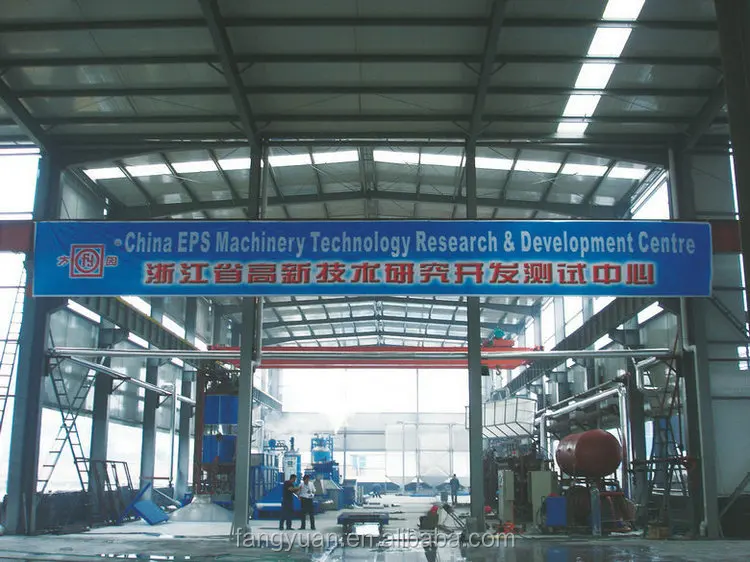

Hangzhou Fangyuan Plastics Machinery Co.,Ltd is a professional EPS ,EPPMachinery manufacturer integrating R&D, production, sales and service.
1.Established in 1988, with the 27 years of development ,Fangyuan has development more than 10 offices inside and outside of China, with over 700 staff and covered 100,000 sqm2 workshop.
2.Yearly around 2200 sets machines and 2000 sets EPS moulds outputs, which keep Fangyuan as the leading EPS,XPS,EPP Machinery manufacturer in China.
3.Fangyuan is the first drafter of National Standard of EPS machinery in China; And obtained the ISO9001-2008 and European Standard CE certification.
4.Fangyuan brand was authorized as "China Famous Brand"and "China High Technology Enterprise"
