Help CenterFangyuan Eps Foam Plastic Box Machine With High Speed
Related Products
-
Fangyuan Eps Foam Production Line Making Machine for Eps Panel Polystyrene Building BlockUS$ 32500 - 60000MOQ: 1 Set -
Fangyuan Excellent Quality Eps Expandable Polystyrene ManufacturersUS$ 26000 - 100000MOQ: 1 Set
-
EPS Block Cutting MachineUS$ 5000 - 7700MOQ: 1 Set
-
Automatic High Quality Eps Foam Plastic MachineUS$ 13,700 - 137,000MOQ: 1 Set
-
EPS Foamed Plastic MachineNegotiableMOQ: 1 Set

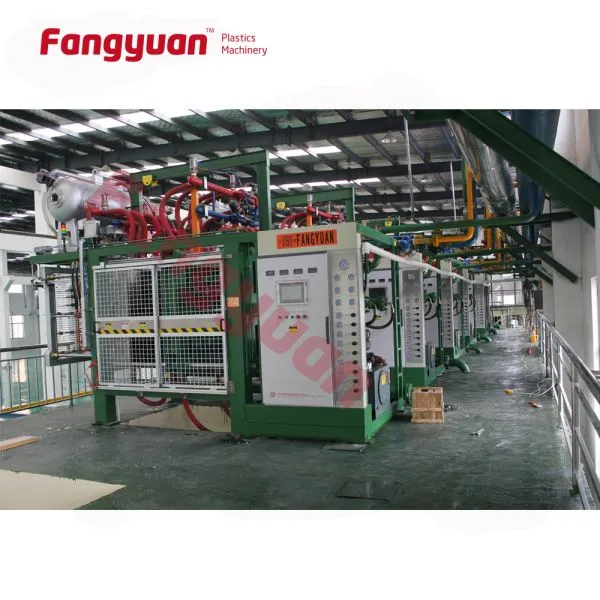

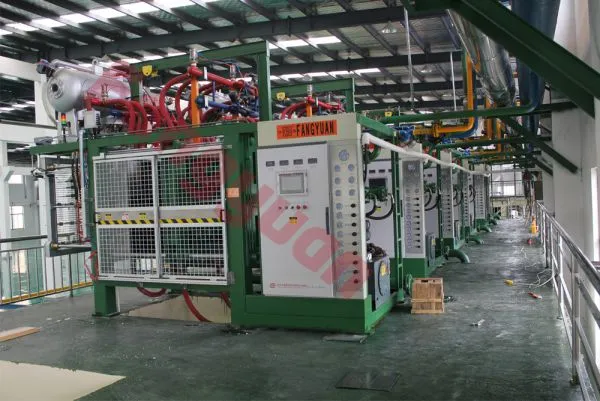

1.Pictures of eps foam plastic machine
2.Technical Data of eps foam plastic machine
| SPZ100-200E eps foam plastic machine | ||||||||
| Item | unit | SPZ100E | SPZ120E | SPZ140E | SPZ160E | SPZ175E | SPZ180E | SPZ200E |
| Max Product Dimension | mm |
800*600 *350 |
1000*800 *350 |
1200*1000 *350 |
1400*1100 *350 |
1550*1200 *350 |
1610*1400 *350 |
1850*1600 *350 |
| Stroke | mm | 220-1470 | 220-1470 | 220-1470 | 220-1470 | 220-1470 | 220-1470 | 220-1470 |
| Steam entry | mm | DN80 | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 |
| Water Entry | mm | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | DN80 |
| Cooling water Consunption | kg/cycle | 40-120 | 45-140 | 50-150 | 55-180 | 60-190 | 80-200 | 90-210 |
| Compresswd Air Entry | mm | DN25 | DN40 | DN40 | DN40 | DN40 | DN50 | DN50 |
| Compressed Air Consumption | m3/cycle | 1.2 | 1.5 | 1.8 | 2 | 2 | 2.2 | 2.5 |
| Vacuum Pump Capacity | m3/h | 165 | 165 | 230 | 280 | 280 | 280 | 280 |
| Connected Load | KW | 11 | 11 | 14.5 | 14.5 | 14.5 | 20 | 20 |
| Overall Dimension | mm |
4800*1850 *2970 |
4800*2050 *3170 |
4970*2250 *3370 |
4970*2440 *3430 |
4970*2590 *3530 |
5100*2700 *3830 |
5100*2900 *4030 |
| Weihgt | kg | 4200 | 4800 | 5500 | 5800 | 6200 | 6500 | 7000 |
| Note:We can make plastic box machine according to customer`s requirement. | ||||||||
3.Features of eps foam plastic machine
Successful tests reaffirmed that E series automatic shape molding machines obtain the consistent high praise from the customers because of high efficiency, energy saving and stability.
The advantages as follows:
1.High-strength frame, mouding frame has being treated with zinc spraying,
adopts apposite directions type tie bar for easy maintenance and wear resistance self-lubricating copper tube.
2.Hydraulic pressure system achieves faster operation (save 6S/cycle).
3.Steam system(ensure stable and less steam consumption), adopts FANGYUAN patented PID system made by DN50 actuator makes the sensitive steam pressure control.
4. Pipe system: completely inlet and exit of water ,air and steam adopt big pipeline and valves which is very close to the mold.
5.Vacuum system:adopting vertical vacuum system, vacuum tank equip with a big spraying system.
6.Control system: all parts adopt famous international brands with high quality. All pressure adjustment are remote controlled by control box, the program also has many self-protection and alarm systems.

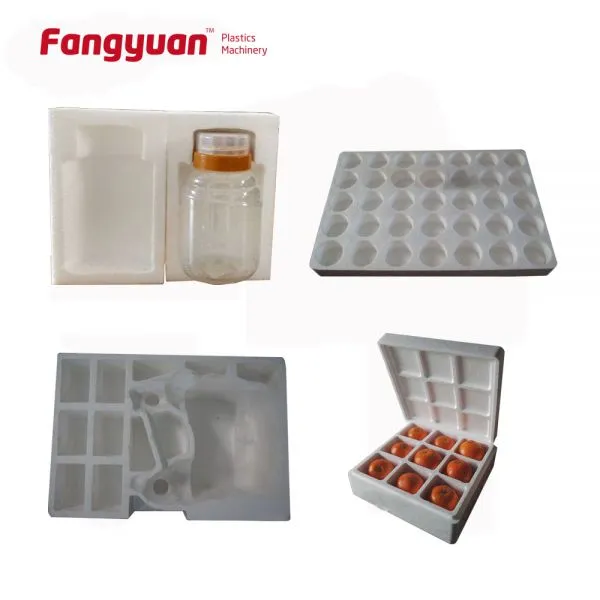

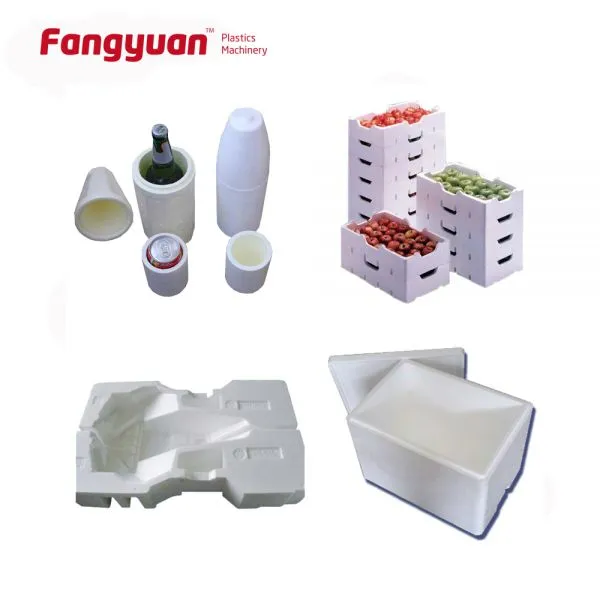

Various applications in agricultural and electronic parts packaging,
such as fish box, ICF, insert, decoration parts, helmet, model, etc..
ISO9001:2008,CE

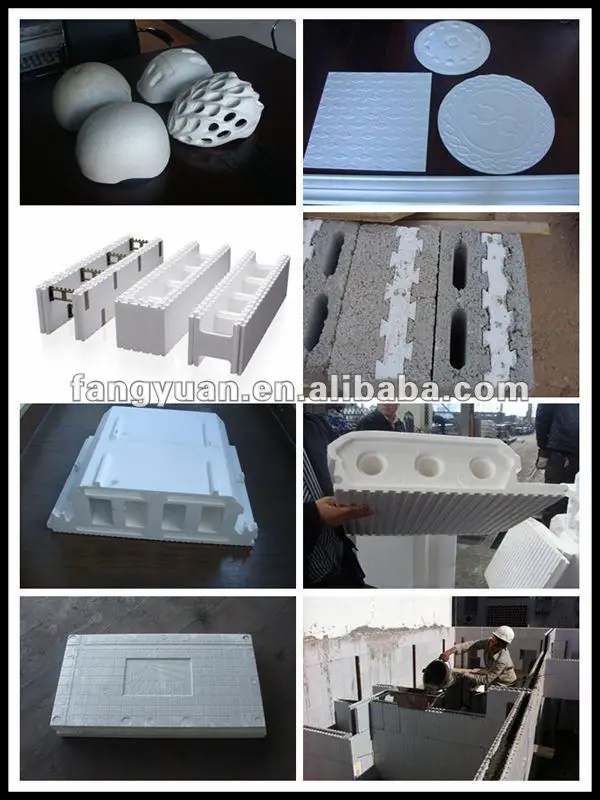

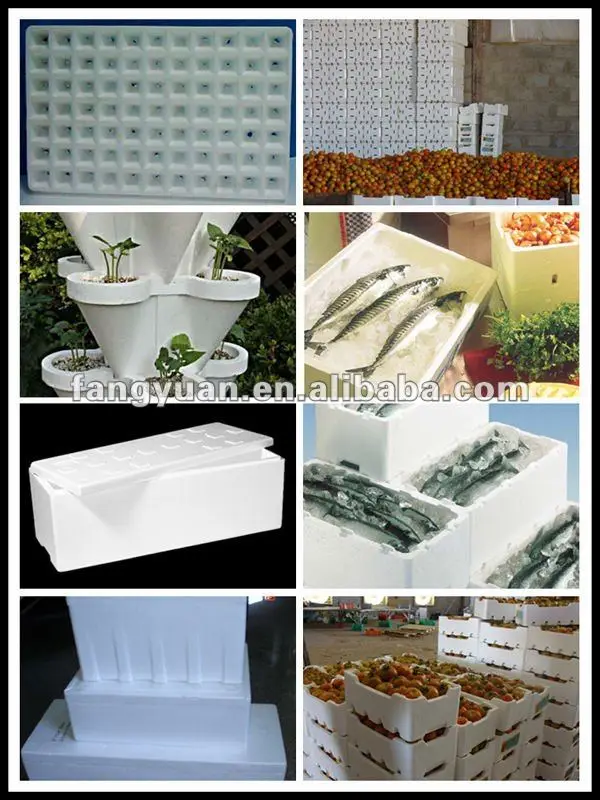

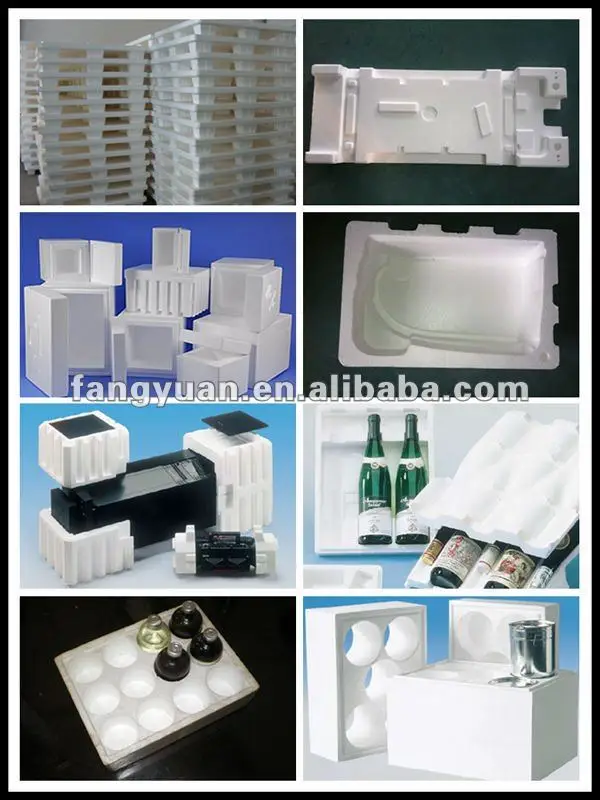

4.Application of eps foam plastic machine
5. The product processing of eps foam plastic machine
6.Certificate
Packing: standard exporting package
Shipping port: shanghai/ningbo
WE can provided this service
1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5. 1 year free warranty, Lifetime technical service support.
Hangzhou Fangyuan Plastics Machinery Co.,Ltd is a professional EPS ,EPPMachinery manufacturer integrating R&D, production, sales and service.
1.Established in 1988, with the 27 years of development ,Fangyuan has development more than 10 offices inside and outside of China, with over 700 staff and covered 100,000 sqm2 workshop.
2.Yearly around 2200 sets machines and 2000 sets EPS moulds outputs, which keep Fangyuan as the leading EPS,XPS,EPP Machinery manufacturer in China.
3.Fangyuan is the first drafter of National Standard of EPS machinery in China; And obtained the ISO9001-2008 and European Standard CE certification.
4.Fangyuan brand was authorized as "China Famous Brand"and "China High Technology Enterprise"
