ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank

ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank thumbnail-1

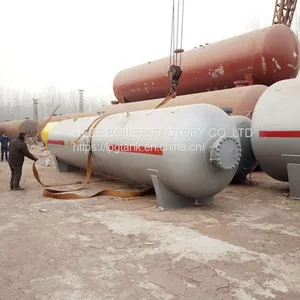

ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank thumbnail-2
ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank thumbnail-3

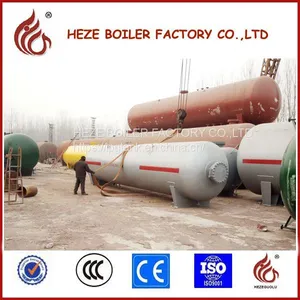

ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank thumbnail-4
ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank photo-1
ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank photo-2

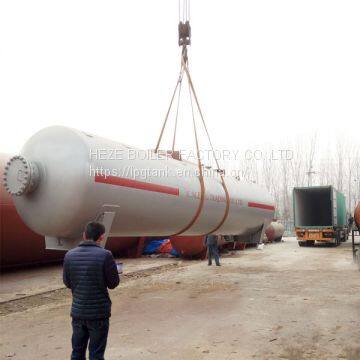

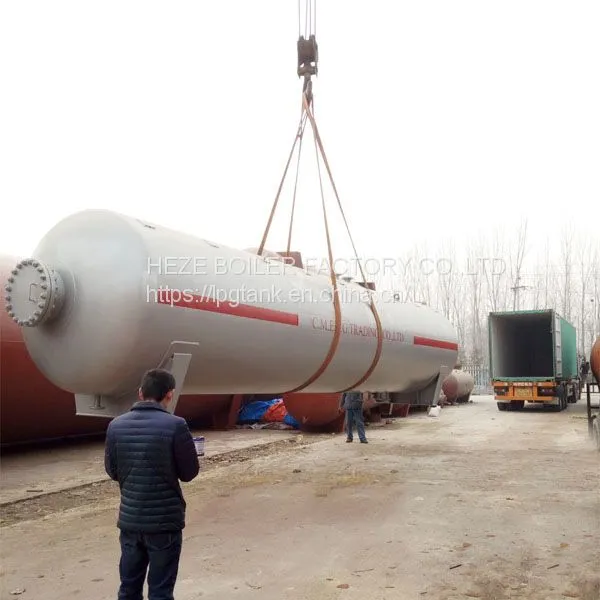

ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank photo-3

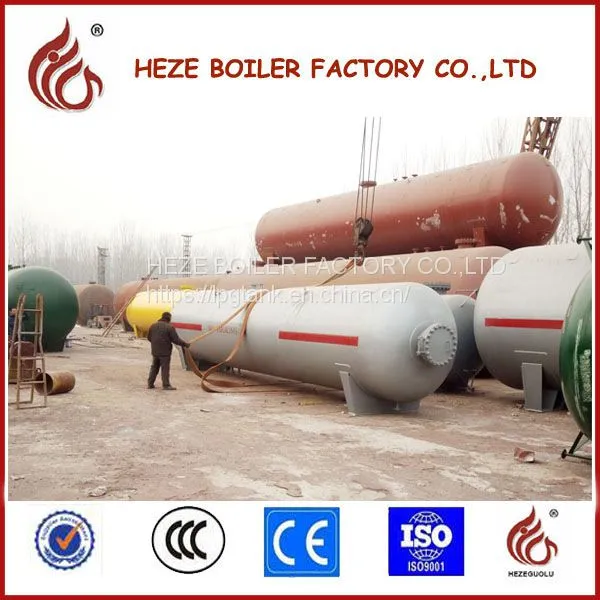

ISO9001 Propane Tank 20m3 30m3 40m3 50m3 Lpg Storage Tank photo-4
US$ 11880 - 18810 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HEGUO
Place of Origin:
China
Model Number:
HGR16-329
Contact Supplier Request Quote Chat Now
Shandong Zhongjie Pressure Equipment Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port, Tianjin Port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HEGUO
Place of Origin China
Model Number HGR16-329
After-sales Service Provided Engineers available to service machinery overseas
Weight 6870kgs
Dimension(L*W*H) DN2000*8850
Condition New
Capacity 30000L

Design,manufacturing,test standard for LPG Tank



1.TSG R004-2009《Fixed pressure vessels safety and technical supervision regulation》

2.GB150.1~150.4-2001《pressure vessel》

3.NB/T47015-2011《welding specification for pressure vessels》

4.JB/T4730-2005《Nondestructive Testing of Pressure equipment》

5.GB/T30583-2014《pressure equipment heat treatment after welding procedures》



LPG Tank Summary



With particular emphasis on: strict compliance "Safety Technology Supervision of Stationary Pressure Vessels" to determine the maximum allowable working pressure 1.82MPa, all products in accordance with 1.82MPa pressure to conduct strength calculation than any other company 1.77MPa pressure calculation.



In material procurement, the factory strictly control the process:

1. Our all vendors evaluated the quality of each year, to ensure the quality of suppliers;

2. The main pressure materials are used special materials of pressure equipment.

3. 100% steel ultrasonic re-inspection;

4. Product pipeline operations, improve construction efficiency, and to guarantee effective control of each step of the self-test and check points;

5. Product main welding are used inside and outside the automatic welding, forming and welding safeguard internal quality;

6. All pressure parts are full penetration welded structure, ensure welding strength;

7. All LPG tanks are overall stress relief heat treatment. The company has two gas-fired heat treatment furnace as a whole, the largest single party processing capacity of 300 tanks (DN≤4000mm, L total ≤25000mm)



Test (each test point)

1. During manufacturing process, from raw materials to the factory to factory inspection, test settings for each stopping point, effective control of product quality;

2. All main welds 100% X-ray inspection, pipe connecting, welded flange C.D class 100% surface inspection testing to ensure the quality of welding. The company set up NDT room and has certified testing personnel at all levels;

3. The hydraulic test one by one, to ensure the strength of the safety device. tightness test to ensure the sealing performance of the device. After the pressure test, the connections of tank accessories are tested against leakage, using nitrogen.

4. The ultrasonic thickness measurement, to ensure that the parts forming the minimum thickness (especially the head).

5.tanks are blasting cleaning and coated with premium quality paint, primer and finish coat twice.





Ground LPG Tank Parameters

NO.

Model

Volume (M3)

Design pressure/

Design temperature

Shell size / head thickness

(MM)

1

WG1.77-1100-3.5

3.5

    1.77MPa/ -20~54℃

DN1100*3270*/8/8

2

WG1.77-1200-5

5

1.77MPa/ -20~54℃

DN1200*3980*/8/8

3

WG1.77-1400-5

5

1.77MPa/ -20~54℃

DN1400*2750*10/10

4

WG1.77-1400-10

10

1.77MPa/ -20~54℃

DN1400*5980*10/10

5

WG1.77-1600-10

10

1.77MPa/ -20~54℃

DN1600*4400*10/10

6

WG1.77-1800-15

15

1.77MPa/ -20~54℃

DN1800*5250*12/12

7

WG1.77-2000-20

20

1.77MPa/ -20~54℃

DN2000*5650*12/12

8

WG1.77-2000-25

25

1.77MPa/ -20~54℃

DN2000*7250*12/12

9

WG1.77-2200-25

25

1.77MPa/ -20~54℃

DN2200*5800*12/14

10

WG1.77-2000-30

30

1.77MPa/ -20~54℃

DN2000*8850*12/12

11

WG1.77-2200-30

30

1.77MPa/ -20~54℃

DN2200*7100*12/14

12

WG1.77-2400-30

30

1.77MPa/ -20~54℃

DN2400*5800*14/14

13

Wg1.77-2400-40

40

1.77MPa/ -20~54℃

DN2400*8000*14/14

14

WG1.77-2600-40

40

1.77MPa/ -20~54℃

DN2600*6600*14/16

15

WG1.77-2400-50

50

1.77MPa/ -20~54℃

DN2400*10200*14/14

16

WG1.77-2600-50

50

1.77MPa/ -20~54℃

DN2600*8500*14/14

17

WG1.77-2600-50

50

1.77MPa/ -20~54℃

DN2600*8500*14/16

18

WG1.77-2800-50

50

1.77MPa/ -20~54℃

DN2800*7110*16/16

19

WG1.77-3000-50

50

1.77MPa/ -20~54℃

DN3000*6000*16/18

20

WG1.77-2600-60

60

1.77MPa/ -20~54℃

DN2600*10360*14/16

21

WG1.77-2800-60

60

1.77MPa/ -20~54℃

DN2800*8740*16/16

22

WG1.77-2800-80

80

1.77MPa/ -20~54℃

DN2800*12000*16/16

23

WG1.77-3000-80

80

1.77MPa/ -20~54℃

DN3000*10250*16/18

24

WG1.77-3200-80

80

1.77MPa/ -20~54℃

DN3200*8800*18/18

25

WG1.77-2800-100

100

1.77MPa/ -20~54℃

DN2800*15300*16/16

26

WG1.77-3000-100

100

1.77MPa/ -20~54℃

DN3000*13200*16/18

27

WG1.77-3000-100

100

1.77MPa/ -20~54℃

DN3000*13200*16/18

28

WG1.77-3200-100

100

1.77MPa/ -20~54℃

DN3200*11300*18/18

29

WG1.77-3400-100

100

1.77MPa/ -20~54℃

DN3400*9850*20/20

30

WG1.77-3600-100

100

1.77MPa/ -20~54℃

DN3600*8550*20/22

31

WG1.77-3600-120

120

1.77MPa/ -20~54℃

DN3600*10500*20/22

32

WG1.77-3600-150

150

1.77MPa/ -20~54℃

DN3600*13500*20/22

33

WG1.77-3800-200

200

1.77MPa/ -20~54℃

DN3800*16300*22/22
