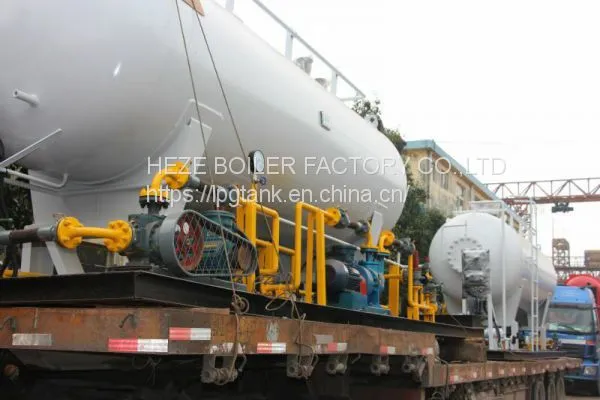

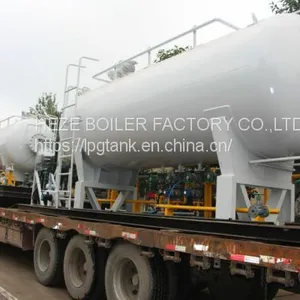

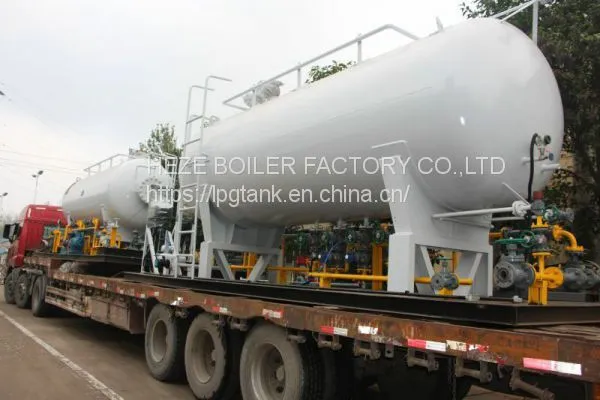

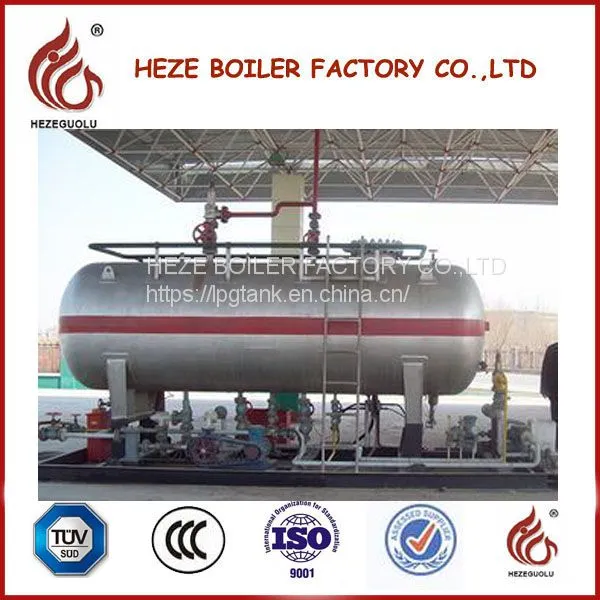

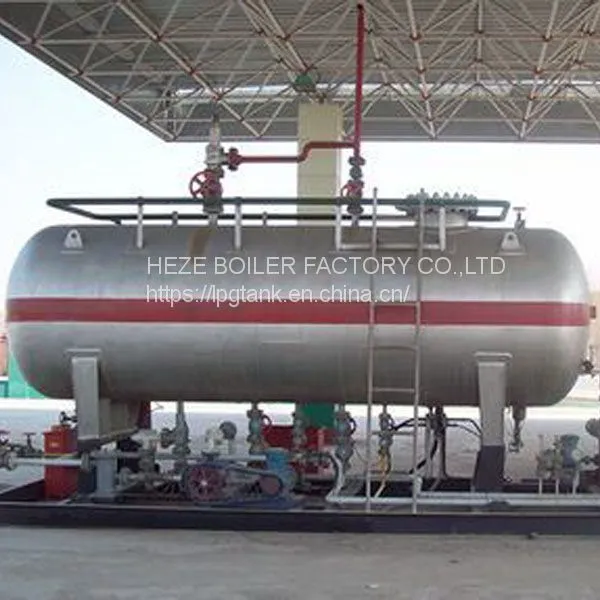

20m3 capacity mobile skid lpg filling plant with lpg tank,pump

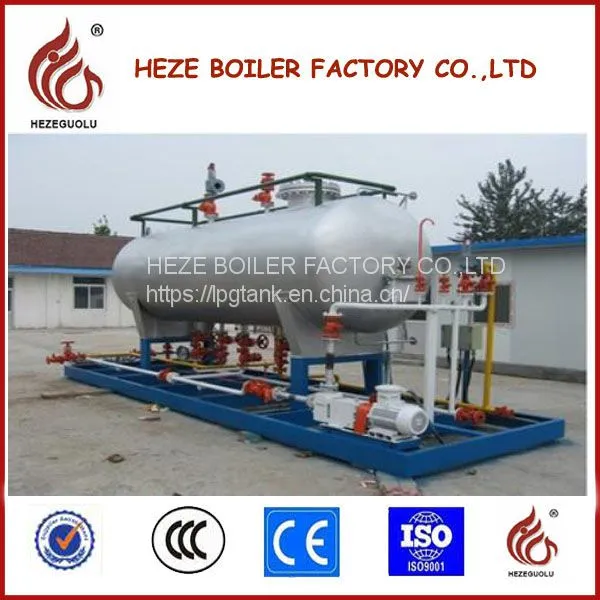

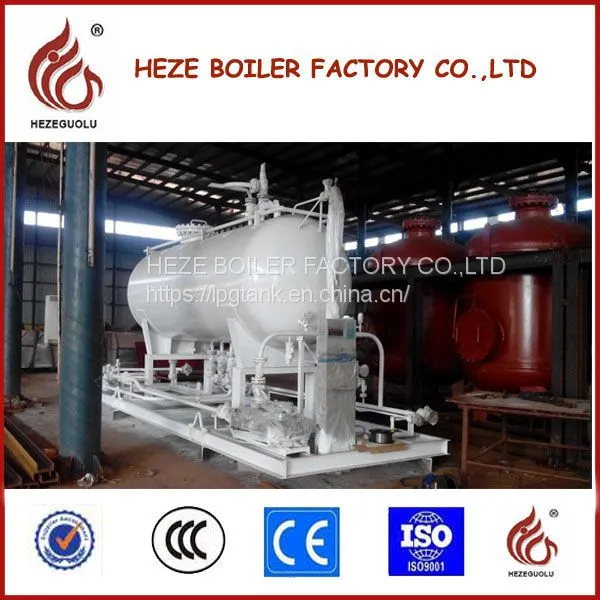

Skid mounted station make the lpg storage tanks, pumps, valves, instruments, equipment, etc. assembled on the formation of the overall filling station. As long as the user leveling the floor, hoisting in place, the tank filling liquid, access to power, immediately will open to use.
Advantages: small investment, short cycle, quick, easy to move, especially in the rapid development of the city today, more flexibility. it equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions;
Design,Manufacturing,Test standard of LPG Tank
1.TSG R004-2009《Fixed pressure vessels safety and technical supervision regulation》
2.GB150.1~150.4-2001《pressure vessel》
3.NB/T47015-2011《welding specification for pressure vessels》
4.JB/T4730-2005《Nondestructive Testing of Pressure equipment》
5.GB/T30583-2014《pressure equipment heat treatment after welding procedures》
Technical Parameter of 20M3 LPG Tank
Volume of LPG Tank |
20,000litres |
Medium |
LPG |
Density of medium |
560kg/m3 |
Filling coefficient |
0.90 |
Design pressure |
1.77MPa |
Working pressure |
1.63MPa |
Design temperature |
-20℃~+54℃ |
Shell thickness |
12mm |
Head thickness |
12mm |
Main materials |
Q345R |
Weigh in theory |
4965KG |
Total length of tank |
6747mm |
Corrosion allowance |
1mm |
Hydrostatic test pressure |
2.28MPa |
Air tightness test pressure |
1.77MPa |
Design using life |
20years |
Heat treatment |
Whole tank post weld heat treatment |
Manufacturer |
HEZE BOILER FACTORY CO.,LTD
|

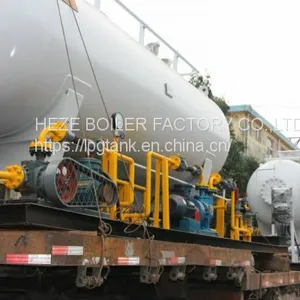

The standard configuration of lpg skid station include lpg tank, valves,two sets pump,unloading hose,gas alarm, anti-static,skid base,electricity,one piece filling scale. If need other machine, will need additional fee.
Brief Introduction of Heze Boiler Factory
Heze Boiler Factory Co.,Ltd was founded in 2003, specialized in boiler, pressure vessel and we are designated enterprise of B-grade boilers and Ⅲ-grade pressure vessel that is approved by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.
Our factory have the biggest 200CBM LPG tank annealing furnace in China, large-scale shot-blast room, advanced management mechanism, high-class raw material management and control system, with senior welders skill, make us to be one of the biggest LPG storage tank production base of China.
We keep improving our products, build our own brand, pursue the best quality with safety first. Welcome friends all over the world come and visit our factory!
