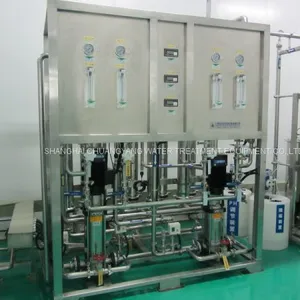

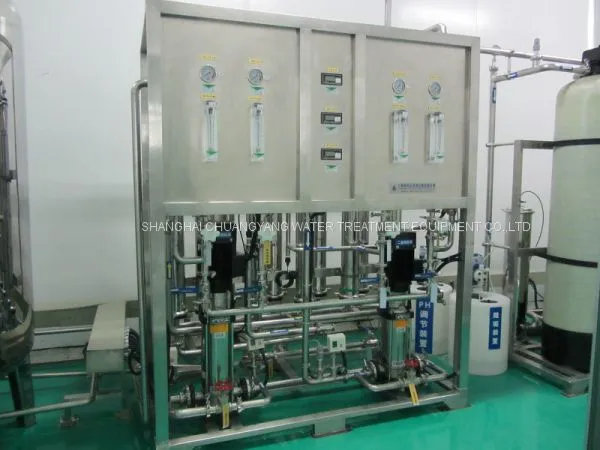

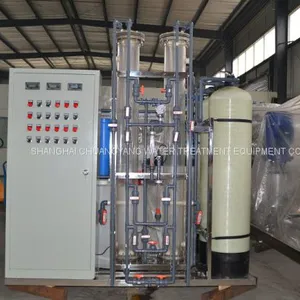

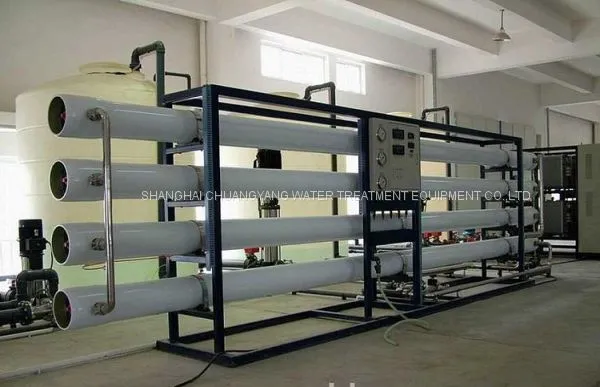

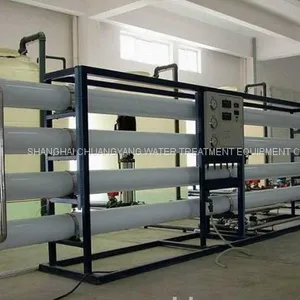

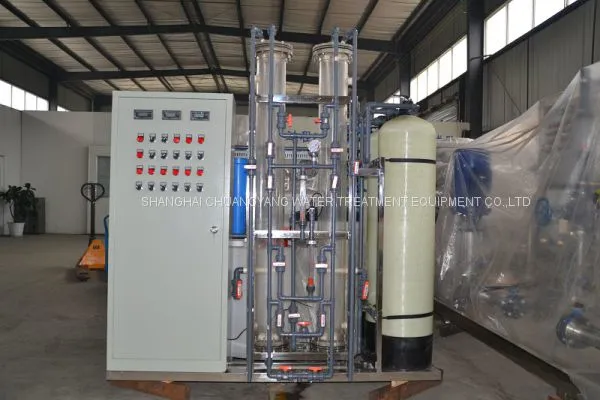

Product Name :containerized stainless steel reverse osmosis (ro) sea water desalination water treatment equipment
CY-Water Pure Water Treatment System Profile :
Simply speak,the deionized water equipment is equipment of producting deionized water , According to the degree of ions removal,namely the purity of water is different ,so the producting water technology is also different ,can be divided into Double stage RO System ,RO +EDI equipment (deionized ultrapure water equipment ),RO+mixed bed process . Depend on the different water quality requirement and requirement for use ,the water resistivity can be controlled between 1~18MΩ.cm. Which usually used for electronics ,electric power ultrapure water ,chemical ,electroplating ultrapure , boiler supply water ,and medical ultrapure water and the other industrial ultrapure water ,high purity preparation.
RO main component list:
1.Standard back flushing pump(with electric machine)/inlet solenoid valve
2.Back flushing dosing device/5μm precision filter/integrated membrane housing
3. DOW membrane/ Hydraulics
4.Automatic chemical self washing mechanism/baking finish or S.S frame
5.Supervisory meters,such as concentrated water pressure gauge,flow meter,conductivity apparatus
6.Automatic control
Design basic data (For reference only,exact specification is subject to raw water and product):
1.Inlet water SDI(15 MINS):
2.Inlet water TURBIDITY:
3.Inlet water Fe:
4.Inlet water chlorine:(mg/l)
5.Inlet PH:2~11
6.Inlet water temperature:4~45℃
7.Desalination rate:95~99%
8.Outlet water PH:5~7
Standard system:
| Model | Capability (Tons/Hr) |
Operation (MPa) |
Feed inlet (MM) |
Membrane Size(Inch) |
Membrane (Qty) |
Recovery | Power (KW) |
| CY-RO-125L | 0.125 | 1.0-1.4 | DN20 | 40×21 | 1 | 30% | 1.1 |
| CY-RO-250L | 0.25 | 1.0-1.4 | DN20 | 40×40 | 1 | 50% | 1.1 |
| CY-RO-500L | 0.5 | 1.0-1.4 | DN20 | 40×40 | 2 | 50% | 1.5 |
| CY-RO-750L | 0.75 | 1.0-1.4 | DN25 | 40×40 | 3 | 60% | 2.2 |
| CY-RO-1000L | 1.0 | 1.0-1.4 | DN25 | 40×40 | 4 | 60% | 2.2 |
| CY-RO-1500L | 1.5 | 1.0-1.4 | DN25 | 40×40 | 6 | 60% | 3.0 |
| CY-RO-2000L | 2.0 | 1.0-1.4 | DN25 | 40×40 | 8 | 60% | 3.0 |
| CY-RO-250LDP | 0.25 | 1.0-1.4 | DN20 | 40×40 | 3 | 50% | 2.6 |
| CY-RO-500LDP | 0.5 | 1.0-1.4 | DN25 | 40×40 | 5 | 50% | 3.7 |
| CY-RO-1000LDP | 1.0 | 1.0-1.4 | DN25 | 40×40 | 10 | 60% | 5.2 |
| CY-RO-2000LDP | 2.0 | 1.0-1.4 | DN25 | 40×40 | 16 | 60% | 7.0 |
| CY-RO-3 | 3.0 | 1.0-1.4 | DN32 | 40×40 | 12 | 65% | 4.0 |
| CY-RO-6 | 6.0 | 1.0-1.4 | DN40 | 80×40 | 6 | 65% | 5.5 |
| CY-RO-10 | 10.0 | 1.0-1.4 | DN50 | 80×40 | 10 | 75% | 11 |
| CY-RO-15 | 15.0 | 1.0-1.4 | DN50 | 80×40 | 15 | 75% | 15 |
| CY-RO-20 | 20.0 | 1.0-1.4 | DN65 | 80×40 | 20 | 75% | 18.5 |
