Dry Diamond Grinding Wheel Uses Lubricants Powder

Applications Of Resin Bond Diamond Grinding Wheel For Thermal Spraying:

Roll Grinding And Grinding Of Thermal Spray Coatings ( Including Tungsten Carbide ,

Chrome Carbide And Chrome Oxide ), Ceramics, Carbides, Chilled Iron Composites

And Other Hard-To-Grind Materials.

Thermal Spray Coating Process:

Thermal Spray Technologies Includ Flame Wire Spray, Arc Spray, Plasma Spray, HVOF

Or HVAF , Detonation Spray, Cold Spray .Thermal Spraying Technology Is Widely

Used In Aerospace, Aviation, Machinery, Metallurgy, Chemical, Petroleum, Coal, Railway,

Textile And Many Other Departments .

Specifications Of Resin Bond Diamond Grinding Wheel For Thermal Spraying:

Diameter (Mm)	Dia. Inch	H(Mm)	T(Mm)	X(Mm)
25	1’’	6	12	6
30		6	12	6
40		6	12	6
50	2’’	6	12	6
100	4’’	12	12	10
150	6’’	12	25	10
300	12’’	-	25	10
400	16’’	127	25/50	10/25
500	20’’	127/ 203.2	25/ 50	10/ 25
600	24’’	254	25/ 50	10/16/25
750	30’’	304.8	50	10
914.4	36’’	304.8	25/ 50	10/25
1100	43’’	304.8	50	10
* Other Specifications Can Be Produced According To Customers’ Requiremen

The Cases Of Resin Diamond Grinding Wheel For Thermal Spraying Coating :

36'' (D914.4 Mm) Big Resin Diamond Grinding Wheel

30'' (D750 Mm ) Resin Diamond Grinding Wheel For Thermal Spraying Coating

24'' ( D600mm) Resin Bond Diamond Grinding Wheel

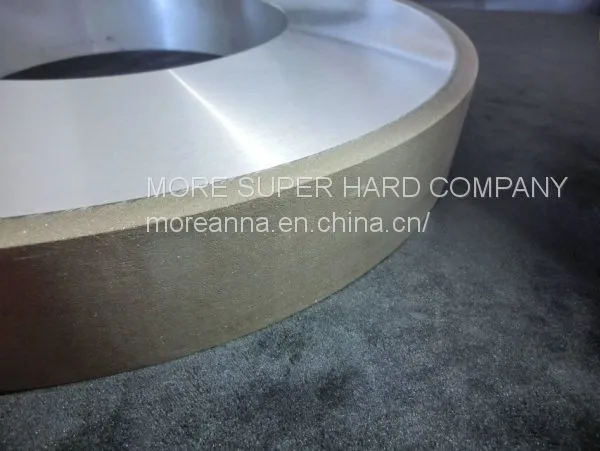

Nowadays, The Width Of Diamond Layer Of D600 Resin Bond Diamond Grinding Wheel We Can Reach 25mm

4'' (D100 Mm) Resin Diamond Grinding Wheel
