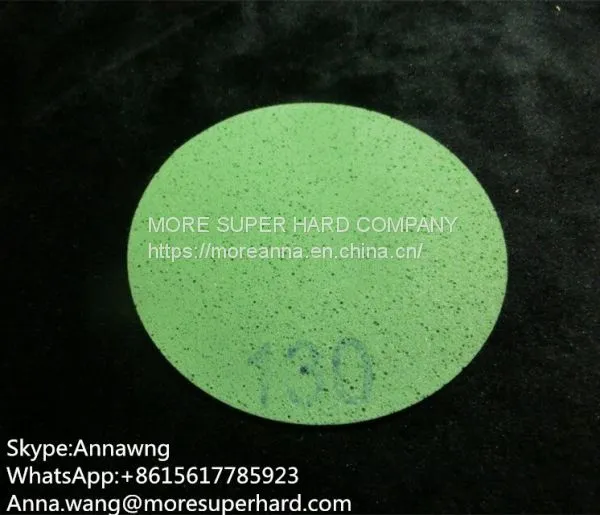

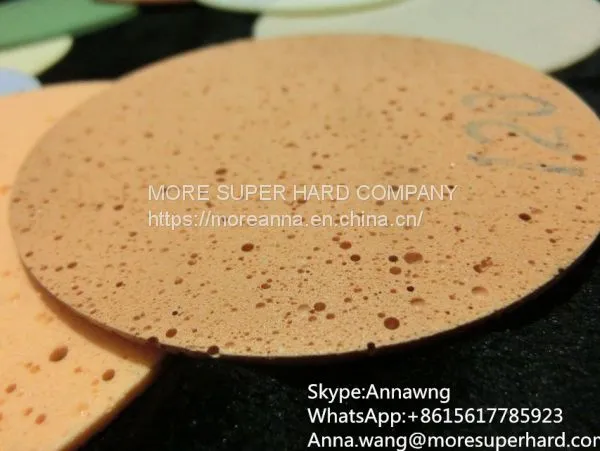

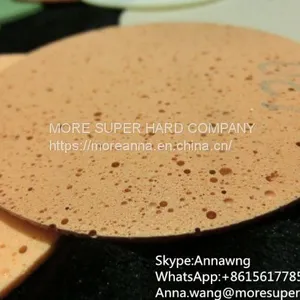

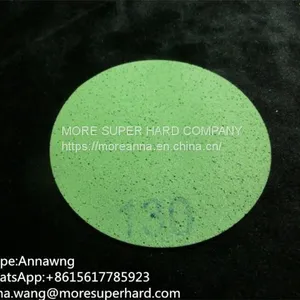

Help CenterPolyurethane (PU) Polishing Pad
Related Products
-
Polyurethane Polishing Pad,polishing ClothesUS$ 1 - 2MOQ: 1 Piece -
Hybrid Metal-Resin Diamond WheelUS$ 1 - 2MOQ: 1 Piece
-
Ginding Wheel Spec do i Use for Crankshaft GrindingUS$ 1 - 2MOQ: 1 Pair
-
11A2 Dry Grinding Diamond Saw Sharpening Wheels Dry GrindingUS$ 1 - 2MOQ: 1 Piece
-
Rotary Diamond Grinding WheelUS$ 1 - 2MOQ: 1 Piece
Application Of Polyurethane (PU) Polishing Pad :
Polishing And Finishing Of Glass, LCD/LED Substrates, Precision Optics, Hard Disk, Metal And Semiconductor Wafer Surfaces.
Size Of Polyurethane (PU) Polishing Pad :
| Shape | Dimensions (Inches / Mm) |
|
| Rectangle | 23 X 55 Inches | 584.2 X 1397 Mm |
| 36 X 71 Inches | 914 X 1803 Mm | |
| Square | 42 X 42 Inches | 1066 X 1066 Mm |
| 52 X 52 Inches | 1320 X 1320 Mm | |
| Roundness |
Φ 26 Inches | 660 Mm |
| Φ 32 Inches | 812 Mm | |
| Φ 38 Inches | 965 Mm | |
| Φ 52 Inches | 1320 Mm | |
| Custom Sizes, Shapes And Configurations Are Available.Email: Sales@Moresuperhard.Com | ||
Thickness For Polyurethane Polishing Pad:
Standard Thickness For PU Polishing Pads Ranges From 0.020 Inches (0.508 Mm) To 0.20 Inch (5.08 Mm).
| Model | Filler |
Average Density G / Cm³ (Ib / Ft³ ） |
Average Hardness Shore - A |
Application Area |
|
MSH- 110 |
Cerium Oxide | 0.42 (26) | 78 |
Glass, Crystal, Metal, Ceramic |
|
MSH- 120 |
Cerium Oxide | 0.43 (27) | 78 | Glass, Crystal |
|
MSH- 130 |
Cerium Oxide | 0.35 (22) | 66 | Glass, Crystal |
|
MSH- 210 |
Zirconium Oxide | 0.59 (37) | 90 | Glass, Metal , Ceramic |
|
MSH- 230 |
Zirconium Oxide | 0.40 (25) | 74 | Glass, Crystal |
|
MSH- 240 |
Zirconium Oxide | 0.57 (36) | 88 | Glass, Crystal |
|
MSH- 410 |
None | 0.51 (32) | 88 | Glass, Metal , Ceramic, Crystal |
|
MSH- 420 |
None | 0.77 (49) | 96 | Glass, Metal , Ceramic, Crystal |
Pressure-Sensitive Adhesives (PSA) Backing: Adhesive Backing Is Available On All Types Of Pads. PSA Backing Ranges From High-Holding To Low Tack/Easy Release.
Grooving :Grooves Improve Pad Performance By Reducing Excess Slurry From The Pads Surfaces. More Superhard Pad In Offered In A Variety Of Groove Configurations . The Depth Of A Groove Is Usually Half Of The Pad Thickness, Only Pad With Thickness Of More Than 2 Mm Can Be Grooved . Groove Width Is Usually 2 Mm, And The Island Size Is Usually 16*16 Mm.
