10.4 inch TFT LCD Industrial Touch Screen Monitor FA1042-NP/C/T
Introduction:

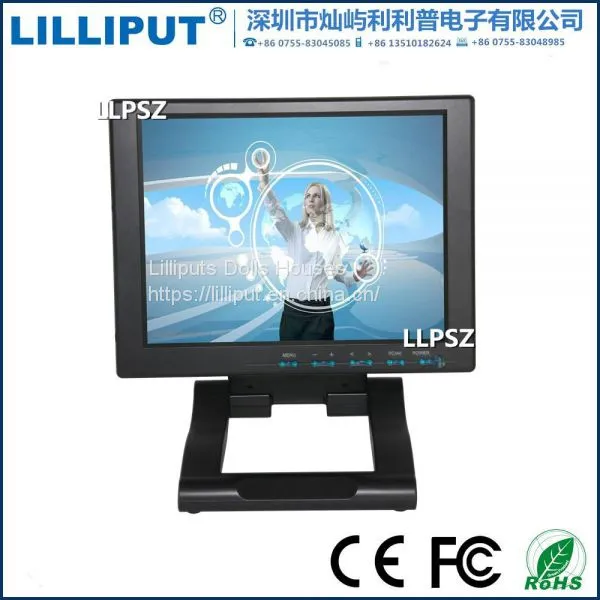

FA1042-NP/C/T is a 10.4 inch TFT LCD monitor with touch screen.
FA1042-NP/C/T use a high quality new LCD Panel,with 800x600 resolution,
250cd/m2 brightness and 140°/110°(H/V) wide angle, which
can display clear images.
It uses LED backlight,which has advantage like Energy-Saving,Long life and
environmental protection.

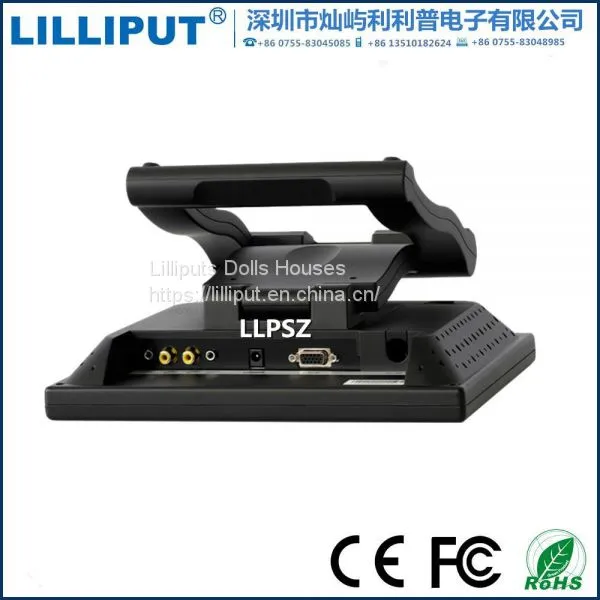

VGA & Video & Audio Interface
FA1042-NP/C/T has VGA,Audio(1 RCA) & Video (2 RCA) input,which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
Speaker Built-in
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment
Folding Bracket
Possible to stretch & folding
Wall Mount possible
Specification:
| Description | 10.4 inch TFT LCD Touch Screen Monitor |
| Signal Input | VGA x 1 / Video x 2 / Audio x 1 |
| LCD Size | 10.4 inch |
| Resolution | 800 x 600 |
| Touch Panel | 4-wires resistive (USB Touch as standard) Optional: RS232 Touch Interface |
| Backlight | LED |
| Dot Pitch | 0.088(W) x 0.264(H) mm |
| Active area | 211.2(W) x 158.4(H) mm |
| Color System | PAL-4.43,NTSC-3.58 |
| Brightness | 250cd/m2 |
| Contrast | 500:1 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 140°(H) / 110°(V) |
| Voltage | DC11-13V |
| Power consumption | ≤13w |
| Speaker | x1(Built-in backside) |
| Audio output | ≤1w |
| Work temperature | -20~60℃ |
| Store temperature | -30~70℃ |
| Size(mm) | 252L x 216W x 73H(Folding) 252L x 185W x 267H(Unfolding) |
| Weight | 1500g |
| Support OS(Touch Driver) | Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6 |
| Warranty Time | 12 months |
| Package Content | |
| Monitor | x 1pcs |
| VGA Cable | x 1pcs |
| Audio Signal Cable(Black) | x 1pcs |
| Audio Signal Cable | x 1pcs |
| Video Signal Cable(Yellow and Buff) | x 2pcs |
| Remote Control | x 1pcs |
| DC 12V Home Power | x 1pcs |
| Touch Pen | x 1pcs |
| Touch Driver CD | x 1pcs |
| Manual | x 1pcs |
Package Info:
Package Size:35 x 33 x 16 cm (1pcs/Box)
Package Weight:2.8 KGS (1pcs/Box)
Package Volume Weight:4 KGS (1pcs/Box)
Carton Size:69 x 37 x 35 cm (5pcs/Carton)
Carton Weight:12.9 KGS (1pcs/Carton)
Carton Volume Weight:18 KGS (5pcs/Carton).
