Double Head Sand Molding Core Shooting Machine
DL-400-B Double Head Sand Molding Core Shooting Machine
1. Machine Parameters
| Greatest Weight of sand cores | 3.2kg*2 |
| the biggest size of core boxes | 380*280*200mm |
| left and right itinerary of plunger | 125mm |
| the longest itinerary of clamping | ≤300mm |
| net weight of machine | 513kg |
| heating power | 8kw |
| size of machine | 1420*680*1700mm |
* According to customers' requirement, add core-pulling at frontal and back.

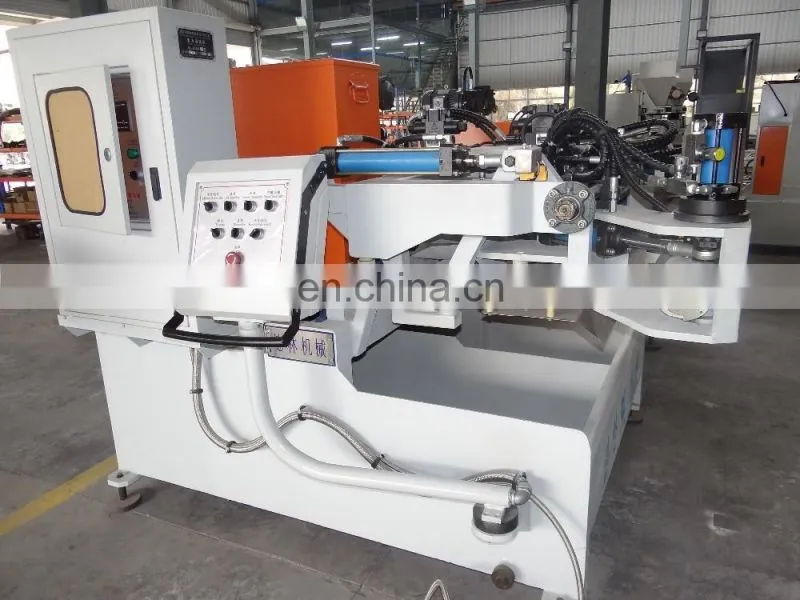

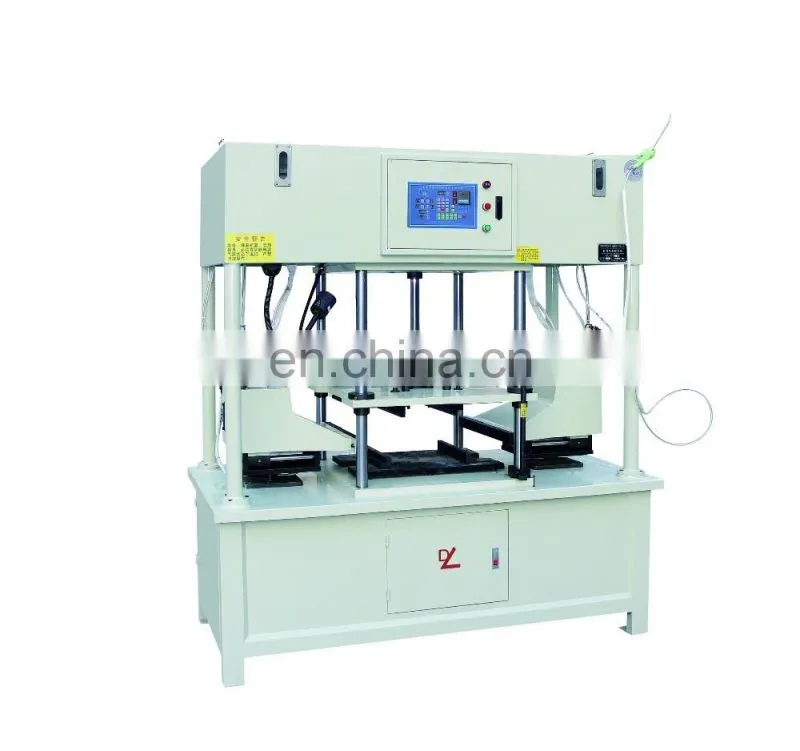

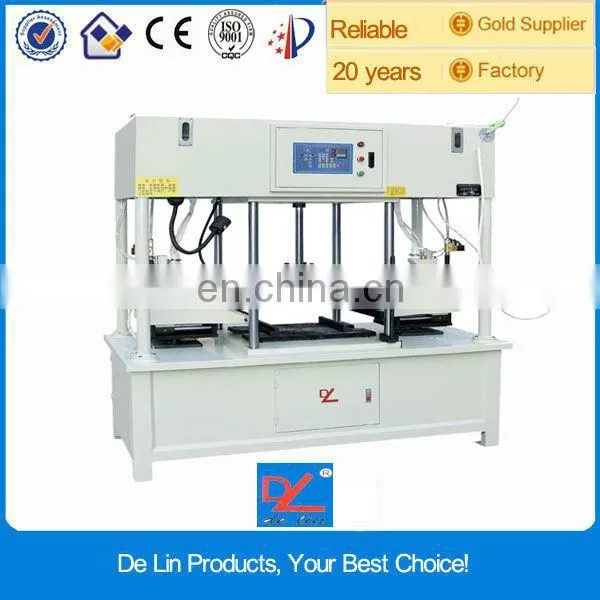

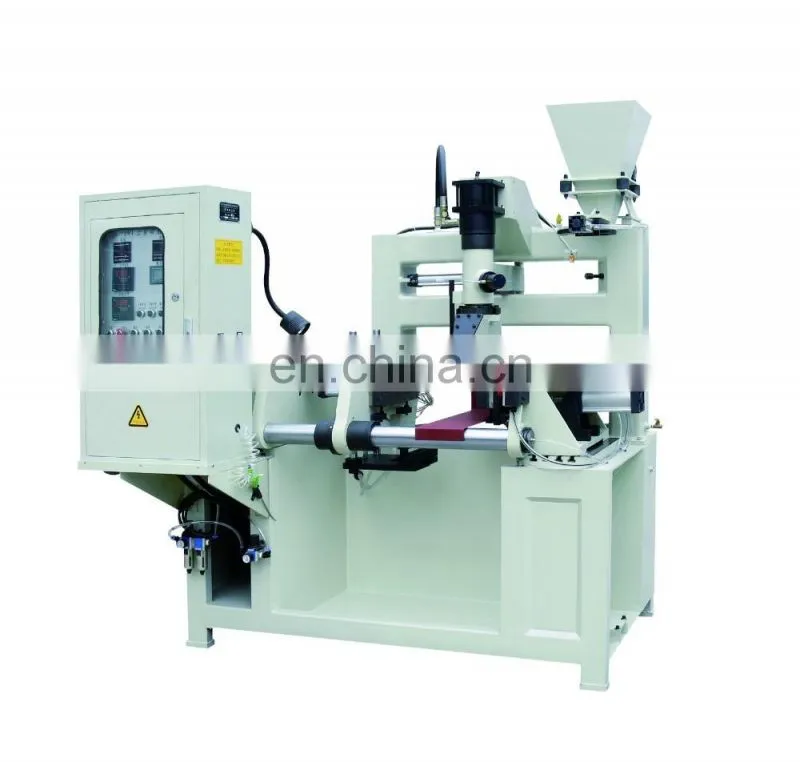

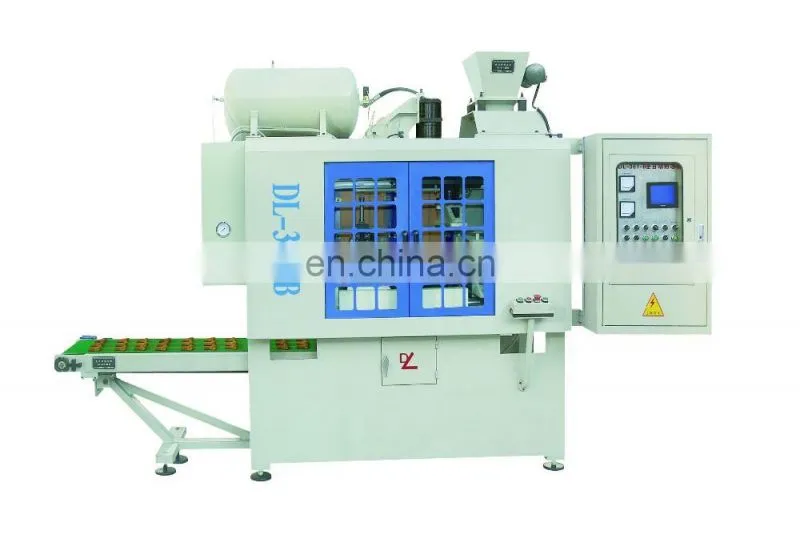

2. Photos Of Machine
3.Main Function Features Of Machinery
| 1. Horizontal parted type,fetching core manually. |
| 2. three kinds of function manual,single-circle automatic, automatic circulation. |
| 3. It can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency. |
| 4. Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension. |
| 5. The shooting head rotates for 50° to receive sand, it is easy to clean the shooting hole manually. |
| 6. The machine can be plainly moved as a whole. |
4. The Process Of Faucets
Main products: Automatical molding machine, Low-pressure die casting machine, Gravity casting machine, Furnace, Core shooting machine, Mixing sand machine, abrator,etc. Widely used in plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.
For core shooting machine: International standard seaworthy package, plastic film packaging, standard wooden export packing or as your requirment.
1.Company Profile
Delin company, located in sanitary hometoen which is the earlier professional casting equipment manufacturer in the southern parts of China. With an area of 50000 squuare meters, as well as 350 workers, including 65 intermediate and senior professional technicians.
Our company was established in 1998. The products spread all over domestic market, as well as nearly twenty countries. In Inara, Iran, Uietnam and other internatioanl exhibition booth. Meanwhile it has enlarged many sales and aftersale service centers. And a top-level talents team are ready for service at any time, and this promises all kinds of customers' problems can be dealt promptly.
Initial stage(1998) : The business started from a small mill. The company's main business was machined and repaired parts in this stage. After the solid technical quality casting guarantee for mechanical manufacturing has laid a solid foundation.
Second stage(2004) : With the needs of the development of market, the previous small workshops could not meet the needs of production scale. Company duly made the first scale expanding,the company had realized the finished product mechanical design,development and test marketing.
Third stage(2007) : keep pace with the times.Leaders have innovation which promote the company develop into independent production of the whole production line equipment of Non-ferrous metals enterprise. Company develop a dozen department such as sheet metal,mold,consumables,import and export etc from a single mechanical enterprises.
The fourth stage(2012-2013) : in order to provide better service for the general user.Delin investing heavily in
third time the size of business expansion.Company consolidate service to the whole industry chain. At this stage
company has added departments, developing into a diversified enterprise.
2.Some Cooperation Partners Of DELIN Company
3.Certficates
(1)Reply your enquiry in 24 working hours.
(2)Experienced staffs answer all your questions in professional and fluent engliash.
(3)Customized design is availlable.
(4)Exdusive and unique solution can be provided to our customer,by your our well-trained and professional enginees and staffs.
(5)Special discount and protection of sales area provided to your distributor.
(6)Do the best colorful metal cheap small wholesale in china.
You Can Contact Merry Ting:
QQ : 1004382637
Skype : Merry1004382637
Wechat : Merry1004382637
Whatsapp / Tell : 86+13960339790
If you have any quetions,please contact me directly,
I will reply you as soon as possible~
