China high precision horizontal CNC lathe machine for making Cylinder and small components
Related Machine
In fact,According to the requirements of use, automatic Special Processing Machine(SPM)R & D by our company ,it could devide into PLC control type and CNC control type. There are some SPM machining machine cases :
* Automatic SPM machining machine for various metals can be customized based on customers' requirements.
Specific Display :

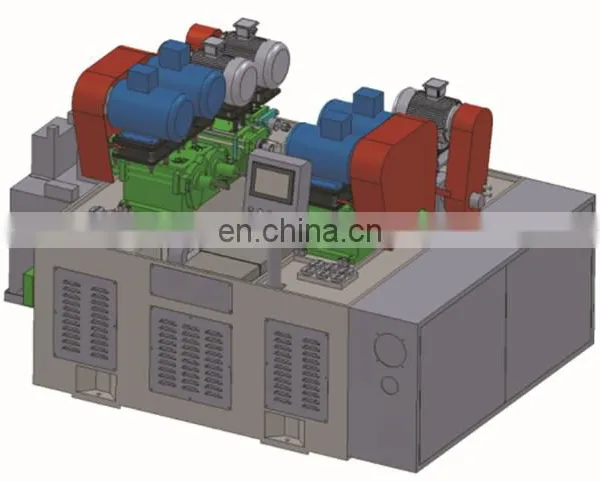

1. ( Sliding ) Multi-spindle combined drilling and tapping machine :

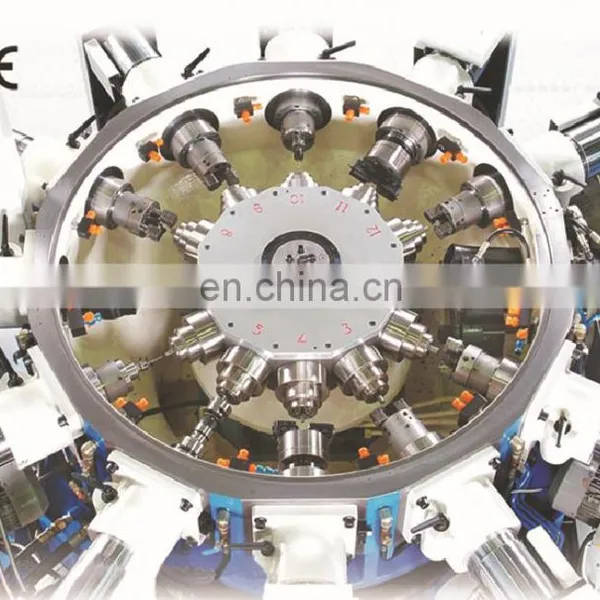

2. CNC rotating multi-spindle & multi-station compound machine :
3. AC-HSK series drum wheel multi-station CNC milling center :
We have a variety of processing machines,that is Special Processing Machine. Each machine has a different application areas to meet a variety of secondary processing. Widely used in machining brass,copper,aluminum alloy,like valves,sanitaryware,door hardware,household appliances,auto parts,ect..
Surface Engraving Machine Feature
a. Whole parts use GB-HT300 resin sand casting component, by tempering and natual aging to eliminate internal stress.
b. Built-in counterweight : counterweight with guide rod, won't be shaking when moving up and down.
c. The sliding surface is with automatic lubrication pump device, to ensure the service life of the machine.
d. Sealed sheet metal and excretion inside the machine.
e. Urgent stop button in set on the machine body, it is for easy. It is convenient installing and regulating.
Main Specification And Technical Parameters
| Description | Unit | Vertical | Horizontal |
| X-Axis Travel | mm | 350 | 200 |
| Y-Axis Travel | mm | 430 | 300 |
| Z-Axis Travel | mm | 300 | 200 |
| Spindle Nose To Table Distance | mm | 390 | 150 |
| Table Size | mm | 1850 x 420 | 1440 x 235 |
| T-Slot (Slot Number *W* Spacing) | mm | 3x14 x 100 | / |
| Maximum Load | kg | 500 | 500 |
| Spindle Taper | ER20 | ER20 | |
| Spindle Speed | rpm | 24000 | 24000 |
| Fast Delivery X,Y,Z Axis | m/min | 36 | 24 |
| Spindle Motor | kw | 3 | 3 |
| X,Y Axis Motor | kw | 1.5 | 1.5 |
| Z Axis Motor | KW | 1.8 | 1.8 |
| Magazine Type and Number of Tools | pc | 8 | 8 |
| Positioning Accuracy ( JIS Standard ) | mm | ±0.005/300mm | ±0.005/300mm |
| Repeatability Accuracy ( JIS Standard ) | mm | ±0.01 | ±0.01 |
| Machine Weight (Approx.) | kg | 4200 | 2400 |
| Machine Size (L*W*H) | mm | 2900x2000x2300 | 2500x1600x1900 |
| Air Requirements | kg/cm2 | 6 | 6 |
Remarks : some parameters can be customised by client's requirement.
Photos Of Machine

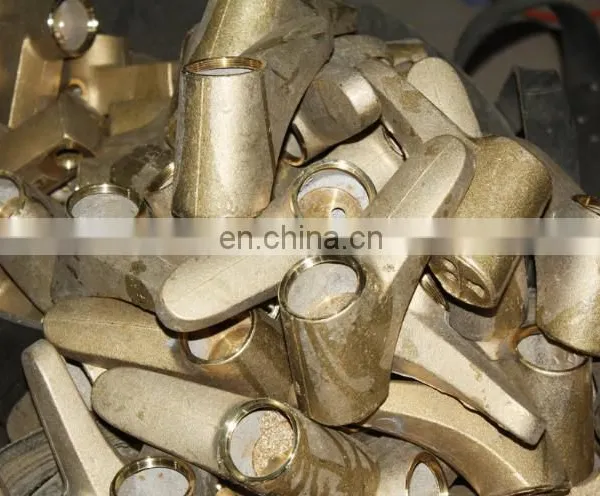

Machine Application Fields
It is widely used in machining brass,copper,aluminum alloy,like valves,sanitaryware,door hardware,household appliances,auto parts ect..High quality with compotitive price and googd appearance.
1.Company Profile
Ancon Automatic Machinery belongs to the subsidiary company of Nanan Delin Machinery Manufacturing Co.,Ltd. It Locates in China well-known sanitaryware hometown-Nanan.
Production Workshop :
Our company was established in 1998. The products spread all over domestic market, as well as nearly twenty countries. In Inara, Iran, Uietnam and other internatioanl exhibition booth. Meanwhile it has enlarged many sales and aftersale service centers. And a top-level talents team are ready for service at any time, and this promises all kinds of customers' problems can be dealt promptly.
2.Some Cooperation Partners Of DELIN Company
3.Certficates
Q 1: What is the Warranty for the machine?
For the portable cnc cutting machine, we have 1 year warranty. If any quality problems occurred under normal condition in this period , we will take on the cost of maintenance and replacement and other related cost.
Q 2: How to operate and maintain the machine?
First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q 4: How can we learn to operate the equipments?
We will give the equipments operation teaching video and the instructions to
help you learn the brass alloy casting machine and the engineers are also available.
Q 5: Can you guarantee you quality?
Of course. We are the manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
