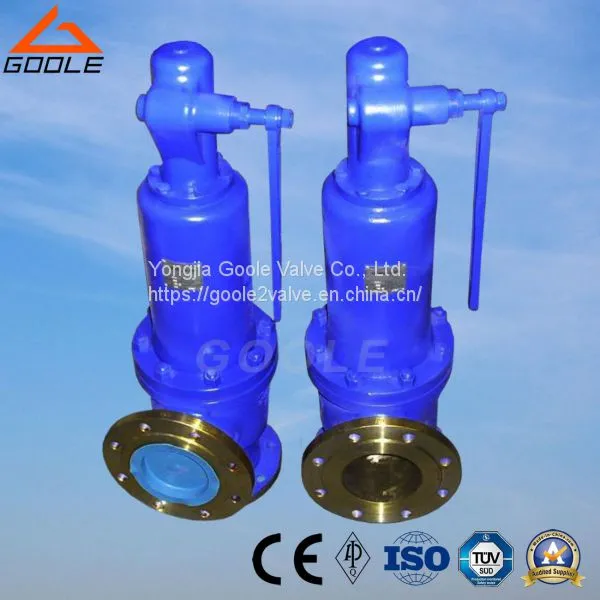

Spring Loaded Full Lift Pressure Safety Valve
US$ 2 - 10
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
goole
Place of Origin:
China
Model Number:
GA900
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
15 days
Related Products
-
Spring Loaded Pressure Safety Valve, Lever Safety Relief ValveUS$ 2 - 10MOQ: 10 Sets -
High Temperature and High Pressure Steam Safety Relief Valve (GA48SB/H)US$ 2 - 10MOQ: 10 Sets
-
Brass /Stainless Steel Threaded Pressure Safety Relief Valve (A27H/A27Y)US$ 2 - 10MOQ: 10 Sets
-
Spring Loaded High Temperature and High Pressure Safety Valve A48shUS$ 2 - 10MOQ: 10 Sets
-
Spring Loaded Full Lift Steam Pressure Safety Relief ValveUS$ 2 - 10MOQ: 10 Sets
Brand Name
goole
Place of Origin
China
Model Number
GA900
Material
Brass
Application
General
Structure
Safety
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Hydraulic
Media
Base
Temperature of Media
High Temperature
900 series DIN standard safety valve are mainly applied to the industries such as petroleum&natural gas,Chemistry,Electric,Metallurgy&Burning gas.
Din standard safety valve specification.
| Type | Nominal Pressure | Body Material | Nominal Diameter | Working Temp. |
| GA901/902/911/912 | PN40/16 | Cast Steel 1.0619+N | 20/32mm-150/250mm | -10~450 deg |
| GA901/911 | PN40/16 | Stainless Steel 1.4408 | 20/32mm-100/150mm | -60~450 deg |
-----------------------------------------------------------------------------------------------------------------------------------------------
| DN | 20/32 | 25/40 | 32/50 | 40/65 | 50/80 | 65/100 | 80/125 | 100/150 | 125/200 | 150/250 |
| Throat Diameter do(mm) | 18 | 22 | 29 | 36 | 45 | 58 | 72 | 80 | 100 | 125 |
| Orifice Area Ao(mm) | 254 | 398 | 661 | 1018 | 1590 | 2688 | 4072 | 6362 | 8825 | 12266 |
| Weight(kg) | 8.5 | 10 | 14 | 20 | 28 | 40 | 53 | 80 | 125 | 165 |
Main Connection Dimensions.
| GA901,902,911,912 Type Safety Valve | |||||||||||
| DN*DN1 | 20*32 | 25*40 | 32*50 | 40*65 | 50*80 | 65*100 | 80*125 | 100*150 | 125*200 | 150*250 | |
| D | PN16 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 |
| PN40 | 235 | 220 | 300 | ||||||||
| K | PN16 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 |
| PN40 | 190 | 220 | 250 | ||||||||
| b | 20 | 20 | 20 | 21 | 22 | 24 | 26 | 28 | 31 | 34 | |
| D1 | PN16 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 |
| K1 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | |
| b1 | 19 | 19 | 20 | 20 | 20 | 20 | 22 | 22 | 27 | 29 | |
| L | 85 | 100 | 110 | 115 | 120 | 140 | 160 | 180 | 200 | 225 | |
| L1 | 95 | 105 | 115 | 140 | 150 | 170 | 195 | 220 | 250 | 285 | |
| ≈H | 298 | 311 | 315 | 355 | 405 | 555 | 580 | 690 | 845 | 890 | |
| Vent(with plug) | G3/8" | G1/2" | |||||||||
