Home > Products > USB connector > IP67 Waterproof fireproof circular USB connector with USB port Data Connector for data transmission equipment
IP67 Waterproof fireproof circular USB connector with USB port Data Connector for data transmission equipment
USD $0.01 - $0.1
/ Piece
100 Pieces(Min.Order)
- 1500000 Piece / Pieces per Month
- Yantian
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
Product Details
| Brand Name: | CNB electronics | Place of Origin: | China | Model Number: | CNB-USFCTBBSC |
Product Description

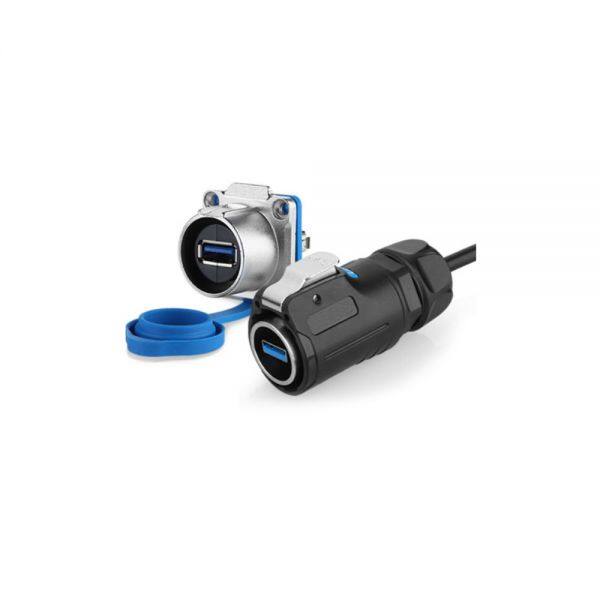

IP67 Waterproof fireproof circular USB connector with USB port Data Connector for data transmission equipment
---Specifications:
| Wire specification: | 0.15M㎡～0.2M㎡/26-24AWG |
| Line diameter rate: | Φ5.5㎜~Φ7㎜ |
| Rated current(A) | 1.5A |
| Contact resistance | <30mΩ |
| Withstand voltage (AC.V)1minute | 1000V |
| Insulation resistance | ＞500MΩ |
| Protection level | IP65/IP67 |
| Mating cycle | ≥500times |
| Working temperature | -40℃～80℃ |
| Connection mode | Quick bayonet connection |
| Wiring mode | Welding / Crimping |
| nsulation components | High-performance engineering plastics |
| Hardware | Zinc alloy（Nickel Plating） |
| PIN | Copper alloy | gold plating |
| Waterproof circle | Silica gel |
| Flame retardant grade | UL94-V0 |

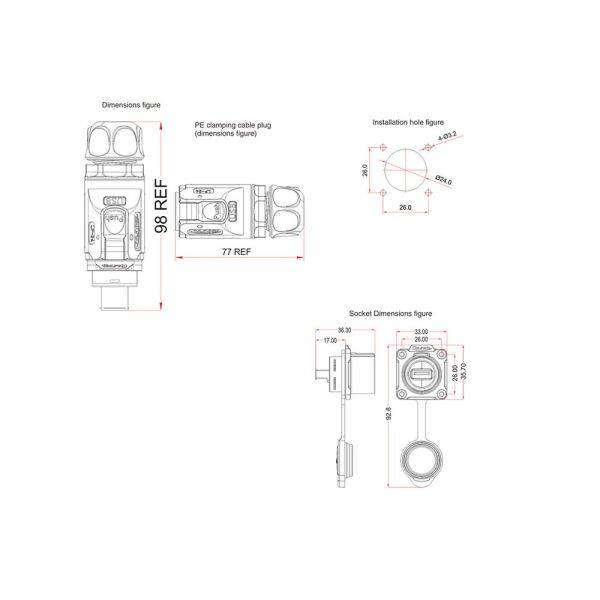

---Drawing:
---Payment & Shipping:
* Payment Terms: T/T, PayPal, West Union, L/C, ect.
* Please contact with me to discuss payment terms and shipping port
* Contact Person:
