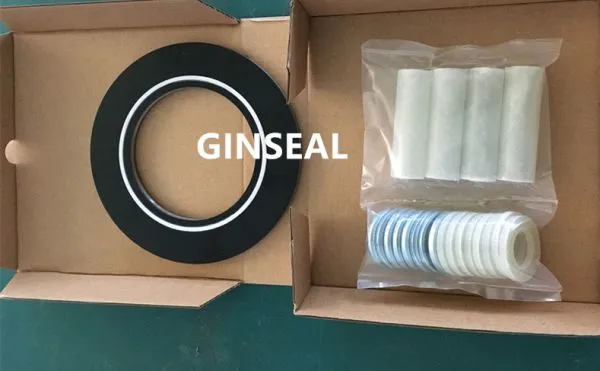

Pipe flange Insulation gasket kit/set PHENOLIC RESIN gasket Neoprene-faced phenolic resin gaskets kits
Insulation sets are often used in petrochemical applications electrically isolate two mating flanges to reduce the likelihood of creating a galvanic cell which would result in corrosion of the flanges and pipework. Insulation sets are also used to prevent the flow of electrostatic charge to reduce sparking in hazardous environments.

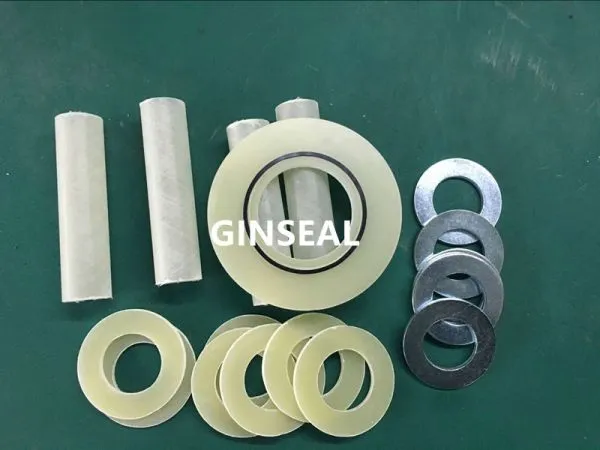

Insulation sets often comprise an insulating gasket and set of two insulation and two steel washers and one insulating sleeve per bolt.
Type “E” is a full-face gasket with same outside diameter as the flange and precision cut bolt holes
This design facilitates proper alignment of the gasket during installation.
This assembly minimizes the ingress of conductive foreign matter between the portions of the flanges outside the raise face and reduces the risk of bridging.
Type “F” gasket are made to fit the raise face portion of the flange only.
As there are no bolt holes in the “F” gasket, the outside diameter of the gasket fit tightly into place assuring a well centered position.
Enquiry please send to jssealing [at]163 [dot] com
