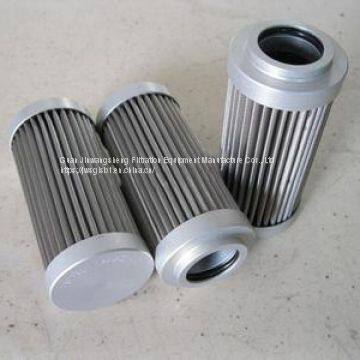

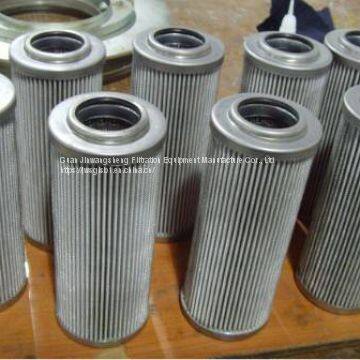

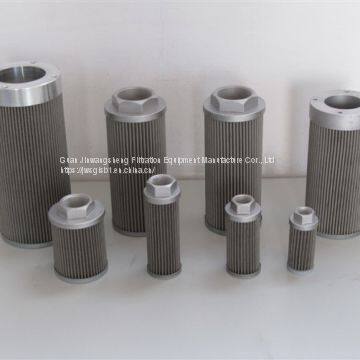

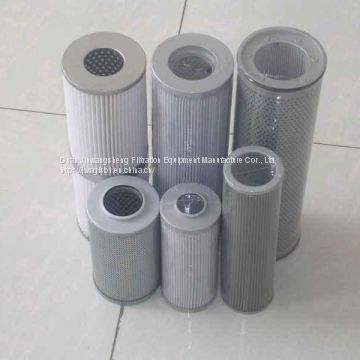

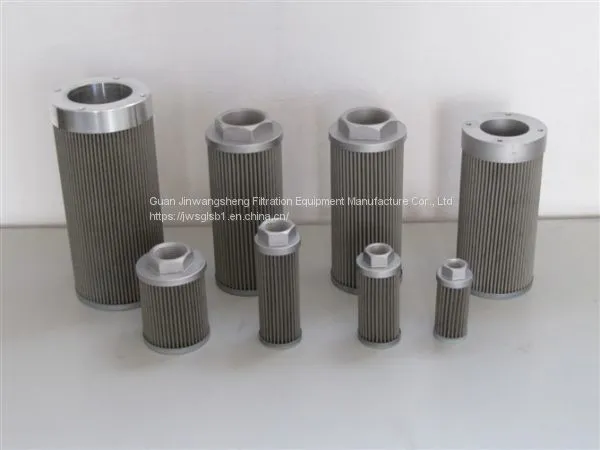

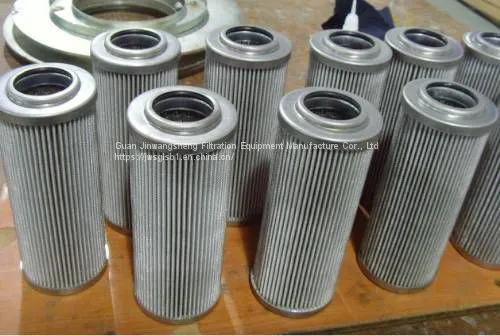

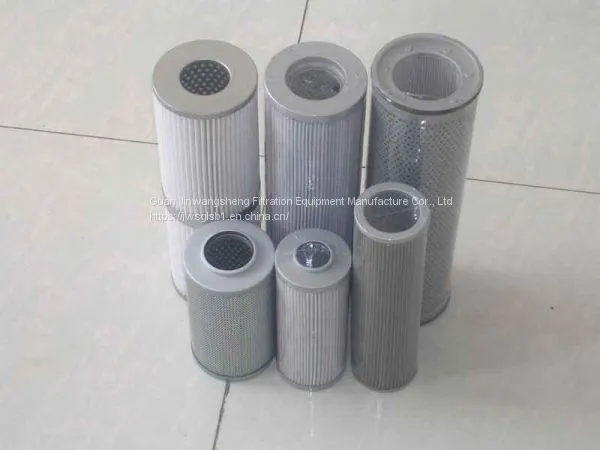

Help CenterMechanized Factory Dawn Return Oil Hydraulic FAX-25 x 20 Filter Element
Related Products
-
Shaft Oil Inlet Hydraulic System Dawn Hydraulic Oil Over TFX-1300 x 100 Filter ElementUS$ 1 - 10MOQ: 50 Pieces -
Small Machine Inlet Steam Regulating Valve Hydraulic System Dawn Hydraulic Oil TFX-1300 x 180 Filter ElementUS$ 1 - 10MOQ: 50 Pieces
-
Anti - Fuel Oil Motor Import Dawn Hydraulic TFBX-45 x 10 Filter ElementUS$ 1 - 10MOQ: 50 Pieces
-
High Pressure Oil Station Dawn Hydraulic TFBX-45 x 20 Filter ElementUS$ 1 - 10MOQ: 50 Pieces
-
Custom-made Special-shaped/diesel/oil/dedusting/hydraulic/engineering Stainless Steel Mesh/glass Fiber Cloth Filter ElemUS$ 1 - 10MOQ: 50 Pieces
Filter is introduced
The hordek filter element is an indispensable part of the pipeline series of conveying medium. It is usually installed in the inlet end filtration of the hydraulic system.
It is used to filter the metal particles and contaminated impurities in the fluid media to protect the normal work of the equipment. When the fluid enters the filter,
The impurities are blocked and the clean filtrate is discharged from the filter outlet. When cleaning is required, simply remove the filter from the filter.
It can be loaded with industrial liquid.
Filter characteristics
1. The filter is made of imported glass fiber/stainless steel mesh in the United States. It has the advantages of convenient sewage, large circulation area, small pressure loss, simple structure, small volume, light weight and uniform filtration material.
2. The compatibility of filter material is applicable to the filtration of general hydraulic oil.
3. The filter element is supported by the solid filter material on both sides and the filter material with strong stability, which conforms to the verification of the flow fatigue characteristics of the iso3724/76 hydraulic filter core.
Hedek hydraulic filter is widely used in steel, power, metallurgy, shipbuilding, aviation, paper, chemical, machine tool and engineering machinery, construction machinery and other fields.
Technical parameters
Filter material: glass fiber, stainless steel mesh, wood pulp filter paper.
Filtration precision :1um~100um.
Working pressure :21bar~210bar.
Sealing material: ding qing rubber ring, fluorine rubber ring.
Working medium: general hydraulic oil.
Working temperature: - 10 ~ + 100 ℃
Application field: engineering machinery, forklift truck, truck hydraulic power system,
Hydraulic support hydraulic lift system, mining mobile equipment, injection molding machine hydraulic transmission system,
Paper pulp and paper mill, petrochemical industry, wind power generation hydraulic system,
Steel and heavy metal smelting, blast furnace ironmaking hydraulic system, pharmaceutical power control system.
