Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc

Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc thumbnail-1
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc thumbnail-2
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc thumbnail-3
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc thumbnail-4
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc thumbnail-5
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc photo-1
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc photo-2
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc photo-3
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc photo-4
Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints Etc photo-5
US$ 35000 - 450000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOODSJACK Delishi
Place of Origin:
China
Model Number:
DKHS
Contact Supplier Request Quote Chat Now
Dongguan Goodsajck Machinery Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
40 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOODSJACK Delishi
Place of Origin China
Model Number DKHS
Certification CE ISO CSA
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Voltage 415V/380V/220V
Condition New
CNC or Not CNC
Power Source Hydraulic

Servo Cold Extrusion Forging Hydraulic Press Machine for Auto Spare Parts Such as Gears Universal Joints etc


Hydraulic Press Machine Factory


Hydraulic Press Machine make products

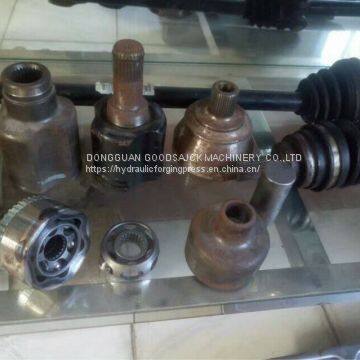

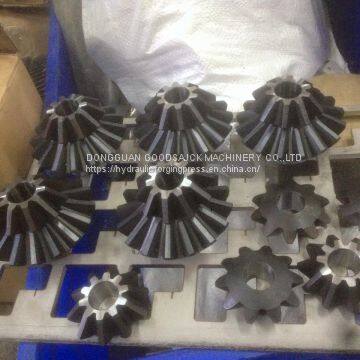

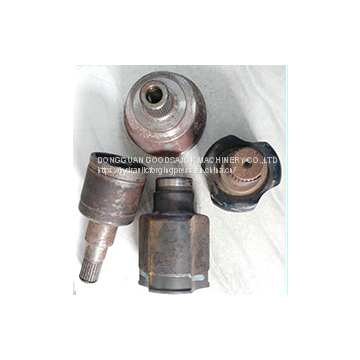

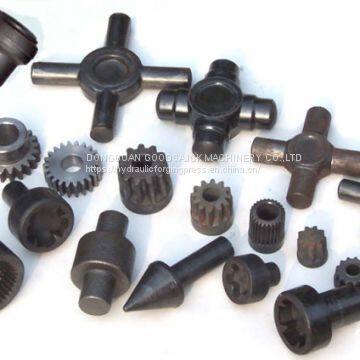

1. Mainly applies to metal materials,cold forging,warm forging and extrusion molding,and punching mark,ligh stretching,cut edges and other materials.Such as cars,motorcycles,bicycles,cell phone case,LED radiator, watchcase,hardware tools.
2. Especially suitable for the precision molding parts.



Goodsjack 800 tons cold forging press is pressing car universal joints Goodsjack 650tons cold forging press is pressing lED heat sink servo hydraulic press




Model Units Specifications
DKHS-100 DKHS-200 DKHS-300 DKHS-400 DKHS-500 DKHS-650 DKHS-800 DKHS-1000 DKHS-1200 DKHS-1500
master cylinder rated
capacity		 ton 100 200 300 400 500 650 800 1000 1200 1500
stroke mm 300 400 400 400 500 500 500 500 500 400
fast dowm
speed		 mm/s 180 160 160 230 230 170 190 210 190 220
coining
speed		 mm/s 7-15 8-17 5-12 7-18 8-16 5-12 5-12 8-16 6-15 3-13
return
speed		 mm/s 170 150 130 210 200 170 180 210 160 210
system pressure bar 240 235 240 240 250 248 240 240 250 240
knock-out cyinder ejecting
force		 ton 15 30 30 40 40 50 50 60 80 100
stroke mm 200 200 200 200 250 250 250 250 250 200
mandrel
diameter		 mm 40 50 50 60 60 80 80 80 80 100
open heigh(slide to bolster) mm 600 700 700 700 800 900 1000 1100 1200 1050
working
table size		 L-R mm 500 700 700 800 800 1000 1000 1200 1300 1400
F-B mm 500 700 700 800 800 1000 1100 1200 1300 1400
main motor power KW 8.6 16 23.6 34.6 34.6 37 60 74 90 110
over all
dimension		 L-R mm 1250 1680 1680 2600 2650 2940 3000 3660 3800 4150
F-B mm 1430 1780 1780 2100 2100 2100 2300 2450 2500 2680
H mm 2850 3480 3500 3700 4050 4100 4320 4560 4720 4820







The machine capacity from 100 tons to 1500 tons, if you want to custom hydraulic press design, please contact us with email:sales1@goodsjack.com, skype alice.goodsjack and whatsapp +86-13642957273.
