Specifications
Cold Forging Press1,High rigidity and high accuracy
2, high production efficiency
3, high reliability

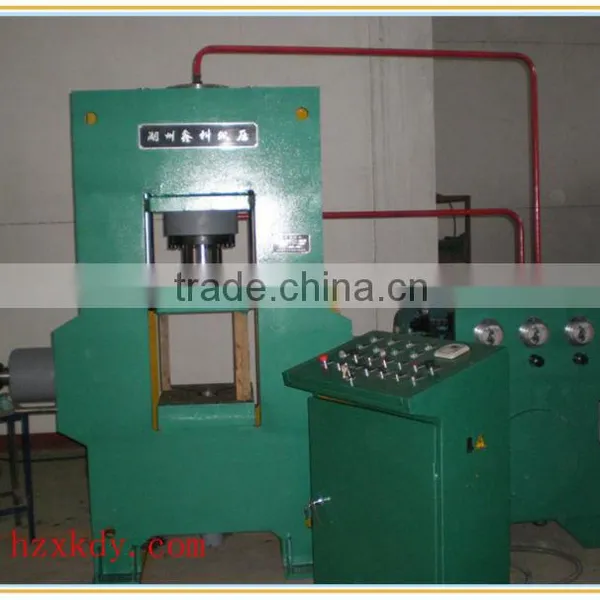

Name: Cold Forging Press
Characteristics of Cold Forging Press:
1, Gantry-style or Four-column structure, adopted Computer Optimized Design with High rigidity and high accuracy
2, Based on Latest Close-Loop Ratio Control Technology, digital display, setting stroke, pressure and speed, and also controlling high rigidity
3, Independent Power and electrics system, Adopting Industrial Touching Screen with Japanese PLC, Centralized pushbutton control. Two working way: Handle working and Auto-working
4, The ideal choice of pressing tee pipe coupling and 90º elbow with the feature of high reliability, high production efficiency
Apllications of Cold Forging Press:
With the latest Close-Loop Proportional Control Technology, digital control speed, pressure and pressing process at all your need. Suitable for Extrusion forming for Tee pipe fitting of all kinds of Stainless and carbon steel
Technical Specifications of Cold Forging Press
| Item | Unit | YST-63 | YST-100 | YST-200 | YST-315 | YST-630 | YST-630 | YST-1000 | YST-1500 | |
| Nominal Pressure | kN | 630 | 1000 | 2000 | 3150 | 6300 | 6300 | 10000 | 15000 | |
| Side Cylinder Pressure | kN | 250*3 | 500*2 | 1000*3 | 2000*3 | 3150*3 | 5000*2 | 8000*2 | 12500*2 | |
| The Max. Working Pressure of Fluid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| The Max.Distance between Working Table and Slider | mm | 500 | 900 | 1120 | 1250 | 1800 | 1200 | 1500 | 1800 | |
| Slider Stroke | mm | 230 | 8-22 | 5-14 | 8-22 | 1000 | 500 | 800 | 800 | |
| Side-Cylinder Stroke | mm | 150 | 100 | 200 | 200 | 350 | 350 | 400 | 400 | |
| The Height Between Working Table and Ground | mm | 800 | 860 | 550 | 650 | 500 | 600 | 600 | 1550 | |
| The Max.Distance between Piston End of Side Cylinder | mm | 600 | 600 | 1000 | 1120 | 1800 | 1200 | 1400 | 2000 | |
| The Max.Distance Between Piston End of behind-side Cylinder and working Table Centre | mm | 300 | 300 | 500 | 450 | 900 | ||||
| The Height between Working Table Face and Side Cylinder Centre | mm | 100 | 120 | 220 | 320 | 350 | 320 | 400 | 500 | |
| Slider Working Speed | Quick Descend | mm/s | 20 | 160 | 120 | 80 | 120 | 60 | 60 | 100 |
| Press-in | mm/s | 4-6 | 10-23 | 12-24 | 1-10 | 6-13 | 1-8 | 1-6 | 1-6 | |
| Return | mm/s | 40 | 130 | 150 | 60 | 150 | 100 | 80 | 80 | |
| Speed of both side Cylincer extrusion | mm/s | 17 | 10 | 14-24 | 8-16 | 6 | 3-5 | 3-6 | 3-5 | |
| Power | Kw | 5.5 | 11 | 15.5 | 22 | 30*2 | 59.5 | 51.5 | 143.5 | |
| Overall Dimensions | Front-Back | mm | 1525 | 1700 | 2200 | 2535 | 4790 | 4132 | 4250 | 2000 |
| Left-Right | mm | 2870 | 3000 | 4800 | 5355 | 5860 | 4856 | 6650 | 4800 | |
| Height Above the Ground | mm | 2400 | 3260 | 5015 | 4312/4127 | 5920 | 6240 | 5780 | 3520 | |
| Structure | Four-Column | Four-Column | Four-Column | Four-Column | Four-Column | Gantry-Style | Gantry-Style | Gantry-Style | ||
The options of Cold Forging Press :
90 degree elbow extrusion with the side cylinder; Light Curtain Safety Device; Ultrahigh Pressurization System

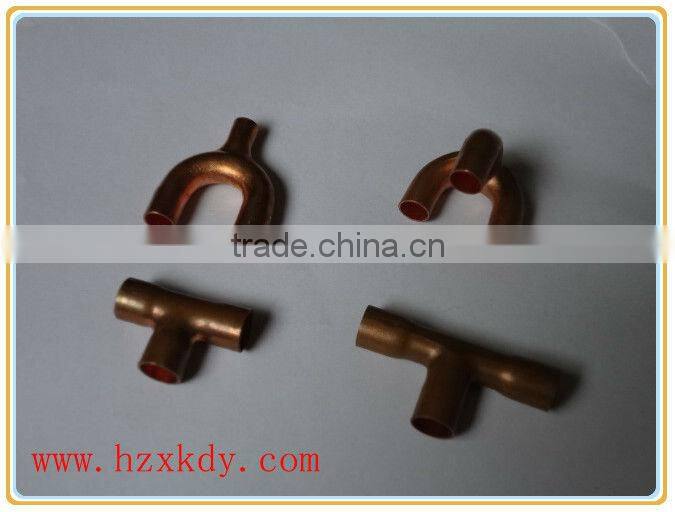

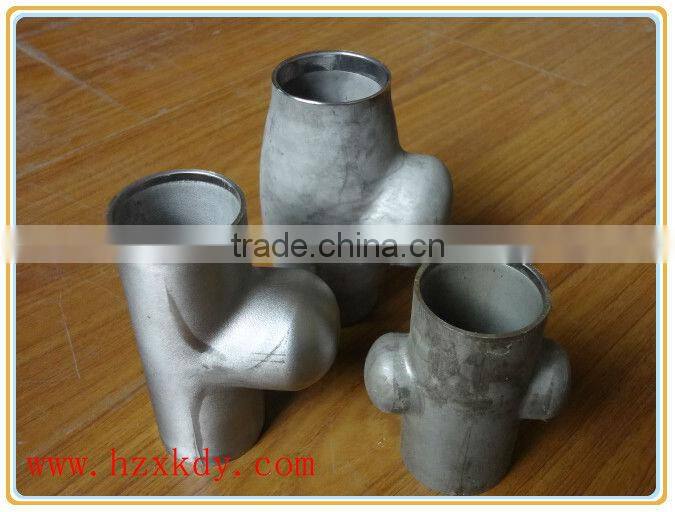

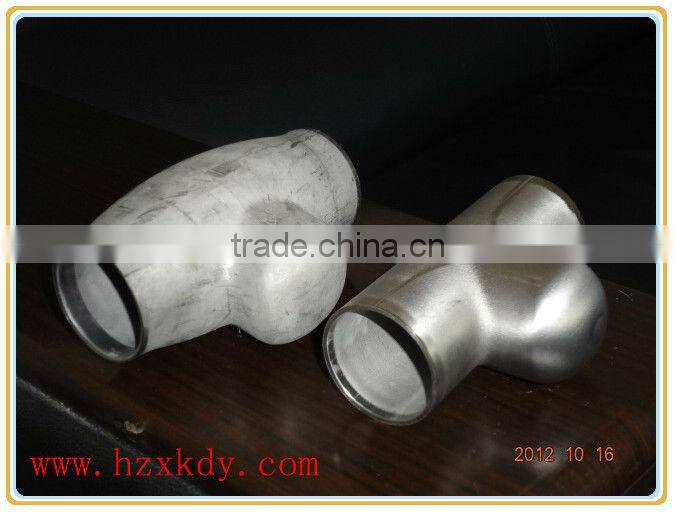

The products of Cold Forging Press
