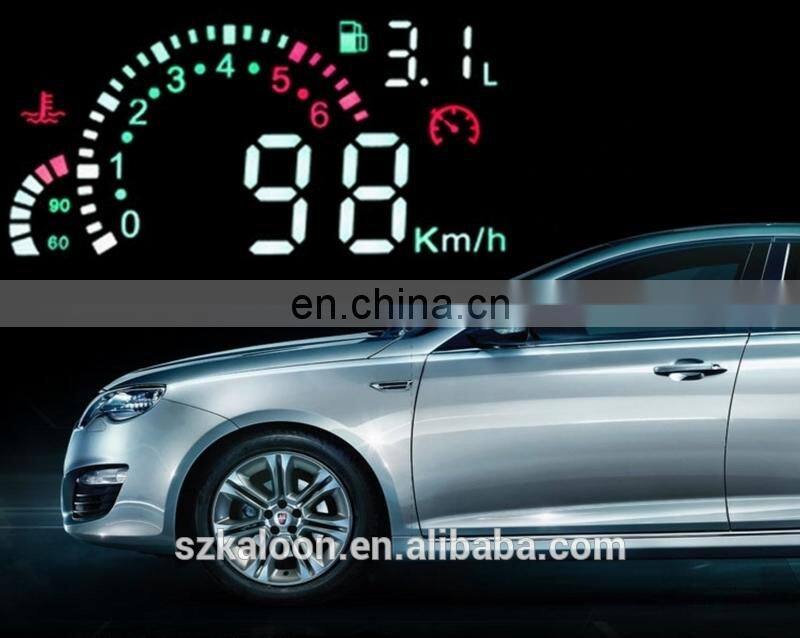

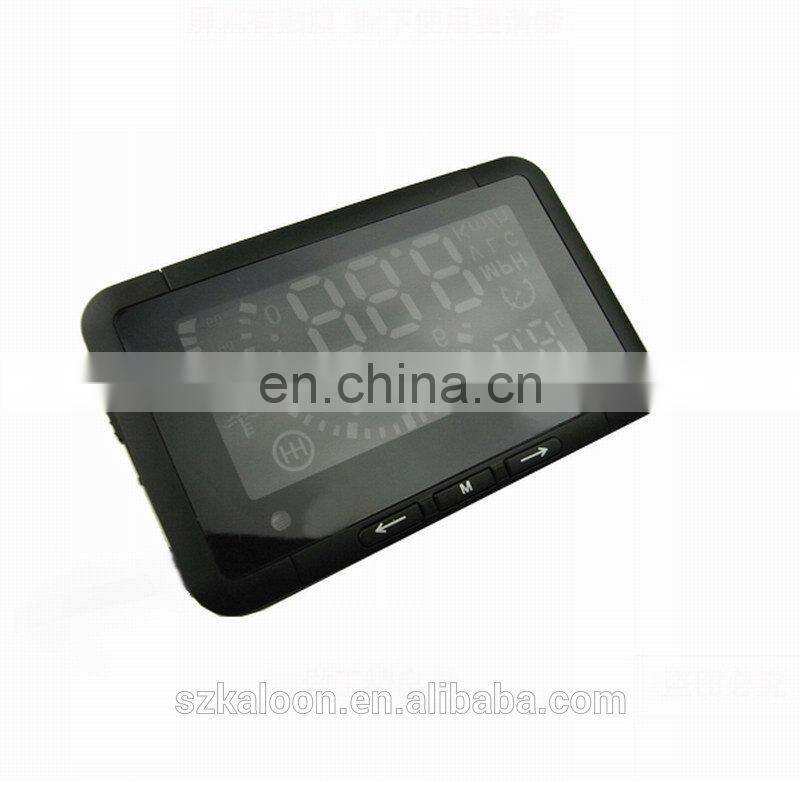

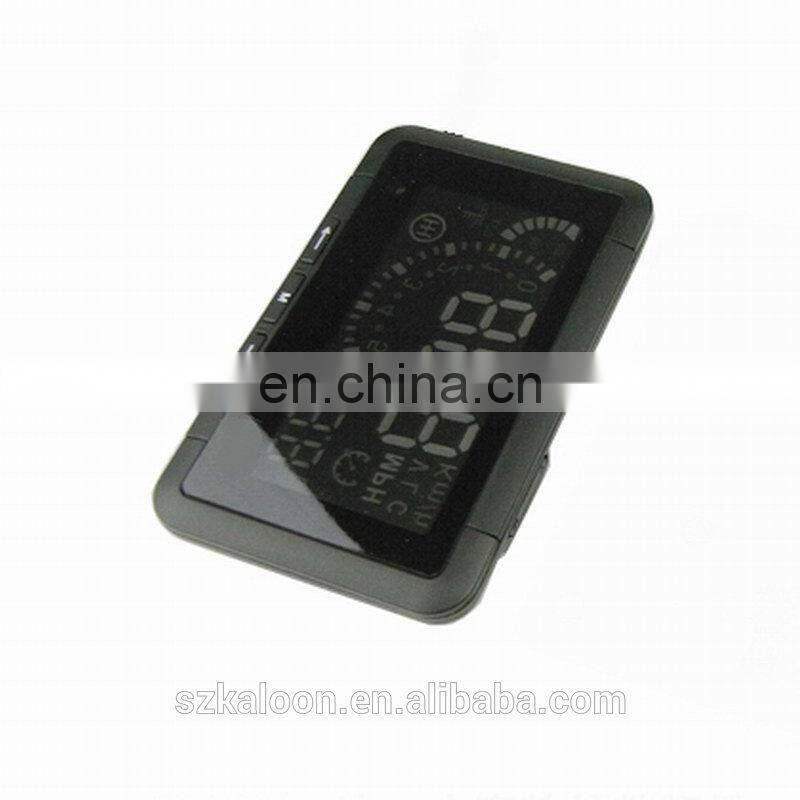

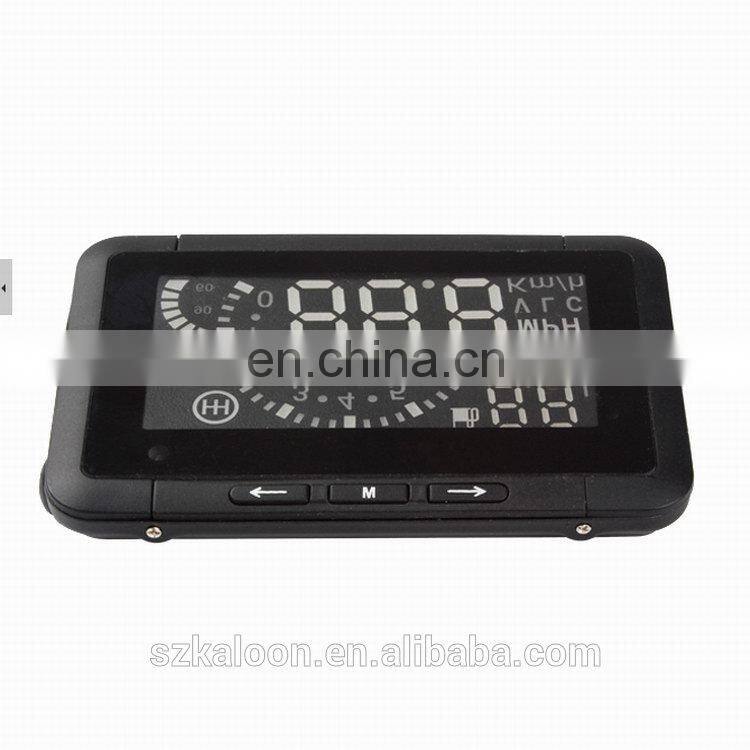

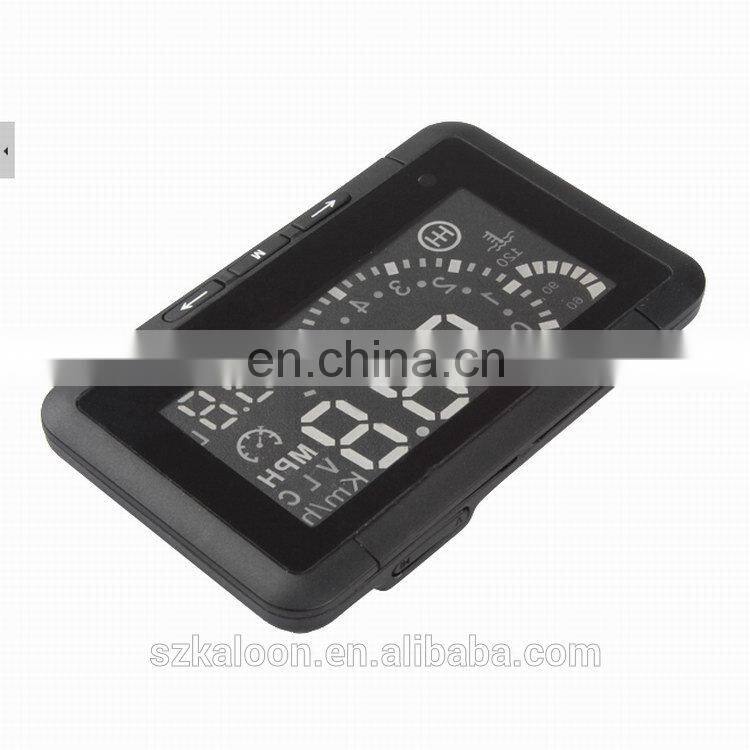

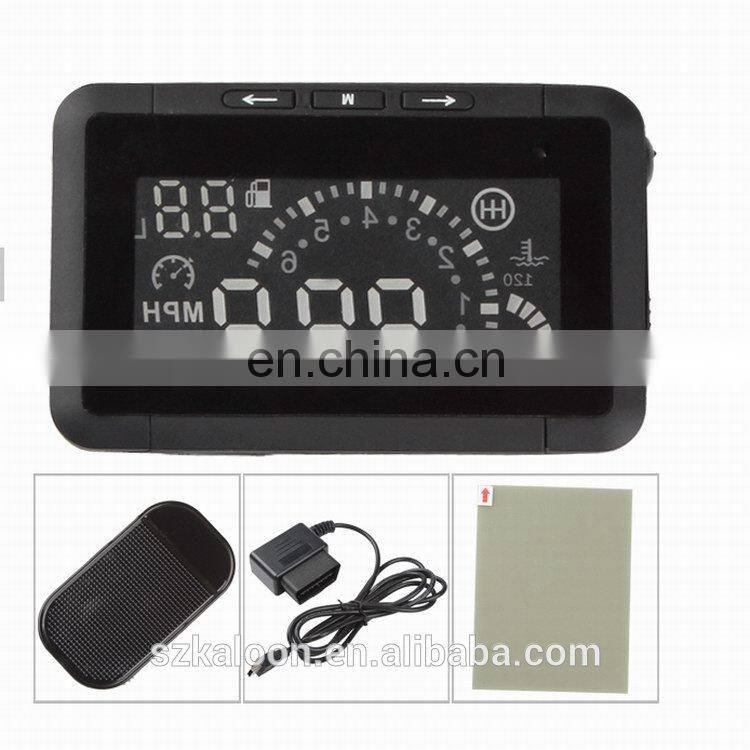

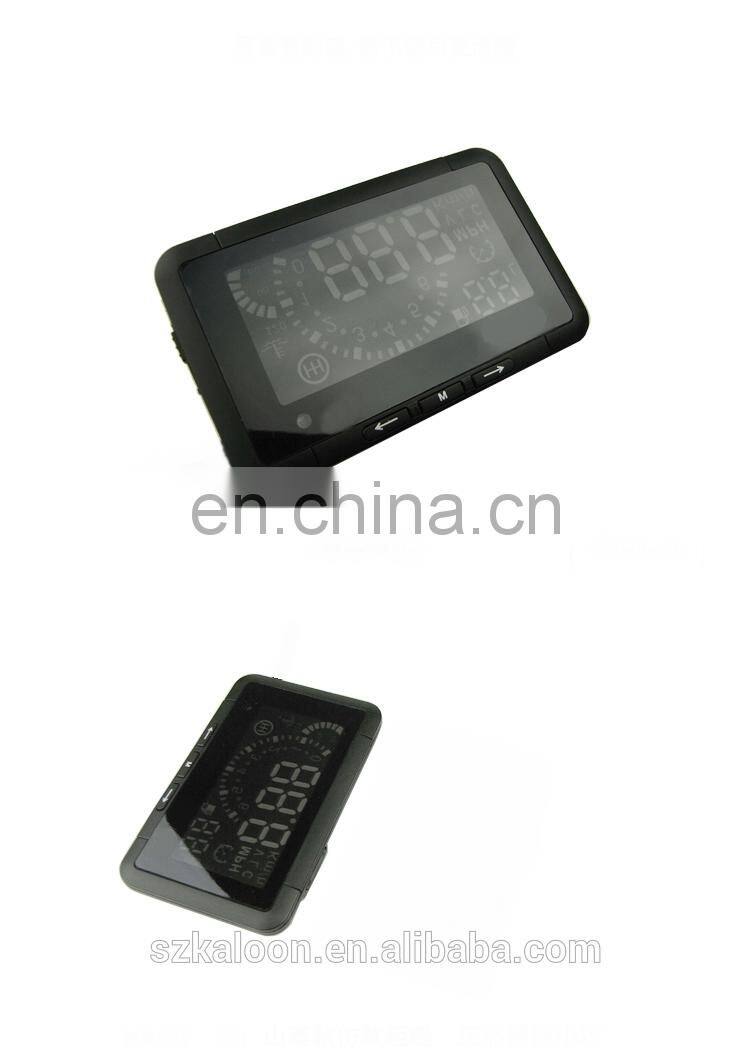

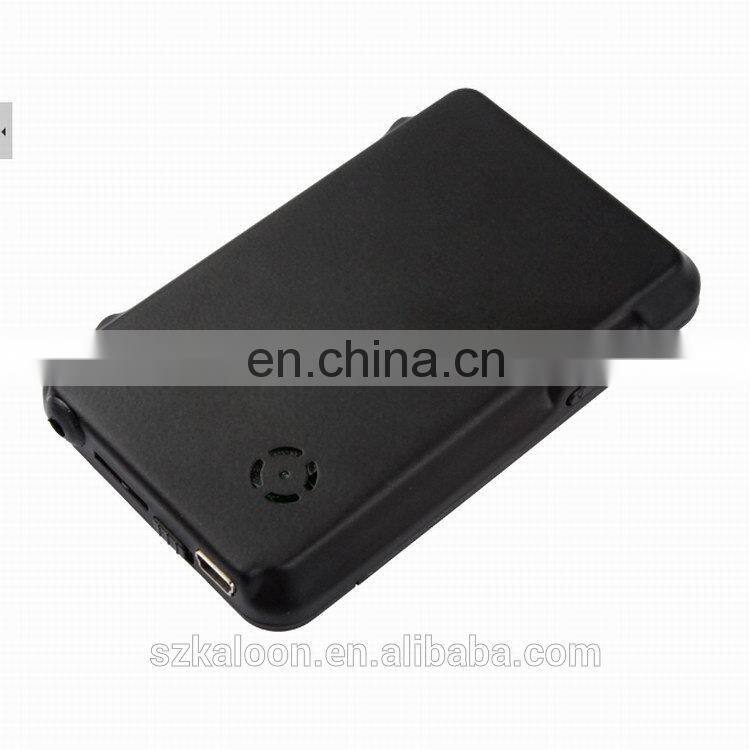

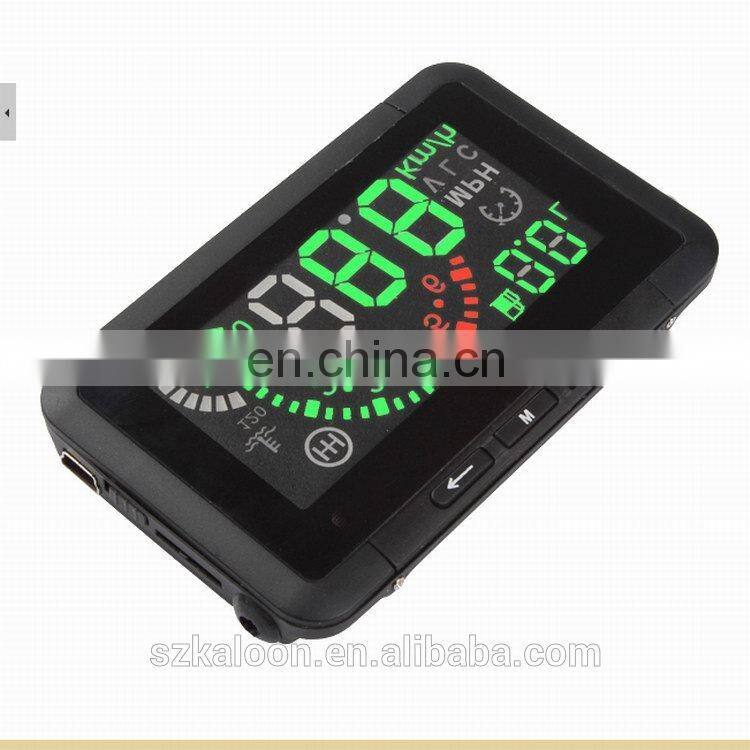

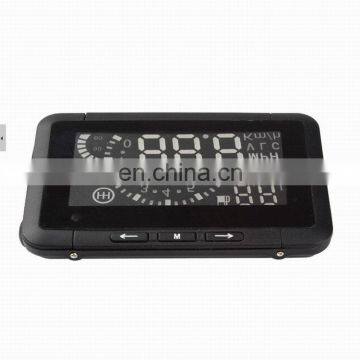

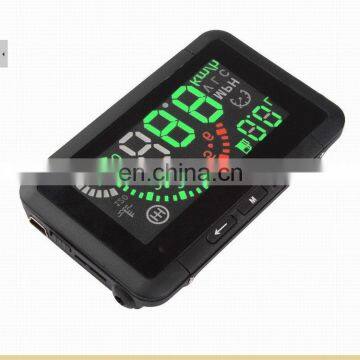

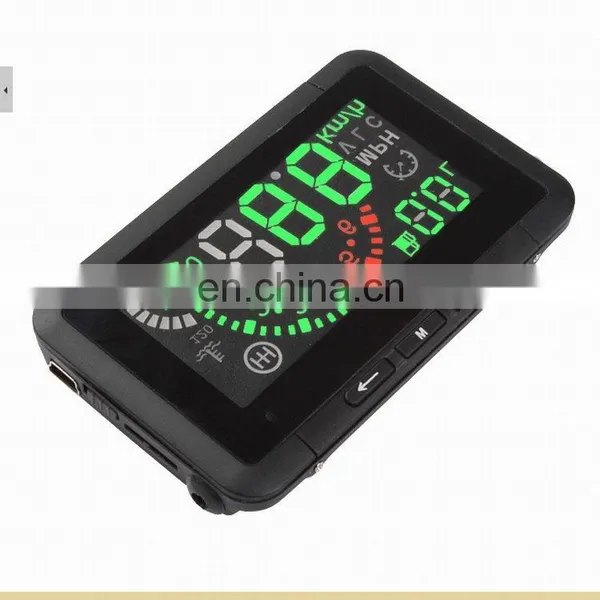

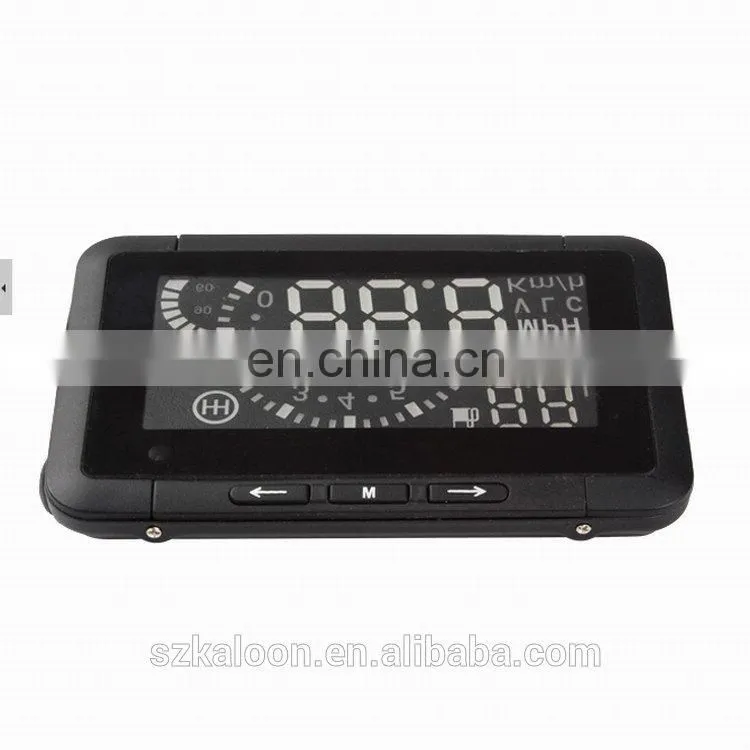

car HUD head up display
ITEM NO: KL-WHD01
Technical specifications:
1. Conditions of Use
Temperature-40c-+80 c at atmospheric pressure 86-106KPa
10% -95% relative humidity, noise <= 60dB (A)
2.Alarm sound level "= 30dB (A)
3.Operating voltage: 9V ~ 16Vdc (12Vdc/90mA)
4.Size: 88.50 x 54.50 x 11.50 mm
5. Wt: 140g (260g for package total)
6. The major electronic components are consistent with ROSH standard

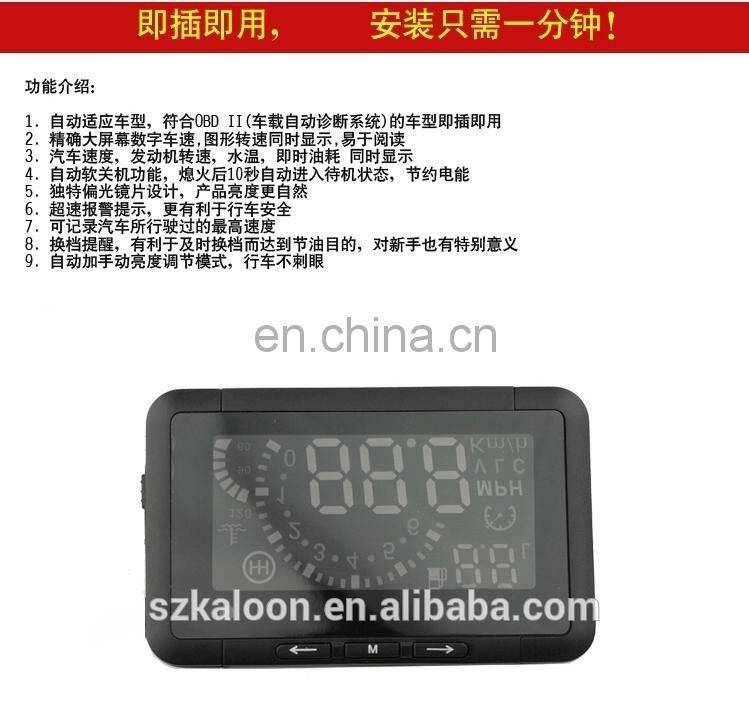

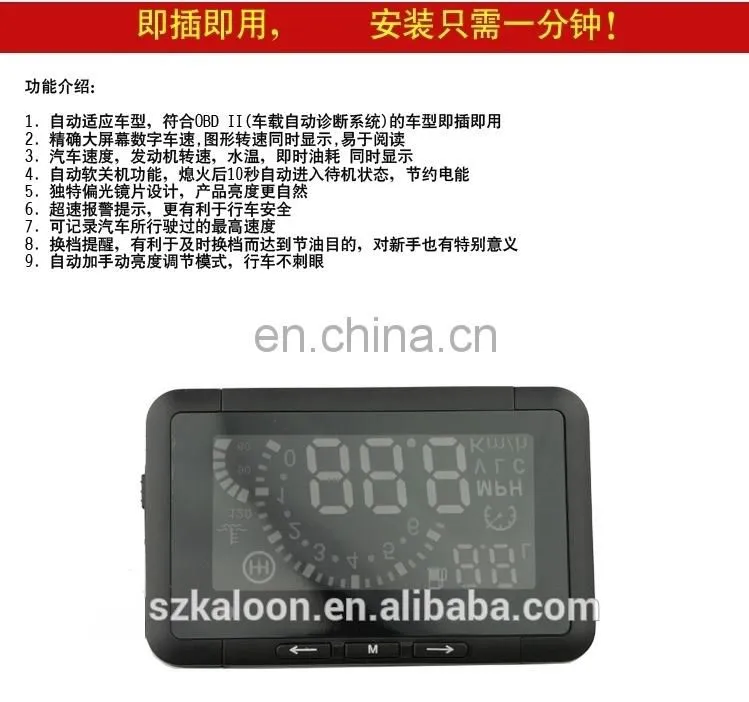

Function

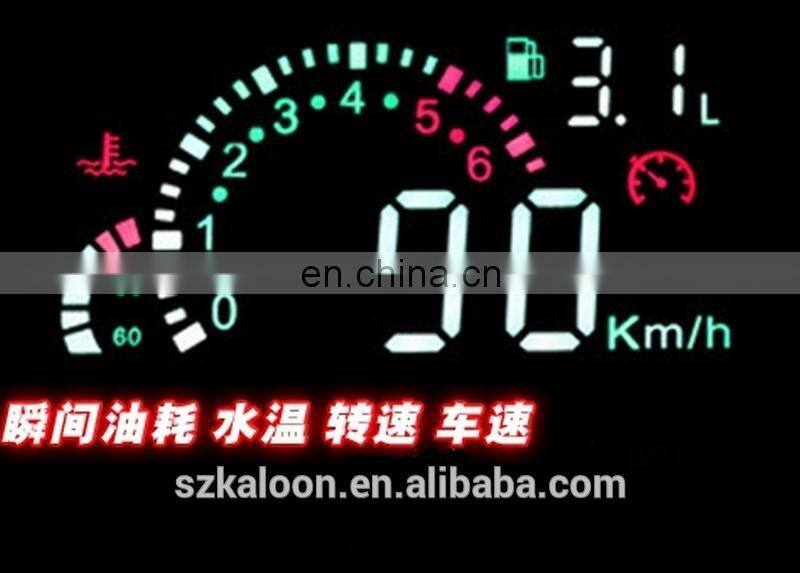

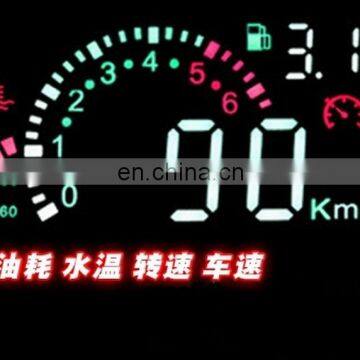

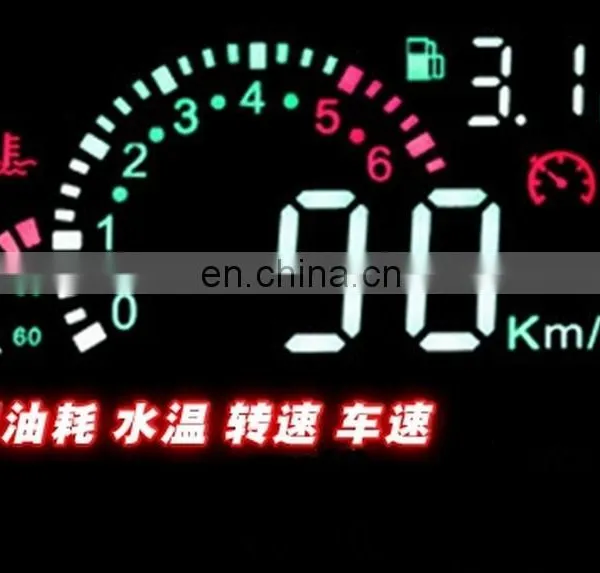

1 shows the current speed.
2 shows the speed of the engine, representative of light to reach the speed of scale, unit x1000 RPM.
3 shows the current temperature value of the car, when temperature reached 115 degrees alarm.
4 port upgrade the interface for the factory for testing and upgrades.
5 The power of the HUD.
6 temperature alarm lamp when the temperature reached 115 degrees, automatic red alert.
7 auto / manual brightness adjustment, you can manually adjust the brightness according to their environment; up self-locking to automatic light adjustment, toggle down to manually adjust brightness, automatically save the settings.
8 shift indicator on
When the engine speed and vehicle speed reaches a certain percentage (such as 2000 rpm, the speed of 60KM / H inside), suggesting that shift lights, gear tips to save fuel consumption to increase.
9 power cable with integrated design, full exposure and longer life.
10 Tips switch gear
CVT automatic transmission car or cars do not need to use when you can close without prompt, press the 0 shows that off, it shows 1, that open.
11 tips for speeding when the need to use the alarm switch, you can turn on or off, it shows 0, indicating that off, it shows 1, that open.
12 km in the International System of Units unit of general use kilometers per hour.
13 voltage, fuel consumption, temperature V is the voltage, L-hundred kilometers liters (currently unavailable), C for Celsius.
14 miles of flat
Some countries use mph as the speed measurement. HUD units for the miles you can switch display.
15 speed warning lights
Set off alarm in case of speeding, the speed that light up, and voice prompts.
16 instantaneous fuel consumption
In the case of a speed, shows hundred kilometers.
17 top speed record
Opened to the highest recorded speed, long press to clear.
18 Set the alarm rate
Launched in the automotive state, long press the M key to display 0, you can set the value of a single segment 35-175 alarm; Long press M button to display the 1, then enter the multi-alarm state, respectively, in speed of 60,80,100,120.
19 speed, water temperature, voltage switching
Click in turn show the speed, water temperature, voltage values.
20 Automatic light-sensitive
In the 7 item to set the automatic sensor mode, this feature is available.
