Home > Consumer Electronics > LED Display > Indoor LED Display > LANPAI Factory Price HOT SELL!! PH4.75 Dot Matrix Indoor Led Display Screen

LANPAI Factory Price HOT SELL!! PH4.75 Dot Matrix Indoor Led Display Screen

LANPAI Factory Price HOT SELL!! PH4.75 Dot Matrix Indoor Led Display Screen thumbnail-1
LANPAI Factory Price HOT SELL!! PH4.75 Dot Matrix Indoor Led Display Screen photo-1
US$ 5 - 98.6 MOQ: 30 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LANPAI(OEM)
Model Number:
D32192B
Contact Supplier Request Quote Chat Now
Shenzhen Panels Elec. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LANPAI(OEM)
Model Number D32192B
Usage Indoor
Tube Chip Color Other, Blue, three color,tri-color
Display Function Other, Graphics and Animation
Pixels Other, 4.75mm
Screen Dimension 152mm*912mm

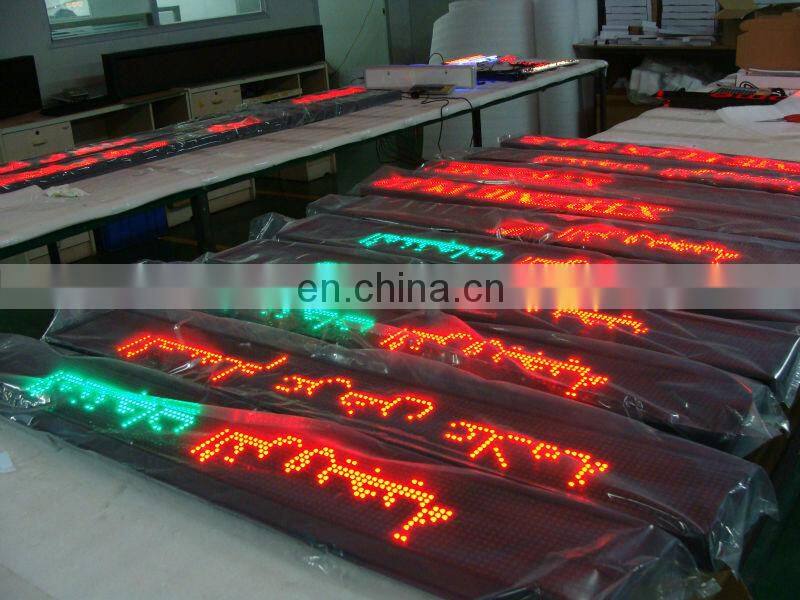

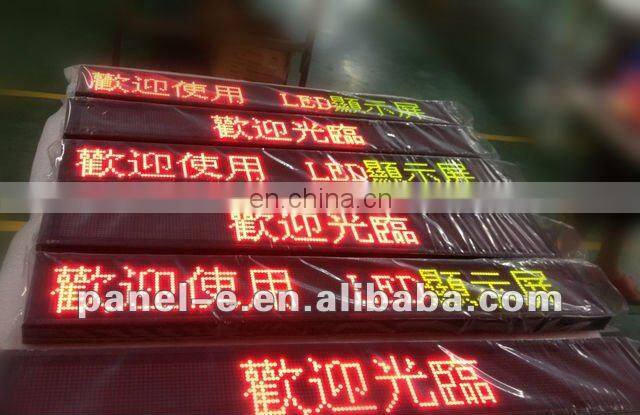

 LANPAI Factory price HOT SELL !! PH4.75 dot matrix indoor led display screen

Software  introduction

  1. Programmable via either remoter or PC.
  2. Port 232/485 communication.
  3. 25 actions (Snow, Spray, Twinkle, Rotate, Scroll, Star Burst, Wipe, Interlock……)
  4. All to run, Auto action, Auto color, Auto center.
  5. Fonts in Block(scans serif),decorative(serif),upper/lower, slim/wide, double.
  6. Build in Clock, Temperature, Brightness sensor.
  7. Auto on /off  and time scheduling.
  8. 4/8 or 16 class Brightness.
  9.  Full Screen Edit Software(SignMan). Max.512 frames stored in flash memory
  10. Wide range voltage, DC9-30V or AC110V/220V .

  11. Multi language: English/Spanish/Russia/Inter.char.set…..

    Able to show text, graphics and animation.


LED Message Board Features :



1.Pixel Pitch (mm) :4.75

2.Unit board size (W*H*T) : 638*120*40mm

3. Display resolution :128×16pixels
4. Max. Line: 2line,  16 English letter each lines

5. Pixel configuration :Tri-color(red,green,yellow)

6. Density of pixel (dots/ pc):  10,000dots/sqm
7. Best viewing angle  H: 120°V: 120°
8. Max. power consumption(W/ pc)  ≤100

9. Brightness  (CD/ m2)  ≥1200

10. Driving mode 1/8Scan Constant current
11. Working voltage:  wide voltage input range,DC9v-36V for taxi and bus,

                                           80V-240V(50Hz-60Hz) for general  use,e.g. bank
12. Working environment Temperature: 40~ +60
13. Related humidity:  10-90RH
14.Control Method:  PC control
15. MTBF:  10,000 hours
16. Life-span: 100,000 hours











Super convenience to control with both remocon and computer

Easy to input letters and message

Over 100 kinds of modes and lots of font

High quality LEDs of ultra bright & semi-permanent life

Greater Brightness than comparable units



Long durability and High reliability

Perfect water proof with Urethane or Silicon molding

Low maintenance cost and Low energy consumption

Sturdy, lightweight and thin aluminum cabinet

Mounting and cable kit included

Sun-visor for enhanced contrast(Option)





Kindly contact me if anything I can help with ,it's our pleasure to be on service of you.

Thank you very much for your reading.

Serena Wang/Shenzhen Panels Elec.Co,,Ltd
