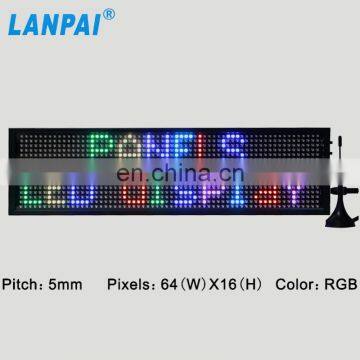

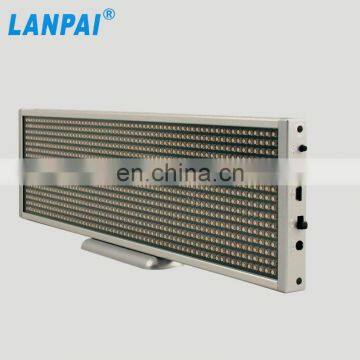

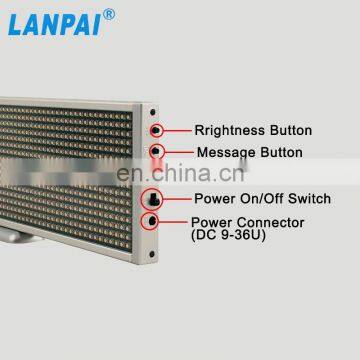

p5mm high brightness full color chip led display board
Specification and Parameter:
| Pixels | 16*64 | Screen Size | 32mm(W)* 8mm(H) |
| LED | 3528 Full color SMD | Frame Size | 340mm(W)* 94mm(H)* 15mm(T) |
| Pitch | 5.0mm | Weight | 418G/PCS, Include parts:620G |
| Brightness | 800CD/m2 | Fix way | Hoisting/put on desk |
| Drive Mode | Instant current,1/16 scans | Prevent grade | Indoor use |
| Refresh Frequency | ≥75HZ | Working Condition | -20℃~+50℃;15%~90%RH humidity |
| Bright Level | 4 level | Life Span | ≥50000 hours |
| View Angle | 120° | Control System | iBoard |
| Best View Distance | 1~15m | Communication | USB cable, App… |
| Working Power | AC90-260V | Ave Power | 15W |
| Max Power | 60W | Operation System | Windows XP/ Vista / 7/ 8/ 10 |
Features:
a). World languages supported.
b). Ability to display tri-color.
c). Ability to display single line or multi lines English text.
d). Ability to input 10 text or image messages (BMP, JPG, GIF), max 10000 English letters or 5,000 Asia Letters.
e).Rechargeable Lithium battery.
f). Power supply directly.
Software Instructions
a). If you insert the USB Cable to PC’s USB port and iBoard mini USB port . PC will find the iBoard and install the driver automatically. Found a new disk driver prompt message will be displayed.
b). Use Windows File Manger to open the windows file system, and a new removable disk will be found, it’s the iBoard driver.double click to open the directory, there’s an installation package in the directory., double clickicon to install the iBoard software with default steps, then the iBoard iconwill be in created in Windows Desktop, please double the icon to launch the iBoard Software.
c). Use Menu -> File -> Language to change language.
d). Use Menu -> Help -> View help, to launch User Manual.
Charging: Connect the iBoard to PC, switch to power on status. The battery level icon will be displayed and waiting few hours to charging while battery level display a full power image.
Packing Sets:LED Display,Power Adapter(5V1A),USB cable,CD(with Software and Manual)paper manual - 1pcs
Packaging Details:
Individual carton package
8pcs each export carton
p5mm high brightness full color chip led display board
p5mm high brightness full color chip led display board
