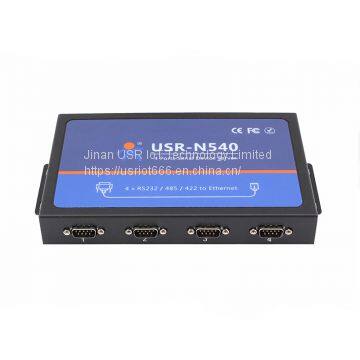

IOT Serial to Ethernet Converter, 4 Ports

Name: IOT Serial to Ethernet Converter, 4 Ports
Brand: USR IOT
SKU: 158496574
Availability: InStock

US$ 50 - 120 MOQ: 1 Unit

Key Specifications

Brand Name:

USR IOT

Place of Origin:

China

Model Number:

Model: USR-N4540

Jinan USR IoT Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

2 days

Brand Name USR IOT

Place of Origin China

Model Number Model: USR-N4540

Introduction of 4 ports Serial Ethernet Converter

USR-N540, 4 serial port Ethernet converter which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.

Character of USR-N540 Serial Ethernet Converter

Edit
Industrial Solution	TI Cortex M4 Solution, -40~85C
Web Server	Web socket/ Web to Serial
Modbus Gateway	Modbus RTU to Modbus TCP / Modbus Pollinig
Flow Control	CTS/RTS, XON/XOFF
Protection	Watchdog circuit, never cash ESD 8KV Anti-surge
Network	Network Printing 2 network links, each serial support sending data to two servers

Feature of 4 ports Serial Ethernet Converter

TI Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
Auto-MDI/MDIX,RJ45 port with 10/100Mbps
TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
4 ports can work independently at the same time
Can distinguish which serial port connects to the device via port number
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps
DNS and DHCP supported
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Built-in webpage;also can customize webpage for users
The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
Support upgrade firmware via network
Support keepalive,rapidly detect dead links
Support account and password,can be used to page login and network settings
Support one channel Websocket,realize bidirectional transparent transmission between webpage and serial 0
Support Modbus RTU to Modbus TCP
Support UDP broadcast function
Each serial can work as rs232,rs485 or rs422; Default port is RS232 BD9 male port
Four channel serial communication indicator: TX/RX, CTS/RTS, XON/XOFF
Support DC adapter and 5.08-2 terminal power supply
Reload button,one key to restore default settings
RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation

Serial Port of Serial Ethernet Converter (Default Port: RS232 DB9 male port)

Application Field of 4 ports Serial Device Servers

Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
