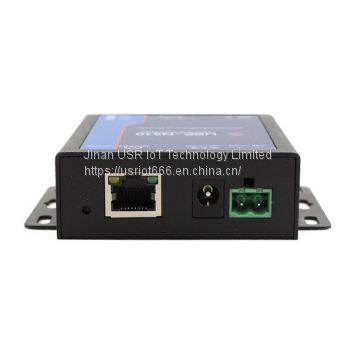

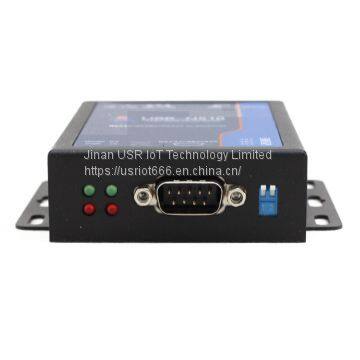

Serial ethernet converter USR-N510, which can realize bidirectional transparent transmission between RS232/RS485/RS422 and Ethernet. Through simple settings via webpage or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by serial ethernet converter. USR-N510 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Power Supply | DC/Terminal type 5V~36V |
| Serial Port | RS232/RS485/RS422, 3-in-1 serial port |
| Serial Signal | RS232: TX/RX, CTS/RTS
RS485:A/B/G |
| Flow Control | Software: XON/XOFF |
| Modbus Gateway | Modbus TCP to Modbus RTU in bi-directional
Modbus Polling |
| Advanced Character | -Network Printing
-Web socket: Serial to Webpage -Modify MAC -Hardware watchdog -ARP of server domain name |
| Certification | CE/FCC/RoHs/WEEE |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client |
| Built-in web page | Customized web page is acceptable |
| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
Point 1
Ethernet 10/100Mbps, support Auto-MDI/MDIX
A port can correspond to 2 Sockets
Provide PC TCP/IP socket programming examples such as VB, Andriod, IOS etc.
Point 2
Virtual serial port, provide corresponding software USR-VCOM
Baud rate: 600bpgs~230.4Kbps
Reload button to restore default settings
Support keep alive, rapidly detect dead links.
