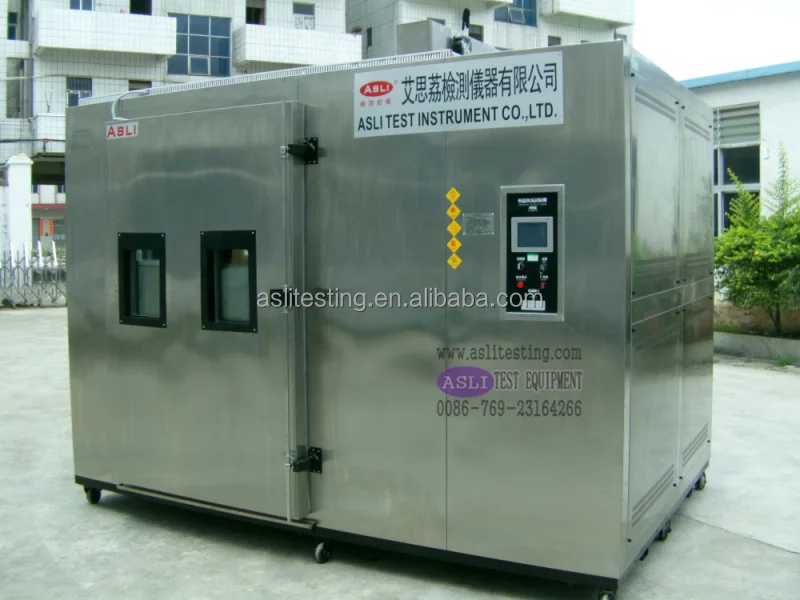

ASLi Brand Customized Walk In Type High Temperature Aging Test Chamber
ASLi Brand Customized Walk In Type High Temperature Aging Test Chamber Application:
High temperature aging test room, large capacity high temperature test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
ASLi Brand Customized Walk In Type High Temperature Aging Test Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
4. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series(R232,R404)
5. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
6. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature.
7. Inserted mobile pulley, convenient for movement a relocation, with strong positioning screws.
ASLi Brand Customized Walk In Type High Temperature Aging Test Chamber Technical Parameters:
| Model | TAR-volume |
|
Inner Dimensions (cm) |
Customers designated space size and design |
| Temperature Range | RT+10℃~80℃(80℃ ~150℃ is optional) |
|
Analytic Accuracy / Distribution Uniformity of Temperature |
0.1℃ /±2.5℃; |
| Control Accuracy of Temperature | ±0.5℃; |
| Temperature Rising Speed Rate |
Temperature rising speed: approx. 0.1~3.0 (℃/min) |
| Cooling System | Refrigeration by compressor, according to customer's requirements |
| Protection Devices | Fuse-free switch, overloading protection switch for ompressor, high and low voltage coolant protection switch,over-temperature protection switch, fuses, fault warning system |
|
Optional Accessories |
Slope for cart , Recorder |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC380V,50/60HZ ,3 ph 5 Lines |
