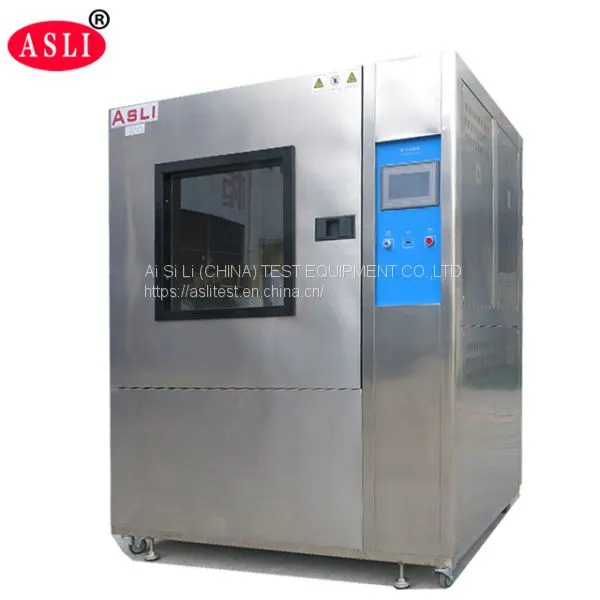

ASLi Brand Rain Spray Test Chamber Apply To Quality Inspection Application:
Rain Spray Test Chamber is applied to test the shell's waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product's waterproof performance and assess the product's waterproof performance's loss classification.
ASLi Brand Rain Spray Test Chamber Apply To Quality Inspection Features:
1. Water pressure and flow rate adjustable.
2. Unique sprinkler can stably control the rain quantity and pressure.
3. This equipment (Model B) can make the test products' temperature rising from RT-85℃
4. Inner case's material is imported steel plates, Shell is made of #304 stainless steel.
5. This equipment applies rain spray test for products and parts.
ASLi Brand Rain Spray Test Chamber Apply To Quality Inspection Out Case Protection Grade:
1. IPX1, IPX2 test
IPX1, X2 Negative pressure to absorb design
Unique nozzle, not easy to block
2.IPX3, IPX4 test
Pipe swing-type designed with gear motor, angle and speed adjustable.
Nozzle Angle aiming at the circle center
3.IPX5, IPX6 test
IPX5, IPX6 titanium alloy Nozzle
Water column non-proliferation
4. IPX9K test
IPX9K imported pump, high temperature & high pressure resistant
Standard titanium alloy Nozzle
Homogeneous distribution of pressure.
ASLi Brand Rain Spray Test Chamber Apply To Quality Inspection Technical Parameters:
| Model | RT-1000A | RT-1000B |
| Test Standard | JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 standard | |
|
Internal Dimension WxHxD (mm) |
1000x1000x1000 | |
|
External Dimension WxHxD (mm) |
1600x1900x1400 | |
| JIS Test | Flow:1.8L/Min~3.9L/Min | Flow:24.5L/Min~39.2L/Min |
| Pressure:0.1kgf/cm2~0.3 kgf/cm2 | Pressure: 1kgf/cm2~3 kgf/cm2 | |
| Drop Test |
1~1.5mm/Min Adjustable IPx1 IPx2 drop speed: 1~1.5mm/Min, adjustable |
3~3.5mm/Min Adjustable drop speed:3~3.5mm/Min, adjustable |
| Rain of Pipe-Swing Test |
IPx3 IPx4 swing pipe: RT~±80℃ Flow:0.07L/min per Nozzle |
|
| Water Spray Test |
IPx3 IPx4 jet:2.5m~3m flow :12.5L/min ~100L/Min |
|
| High Pressure Jet Test |
80Kgf~100Kgf IPx9K pressure of jet:80Kgf~100Kgf Flow:14~16L/Min |
|
| Rotating Speed of Rotating-Plate | 4~20 RPM adjustable | |
