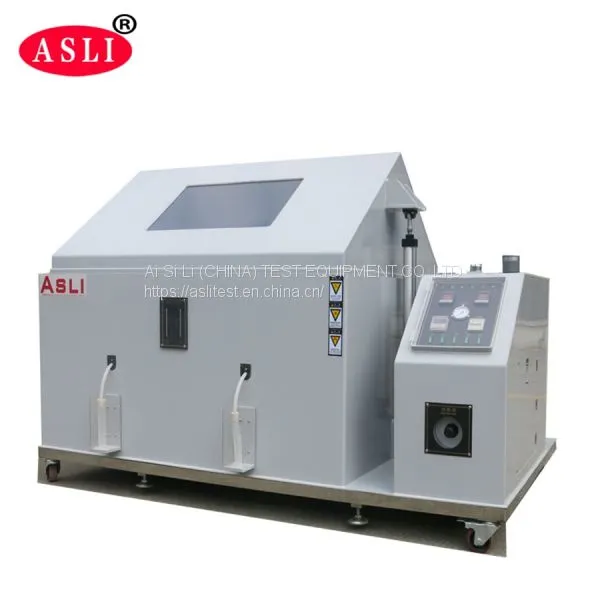

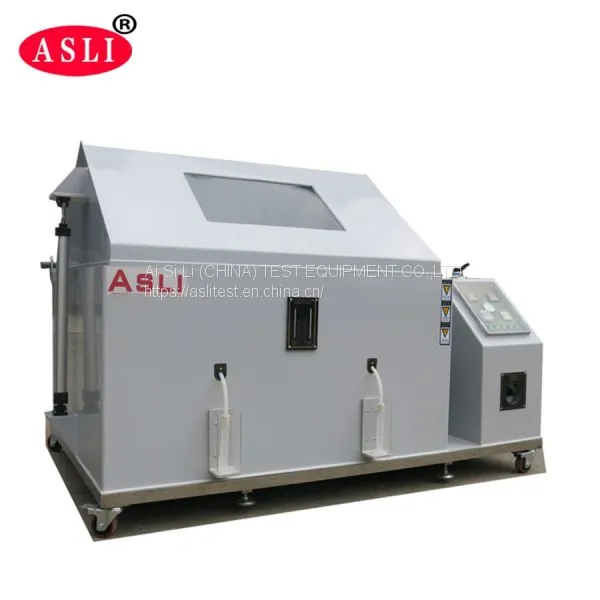

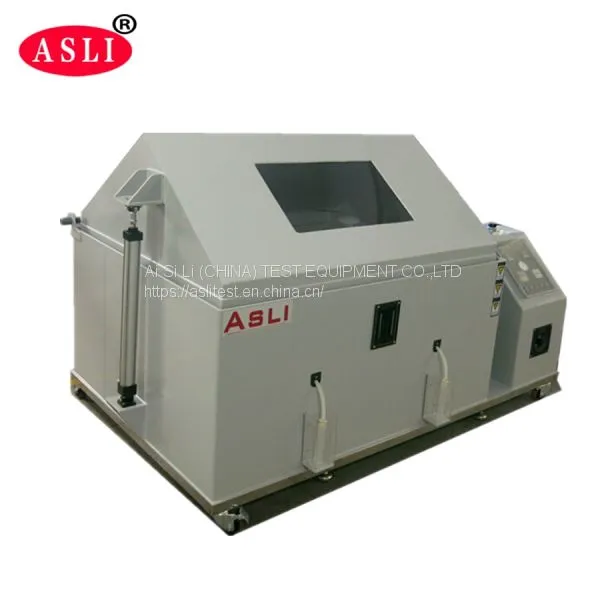

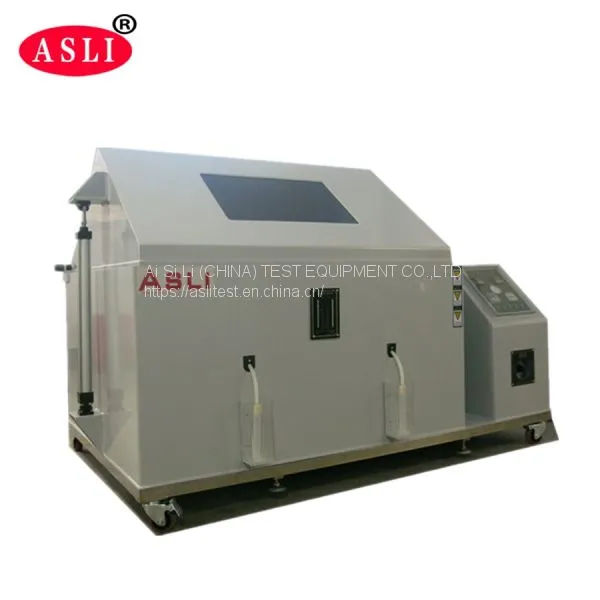

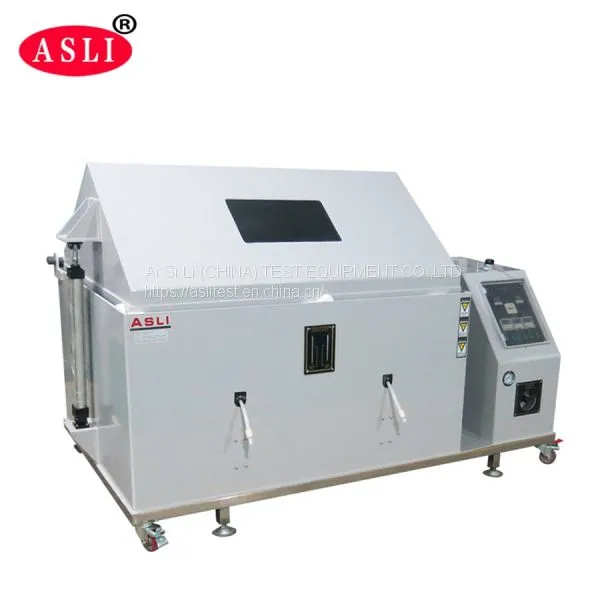

Temperature Humidity Combined Salt Spray Test Chamber
Application:
Temperature Humidity Salt Combined Spray Test Chamber is used for imitating natural status in increase imitation test. The imitating condition is harder than status that we usually meet. The tester can combine the follow status such as: salt smog, dry, humidity, normal temperature, low temperature. The tester is for product used in intense changeable environment, such as: parts of automobile, navigation equipment, camera equipment, building material, electroplate coating and resistant to metal electrolytic corrosion in electrical system.
Features:
1. Adopt Humidity and temperature Controller with LCD touch screen digital display, R232 or R485 communication interface. (Temperature and humidity recorder, can keep complete records of the humidity and temperature graphs. This is optional.)
2. Operation mode: programmable or constant.
3. Capacity of Programmable operation is 100 groups 100 steps per group, and 100H per step.
4. Capacity of constant operation is 10000H.
5. Memory function: in case of a power cut, the machine can resume the unfinished test as soon as power is recovered.
Technical Parameters:
Model |
THS-900A |
THS-900B |
Test Standard |
ACSS,SOAK,DRYAIR,HUMI,ROOMAIR |
ACSS,DRYAIR,HUMI |
Inner Dimension |
900×600×500 |
900×600×500 |
External Dimension |
1500×1300×1000 |
1500×1300×1000 |
Temperature Range |
-10℃ ~ +80℃ |
RT +10 ℃ ~ +80℃ |
Humidity Range |
60% ~ 95%RH (Temperature RT+10℃ ~ 70℃) |
60% ~ 95%RH(50℃ ~ 70℃) |
Analytic Accuracy / |
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. |
|
Control Accuracy of |
±0.5℃; ±2.5% R.H. |
|
Pressure Bucket |
Saline test method (NSS ACSS) 47±1 ℃ |
|
Compressed Air |
1.0~6.0 |
|
Spray Volume |
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) |
|
Spray Method |
Continuous Spray |
|
Power |
AC220V 1∮ 3 lines |
|
Certificate of Test Chamber:
China official 3rd party calibration report
CE certiification
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
3. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
4.What's your main products?
Environmental chambers, temperature (humidity) chamber, ,ESS chamber, Walk in stability chamber,Vacuum oven,PCT /Hast chamber (Highly accelerated stress test chamber)
Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
