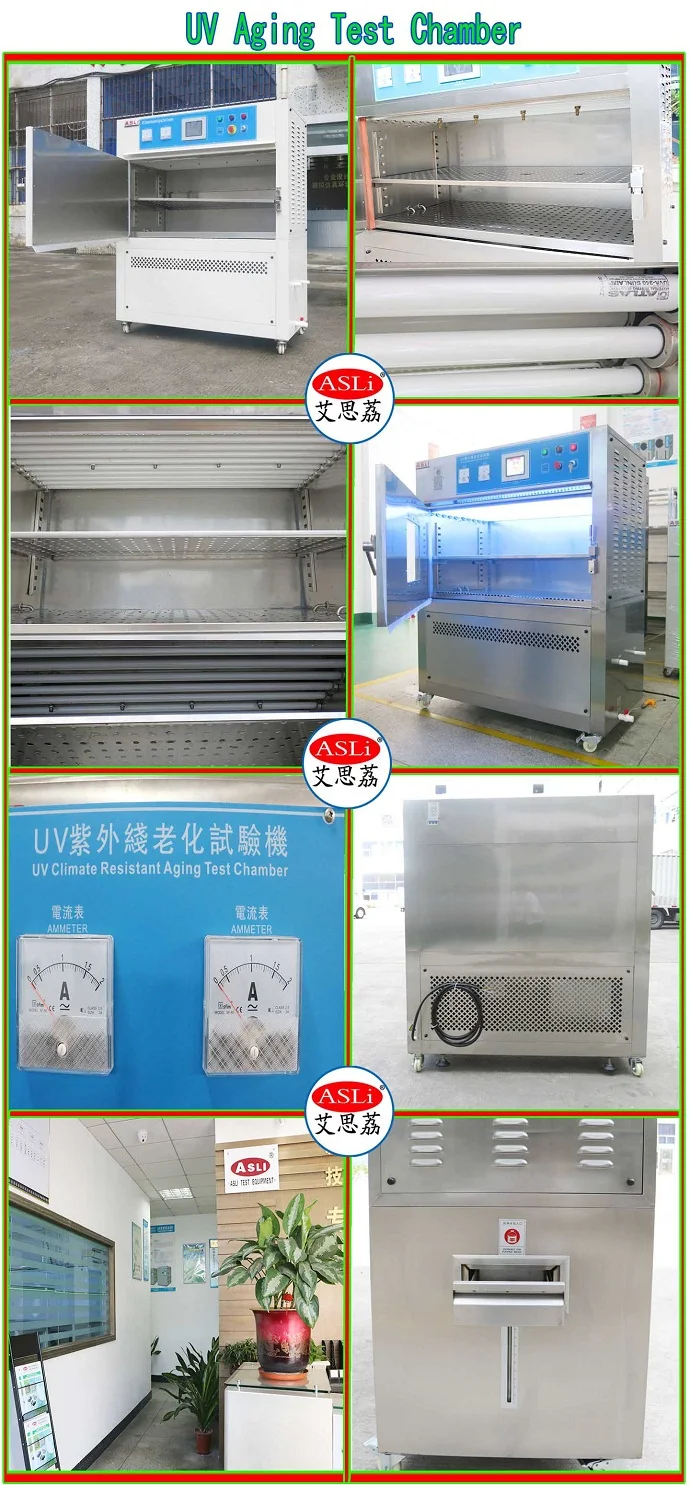

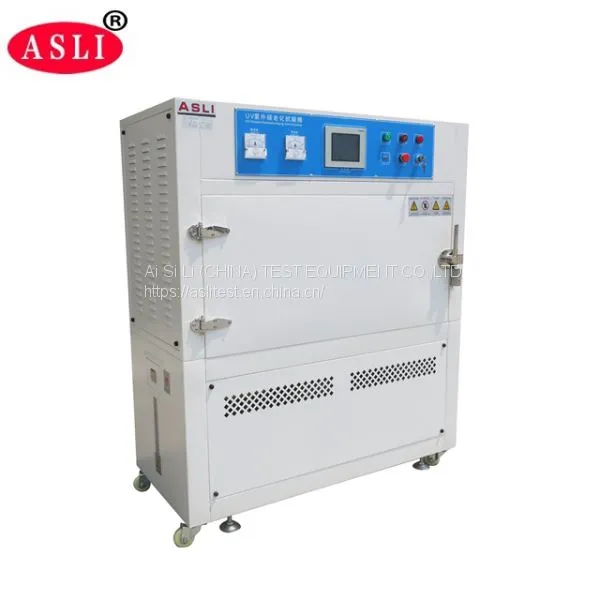

High Quality Digital Touch Screen Programmable Uv Aging Test Chamber Application:
UV Climate Resistant Aging Test Chamber simulates the sunlight damage on the material and product, it is widely used in the evaluation of material climate resistantance.
High Quality Digital Touch Screen Programmable Uv Aging Test Chamber Technical Parameters:
Model |
UV-290 |
|
Internal Dimension |
W1150xH500xD500(mm) |
|
External Dimension |
W1350xH1500xD600(mm) |
|
ApplicableStandard |
GB/T16422,GB/T5170.9 |
|
TemperatureRange |
R.T.+10℃~+70℃ |
|
Temperature Fluctuation |
±0.5℃ |
|
HumidityRange |
≥95%R.H. |
|
Environmental Temperature for Use |
+5℃~+35℃ |
|
Test Light Source |
UVA,UVB UV light |
|
Wave Length of Test light Source (nm) |
280~400 |
|
Center Distance Between Sample and Tube (mm) |
50±2 |
|
Center Distance Between Tubes (mm) |
75±2 |
|
Material of Internal Case |
Stainless steel with sanding polish |
|
Material of External Case |
Stainless steel with sanding polish or painting coated |
|
Heating the Humidifier |
Electric-heat type steam generator ,heating and humidification |
|
Safety System |
Operation Interface |
Digital smarts touch key input (Programmable) |
Running Mode |
Program/constant running type |
|
Input |
Black panel thermometer.PT-100 Sensor |
|
Standard Configuration |
1 pc Stainless steel shelves |
|
Safety Configuration |
Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, touch the ground protection |
|
Power |
AC220V 1 ph 3 lines, 50HZ |
|
