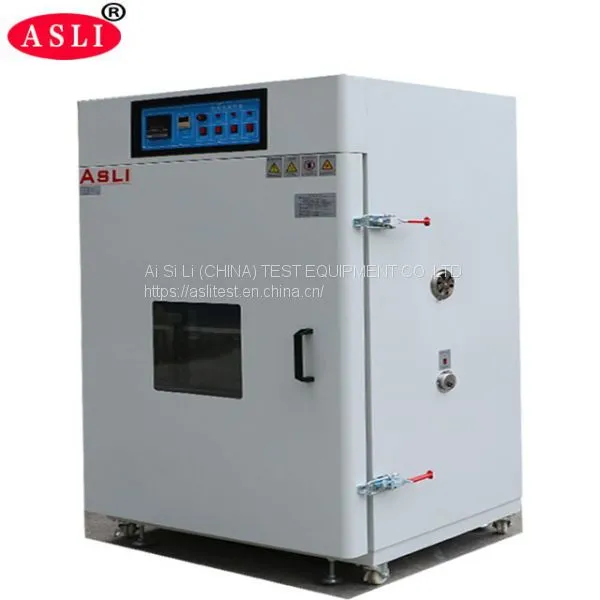

High Temperature Nitrogen Oven
Application:
Nitrogen High Temperature Oven is used in the electronics industry, electrical, communications, hardware, chemical, sports equipment, printing, pharmaceuticals, footwear, automotive spare parts and other industrial for baking, drying, preheating and tempering, aging purposes.
Features:
1. Microprocessor temperature controller
2. Rapid sterilization time
3. Forced air convection
4. Auto stop when temperature over limit
5. Air inlet adjustment & timing control, the device is equipped with imported nitrogen flow meter, and with a quick plug nitrogen filling interface, convenient nitrogen filling and control the nitrogen flow.
Technical Parameters:
Model |
RHD - 45 |
RHD - 60 |
RHD - 90 |
RHD - 120 |
|
Inner Dimension W×H×D (mm ) |
450×400×400 |
500×600×500 |
600×900×500 |
800×1200×700 |
|
Outer Dimension W×H×D (mm ) |
650×900×550 |
700×1200×650 |
850× 1600×700 |
1200× 1680×900 |
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||
Temperature Range |
RT~200℃, (300℃~500℃ is special optional) |
|||
Analytic Accuracy / Distribution Uniformity of Temperature |
0.1℃/ ±2.0℃;(When temperature is 100℃) |
|||
Control Accuracy |
±0.5℃; |
|||
Temperature Rising Speed Rate |
Temperature rising speed rate: RT~200℃; Approx. 35mins |
|||
Control Method |
Micro PID+SSR+Timer |
|||
Nitrogen Device |
Nitrogen in-out interface and pressure relief valve on the back of equipment, |
|||
Storage Shelf |
Two layers |
|||
Observation Glass Window |
When temperature is RT-200℃ ,with observation glass widow When temperature is 200℃-500℃ ,without observation glass widow |
|||
Power |
AC 220V , 1∮ 3 Lines, 50/60HZ ; AC380V ,3∮ 5 Lines, 50/60HZ |
|||
Certificate of Test Chamber:
China official 3rd party calibration report
CE certiification
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
3. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
4.What's your main products?
Environmental chambers, temperature (humidity) chamber, ,ESS chamber, Walk in stability chamber,Vacuum oven,PCT /Hast chamber (Highly accelerated stress test chamber)
Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
