Pvc Pipe Extruding Line
DETAILS INTRODUCTION:
PVC pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

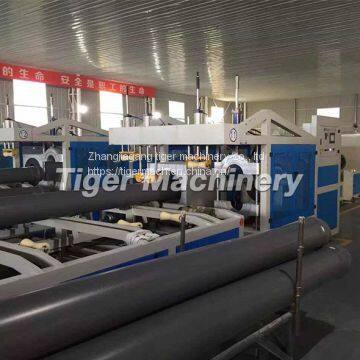

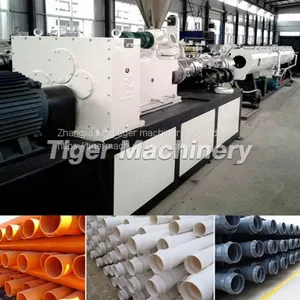

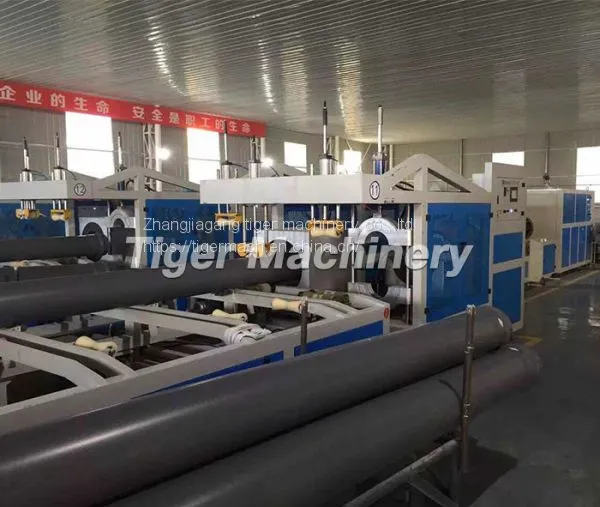

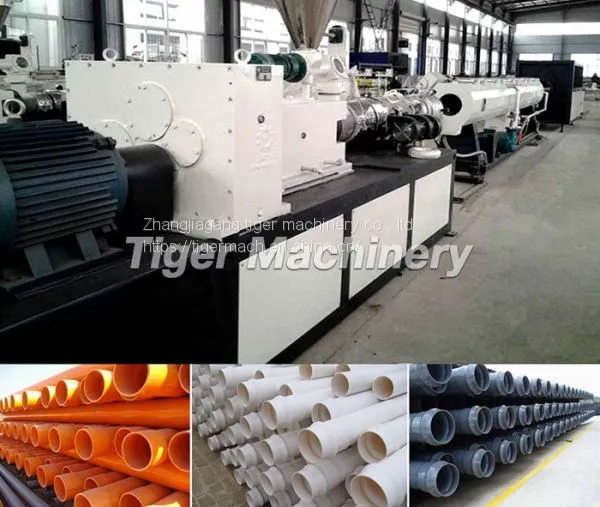

This machine group consists mainly of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.
The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.
TECHNICAL PARAMETER (FYI):
SPECIFICATIONS FOR PVC PIPE PRODUCTION LINE | ||||||
Model |
Pipe Diameter Range(mm) |
Extruders |
Max Output(kg/hr) |
Max Speed(m/min) |
Total Power (KW) |
Line Length(m) |
PVC-50X2 |
16-50 |
SJSZ51/105 |
150 |
6 |
60 |
20 |
PVC-63 |
16-63 |
SJSZ55/113 |
120 |
10 |
45 |
20 |
PVC-110 |
50-110 |
SJSZ65/132 |
150 |
6 |
60 |
24 |
PVC-160 |
63-160 |
SJSZ65/132 |
300 |
5 |
100 |
24 |
PVC-250 |
110-250 |
SJSZ80/156 |
400 |
3.5 |
120 |
28 |
PVC-315 |
160-315 |
SJSZ80/156 |
400 |
3 |
160 |
28 |
PVC-450 |
250-450 |
SJSZ92/188 |
700 |
1.5 |
200 |
36 |
PVC-630 |
315-630 |
SJSZ92/188 |
700 |
0.9 |
230 |
36 |
