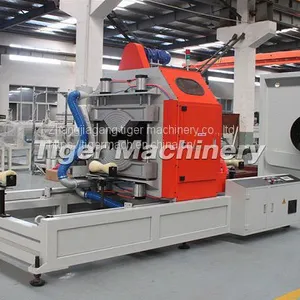

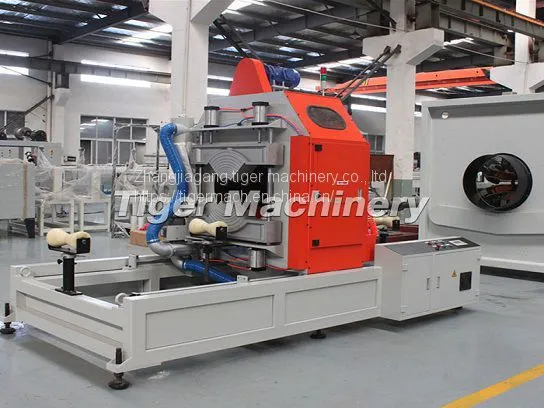

Large PE Pipe Production Machine
PVC Pipe Making Machine
PVC Pipe Line
DESCRIPTION FOR PE PIPE PRODUCTION MACHINE
This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS
l. Single screw extruder
2.Co- extruder to manufacture marking multi-layers of pipe
3. Die head
4. Vacuum tank due to diameter, it can be designing of single, double vacuum chambers
5. Cooling tank due to diameter, the numbers of cooling tanks can be one or two
6. Haul-offs due to diameter, it can be designing of double or three caterpillars
7.Cutter no scraps cutter.
8. stacker
MAIN PARAMETERS:
Item |
SJGF110 |
SJGF250 |
SJGF400 |
SJGF630 |
SJGF800 |
SJGF1000 |
SJGF1200 |
Dia.(mm) |
20-110 |
110-250 |
250-400 |
400-630 |
630-800 |
500-1000 |
630-1200 |
Main machine |
SJ25/25SJ65/33 |
SJ25/25SJ75/33 |
SJ25/25SJ90/38 |
SJ25/25SJ120/38 |
SJ150/38 |
SJ150/38 |
SJ90/38SJ120/38 |
Max. capacity (kg/h) |
80-160 |
200-350 |
400-600 |
700-900 |
900-1200 |
900-1200 |
900-1400 |
Total power (KW) |
110 |
260 |
400 |
500 |
600 |
600 |
900 |
