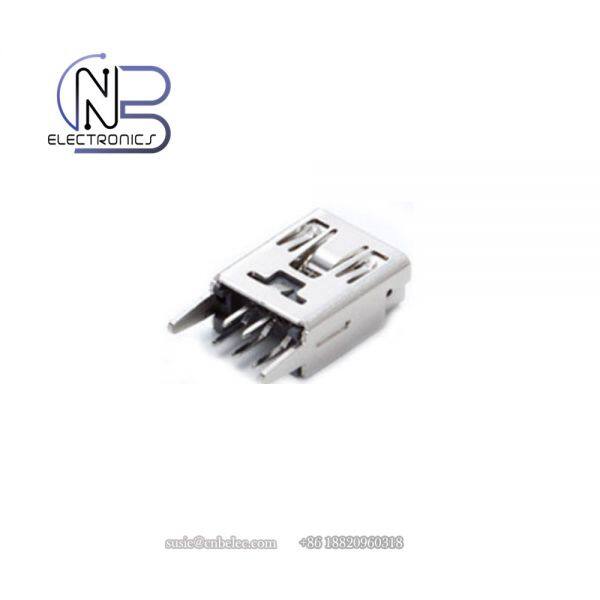

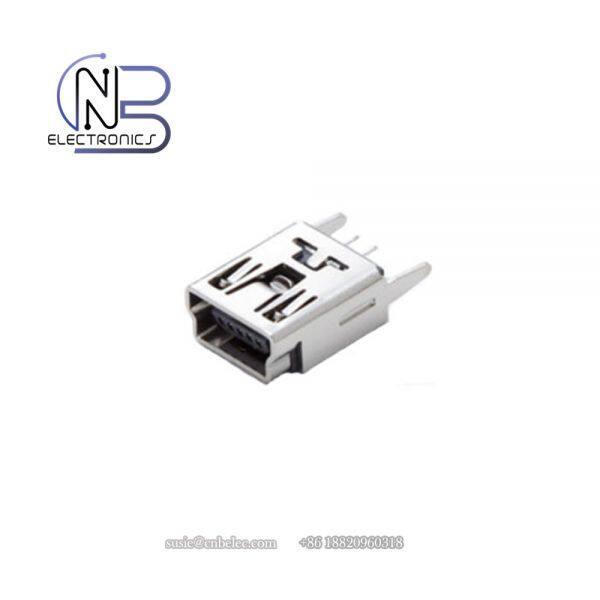

Mini DIP 5 Pins Usb Solder Plug Type B Female 2.0 Mini USB Connectors for Mobile Phones
US$ 0.01 - 0.1
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CNB electronics
Place of Origin:
China
Model Number:
CNB-MAFRSABS15
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
5 days
Related Products
-
High Quality Mini USB Female Connectors for Android, Audio Equipment or ElectrronicsUS$ 0.01 - 0.1MOQ: 1000 Pieces -
High Quality Mini USB Female Connectors for Android, Audio Equipment or ElectrronicsUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
Straight Solder Type USB A Female Plug Jack Connector for Power Banks or ChargerUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
High Defintion HDMI to Mini HDMI Adopter Connector Cable for TVUS$ 0.01 - 0.1MOQ: 100 Pieces
-
1080P High Defintion HDMI to Mini HDMI Adopter Connector Cable for TVUS$ 0.01 - 0.1MOQ: 100 Pieces
Brand Name
CNB electronics
Place of Origin
China
Model Number
CNB-MAFRSABS15
Mini DIP 5 pins micro usb solder type B female 2.0 micro USB Connectors for mobile phones
---Specifications:
| Model No. | CNB-MAFRSABS15 | ||
| Material | Contact | Copper Alloy (C2680) | |
| Shell | Copper Alloy (C2680)/SPCC/SUS | ||
| Housing | PBT White/ Blue/Black | ||
| Finish | Contact | 1u Au Plated ON Contact Area Over 60~80u Ni, Sn Plated On Solder Tails | |
| Shell | Ni Plated 100u | ||
| Plating Time | 24 Hours/48 Hours | ||
| Electrical Characteristic |
Contact Resistance | 30mΩ Max | |
| Insulation Resistance | 1000mΩ Min | ||
| Rated Current | 1.5A | ||
| Rated Voltage | 30V | ||
| Dielectric Withstanding Viltage |
500V AC for 1 minute | ||
| Environmental | Opterating Temperature | -55~85℃ | |
| Mechanical Characteristic |
Duribility | 1500/5000 cycles | |
| Insertion Force | 35N (3.57kgf) Max | ||
| Unnmating Force | 10N (1.02kgf) Min | ||

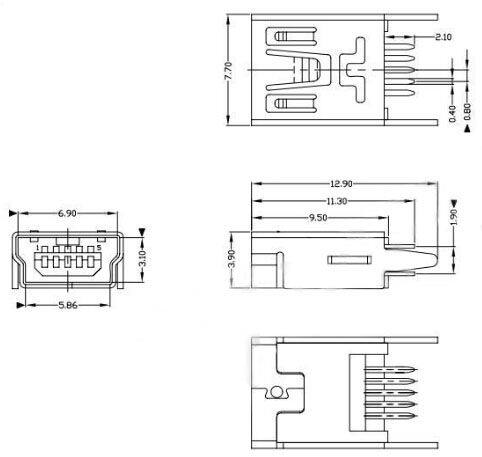

---Drawing:
---Packaging:
1. Tray Packaging:
* 100pcs in a tray
* 5 tray in a carton
* the size of carton: 36.5*24.5*20 cm
* Weight: about 8.5kg (500pcs in one carton)
2. Coil Packaging:
* 500 pcs per coil
---Payment & Shipping:
* Payment Terms: T/T, PayPal, West Union, L/C, ect.
* Please contact with me to discuss payment terms and shipping port
* Contact Person:
