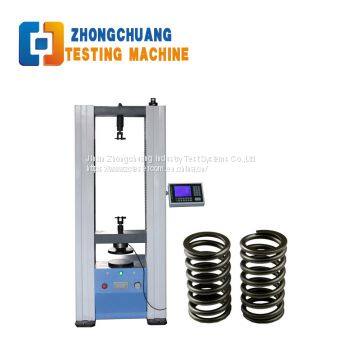

50kN Digital Valve Spring Compression Tester
The 50kN Digital Valve Spring Compression Tester is developed and produced by our company, which is mainly used to test the strength of all kinds of valve springs and elastic components. The 50kN Digital Valve Spring Compression Tester can measure the test force of spring and elastic component under the certain deformation or remaining height, and also can measure the remaining height or deformation of spring and elastic component under the certain test force. The testing machine is developed and produced according to the requirements of JB/T7796-2005 Tension and compression spring testing machines.
| Max test force | 50kN |
| Min reading value | 10N |
| Stroke range | 1%-100% |
| Resolution of test force | 1/500000 |
| Accuracy of displacement | 0.01mm |
| Compression space | 600mm |
| Diameter of plates | 300mm |
| Test speed | 0.01-300mm/min |
| Power supply | AC220V 10% 50Hz |
| Size of valve spring tester | 600*400*1750mm |
| Weight of valve spring tester | 400kg |
| Grade of valve spring tester | Grade 1 |
| Power supply | AC220V 10% 50Hz |
The main product series of Zhongchuang Testing Machine as follows:
Material universal testing machine, material tensile testing machine, cement concrete pressure testing machine, spring tension & compression testing machine, spring stiffness testing machine, spring torsion testing machine, spring fatigue testing machine, material torsion testing machine, auto parts testing equipment, material parts and axis torsion testing equipment, track locomotive testing equipment, dynamic and static universal testing machine, metallographic tissue analysis equipment, hardness tester and spectrometer etc.
If you have any questions about this machine or other spring testing machine, please contact us.
