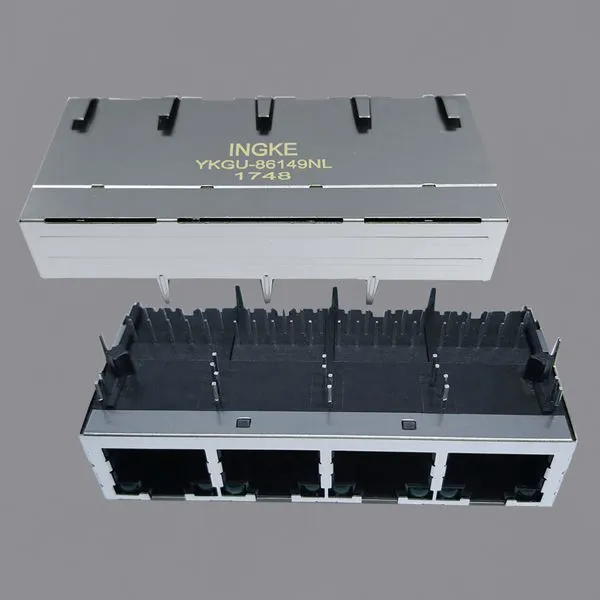

Ingke YKGU-86149NL Direct Substitute JG0-0026NL 1X4 Port Magnetic RJ45 jacks
Part Number : JG0-0026NL
Made in China:YKGU-86149NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :4
Number of Rows :1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90° Angle (Right)
Termination :Solder
LED Color: Green - Green
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features: Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Ally
Housing Material :Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;
J0N-0011NL JX8064D668ANL JC0-0351NL J1N-0005NL J1N-0007NL J0N-0012NL J8064E68NL J1N-0004NL J1N-0008NL J0N-0015NL J1N-0003NL JXG0-0098NL J8064D688ANL J0B-0384NL JX20-0114NL JX8064D688ANL J20-0114NL JG0-0070NL JG0-0028NL J0C-0003NLT J00-0045NL J00-0014NL J0011D21NL J3011G21DNLT J0006D21BNL J3026G01DNLT J1011F01PNL J1012F21CNL J1011F21PNL J0011D01BNL J0011D21BNL J0026D21BNL J3011G21DNL JXR0-0015NL JXR0-0011NL JXR1-0015NL J1026F01PNL J1026F21CNL JP011821UNL J3026G21DNL
