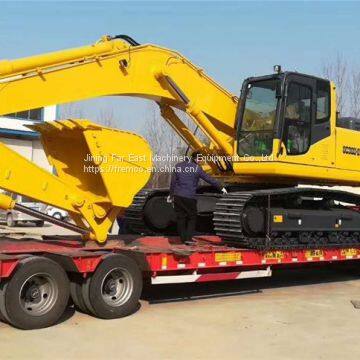

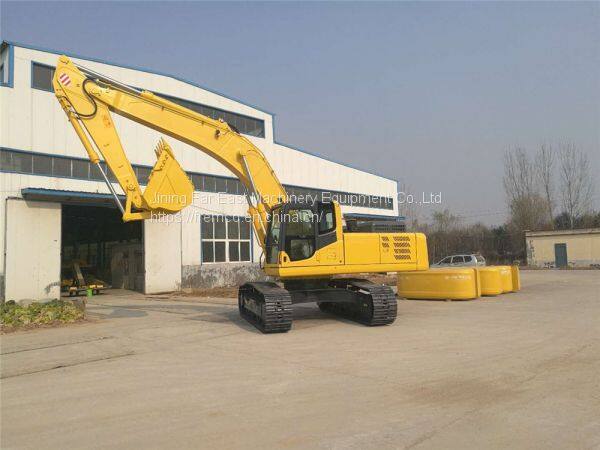

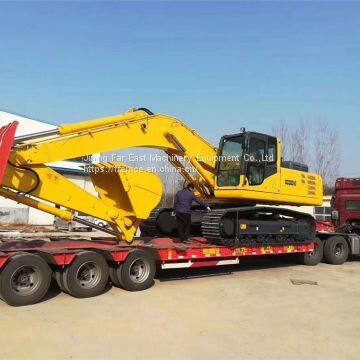

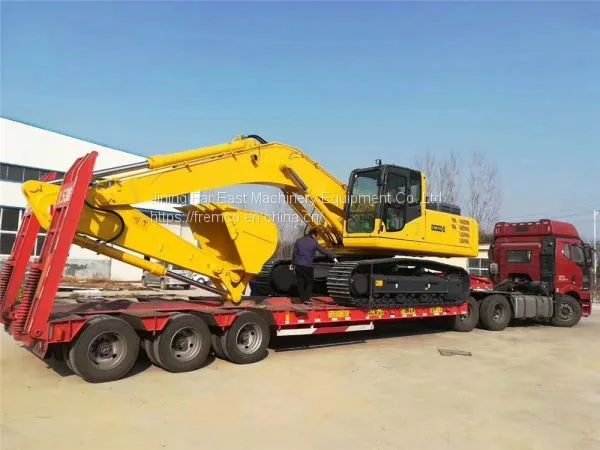

FE360.8 36t earth moving machinery digging machine

Weight

20.9

21.6

23.6

34.1

Bucket capacity(m³)

0.8-0.93

0.9-1.05

1-1.2

1.6

Engine Model

CUMMINS B5.9-C

CUMMINS B5.9-C

　CUMMINS B5.9-C

CUMMINS 6CTAA8.3

Power(kw/r/min)

112/1950

112/1950

　133/2000

198/2000

Fuel Tank capacity(L)

350

350

350

595

Tracking speed(km/h)

5.2/3.5

5.2/3.5

5.2/3.5

5.2/3.3

turing speed(r/min)

11.7

11.1

11.1

10.6

Climbing ability(%)

70

70

70

70

bucket digging force(KN)  ISO

145

145

159

208

Ground Pressure(KPa)

46.5

48.6

48.6

68.3

Hydraulic Pump Model

K3V112DT

K3V112DT

K3V112DT

K3V140DT

Maximum Flow（L/min)

200*2

226*2

226*2

265*2

Operation Pressure(MPa)

34.3

34.3

34.3

34.3

Oil Tank Capacity(L)

246

246

246

310

A-Overall Length(mm)

9390

9740

9740

11260

B-Overall Width(mm)

2800

2980

2980

2995

C-Overall Height(Arm top)(mm)

3040

3190

3190

3180

D-Overall Hight(CAB top)(mm)

3060

3120

3120

3280

E-Loading Weight distance from ground(mm)

1100

1065

1065

1210

F-Minimum Distance (mm)

468

442

442

498

G-End turning radius(mm)

2720

2810

2810

3600

H-Track shoe length on ground(mm)

3445

3640

3640

3700

J-track shoe assy length(mm)

4260

4450

4450

4622

K-track distance(mm)

2180

2380

2380

2590

L-track shoe assy width(mm)

2800

2980

2980

3190

M-track shoe wideth(mm)

600

600

600

600

N-turning platform width(mm)

2700

2700

2700

2995

O-Maximum digging height(mm)

9275

9310

9310

10200

P-Maximum unLoading Height(mm)

6560

6440

6440

7135

Q-Maximum digging depth(mm)

6515

6875

6875

7370

R-Maxium Vertical digging depth(mm)

5000

5860

5860

6380

S-Maximum digging depth for transverse plane 2.5 m   (mm)

6650

6680

6680

7190

T-Maximum digging distance

9865

10170

10170

11100

U-Maximum digging distance at horizontal plane(mm)

9680

9990

9990

10910

V-Minimum Turning Radius(mm)

3630

3975

3975

4265

W-Maximum height at minimum turning radius.(mm)

7670

7775

7775

8500

X-The distance from turning center to back tail   end(mm)

2720

2810

2810

3600

Z-Load weight height(mm)

2120

2120

2120

2265

A1-Ground distance(On transportation)(mm)

4840

5164

5165

5720

Bucket dipper distance (mm)

2900

3050

3050

3185

Arm length(mm)

5700

5850

5850

6470

Note: the excavator developed and new parameters   will be upgraded accordingly,

 all the   parameters are on the real machine.
