Liquid Tight Non-Metallic Flexible Conduit- PLFNCB2 Series
Non-Metallic Flexible Conduit PLFNCB2 Series
Liquid Tight Non-Metallic Flexible Conduit (Extra Flexible LFNC-B)

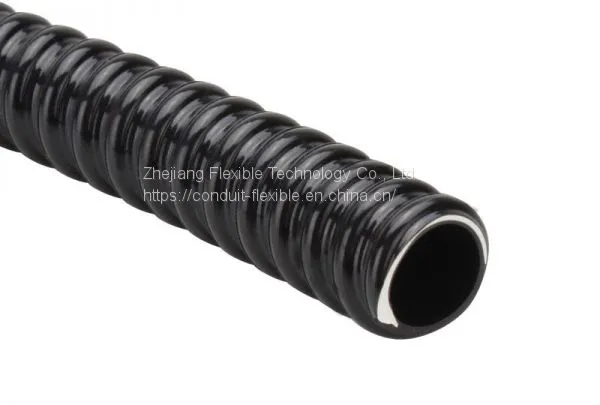

Extra Flexible Liquid Tight Non-Metallic Conduit (PLFNCB2) is made of thermoplastic polyvinyl chloride (PVC) with smooth inside and wave outside surface. The material is compliant with RoHS requirement and featured to resist UV, age and oil. The extra flexible LFNCB conduit integrates a reinforce member to shape a wave surface that enables higher flexibility and offers the performance of self-support and crush resistance. PVC is a material in good extension. It gives lighter weight and easy to cut which is benefit for quick assembly on site. The best efficiency of water proof for whole wiring system is able to achieve by connecting with the liquid tight fitting series P50 to P53.
Liquid Tight Non-Metallic Flexible Conduit, Manufacturers Wholesale
Material: Thermoplastic Polyvinyl Chloride (PVC)
Temperature Range : -18℃~+80℃ Dry, 60℃ Wet, 70℃ Oil
IP Rating : IP 66 (Fit with connector series: P50, P53, S50 & S53)
Color : Black
Flexibility : High
Fire Retardant : Self-extinguishing
UV Resistance : Yes
RoHS Compliance : Yes
Nominal Conduit Size (mm) | Nominal Conduit Size (inch) | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package / Roll (ft/m) | Measurement(LxWxH mm) |
12 | 3/8 | PLFNCB - 3/8 | 12.29 ~ 12.80 | 17.53 ~ 18.03 | 51 | 100 / 30.5 | 500 * 500 * 140 |
16 | 1/2 | PLFNCB - 1/2 | 15.80 ~ 16.31 | 20.83 ~ 21.34 | 82.5 | 100 / 30.5 | 505 * 505 * 145 |
21 | 3/4 | PLFNCB - 3/4 | 20.83 ~ 21.34 | 25.16 ~ 26.67 | 108 | 100 / 30.5 | 565 * 565 * 165 |
27 | 1 | PLFNCB - 1 | 26.44 ~ 27.08 | 32.77 ~ 33.40 | 165 | 100 / 30.5 | 620 * 620 * 200 |
35 | 1 - 1/4 | PLFNCB - 1 - 1/4 | 35.05 ~ 35.81 | 41.40 ~ 42.16 | 203 | 100 / 30.5 | 670 * 670 * 230 |
41 | 1 - 1/2 | PLFNCB - 1 - 1/2 | 40.01 ~ 40.64 | 47.37 ~ 48.26 | 228.5 | 100 / 30.5 | 800 * 800 * 260 |
53 | 2 | PLFNCB - 2 | 51.31 ~ 51.94 | 59.44 ~ 60.33 | 282 | 50 / 15.3 | 730 * 730* 180 |
We specialize in producing flexible conduits, which can be divided into multiple categories, according to structure, material, performance and application. Our conduits can be made from galvanized steel, be square locked and interlocked flexible metal conduits, cable conduits and shower hoses, just to name a few. With a wide assortment of fittings and accessories, they are widely used in building cable systems, machinery, petrochemical and metallurgical facilities, and other industries that require wire and cable protection. Our flexible tubing can also serve as a liquid or gas transmission medium.We are the flexible metal conduit, liquid tight non-metallic flexible conduit, metallic fittings supplier.
