Flexible Metal Conduit Low Fire Hazard - PEG23X Series

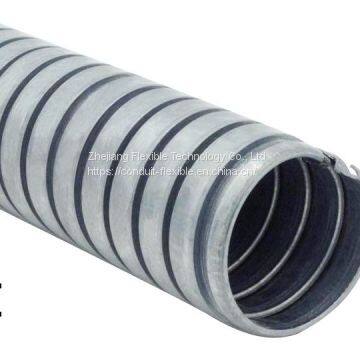

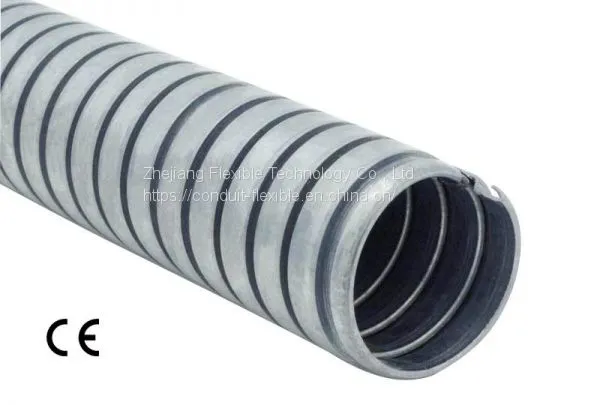

Flexible Metal Conduit, PEG23X series is manufactured with galvanized steel strip by continuous wound in interlock profile. This series of flexible metal conduit is developed with 3 classified levels, Light, Medium & Heavy, for different applications. The conduit sizes meet with the system normally used in Europe market. This series of product is excellent in tensile strength and suitable for most of the environment temperatures. It is also Low Fire Hazard. The material is RoHS approved as well. Applicable for electrical protection in Buildings, Railway System, Marines, Elevators, and etc..
Our Flexible Metal Conduit Low Fire Hazard used in Europe market. Type: Square-lock, Interlocked, Stainless Steel, Galvanized Steel etc. You can choose which you need.
Material：Galvanized Steel

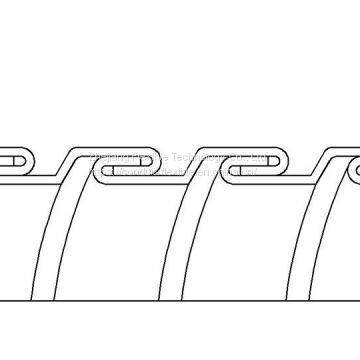

Profile：Interlocked
Temperature Range: -45℃~+350℃
IP Rating: IP 40
Flexibility: Medium
Tensile Resistance: Light 250N / Medium 500N / Heavy 1000N
RoHS Compliance: Yes
Certificate: CE
Nominal Conduit Size (mm) |
Nominal Conduit Size (inch) |
Part Number |
ID (mm) |
OD (mm) |
Bending Radius (mm) |
Package / Roll (ft/m) |
Measurement(LxWxH mm) |
10 |
1/4 |
PEG23X - 10 |
6.8 |
9.0 |
30 |
50 |
— |
12 |
5/16 |
PEG23X - 12 |
10.3 |
13.0 |
40 |
50 |
— |
16 |
3/8 |
PEG23X - 16 |
13.0 |
16.0 |
50 |
50 |
— |
20 |
1/2 |
PEG23X - 20 |
16.9 |
20.5 |
60 |
50 |
— |
25 |
3/4 |
PEG23X - 25 |
21.4 |
25.0 |
70 |
50 |
— |
32 |
1 |
PEG23X - 32 |
28.1 |
32.0 |
80 |
25 |
— |
40 |
1-1/4 |
PEG23X - 40 |
37.7 |
42.5 |
120 |
25 |
— |
50 |
1-1/2 |
PEG23X - 50 |
48.4 |
53.0 |
150 |
15 |
— |
63 |
2 |
PEG23X - 63 |
57.5 |
62.5 |
190 |
15 |
— |
75 |
2-1/2 |
PEG23X - 75 |
63.0 |
70.0 |
250 |
10 |
— |
90 |
3 |
PEG23X - 90 |
78.0 |
85.6 |
300 |
10 |
— |
110 |
4 |
PEG23X - 110 |
102.5 |
110.1 |
450 |
10 |
— |
Flexible is a leading manufacturer of Flexible Metal Conduit, Liquid Tight Non-Metallic Flexible Conduit, Metallic Fittings, Non-Metallic Fittings, Non-Metallic Corrugated Conduit, Amored Optical Fiber Cable etc. With nearly eight years of experience behind us.
