Flexible Metal Conduit Water Proof - PAS23PVC Series
PAS23PVC Series

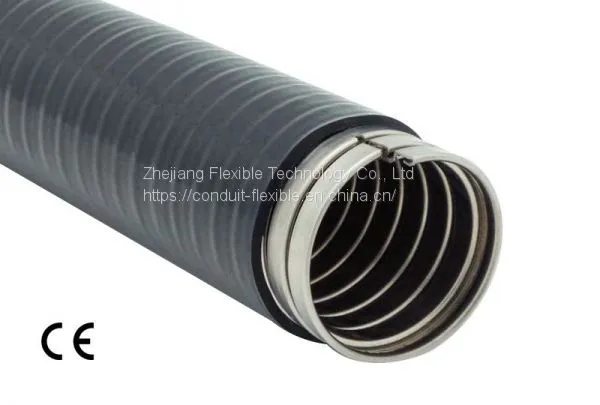

Flexible Metal Conduit, Interlocked SUS, PVC Jacket
Waterproof Flexible Metal Conduit, PAS23PVC series consists of stainless steel interlock flexible conduit and PVC waterproof jacket which features with high mechanical characteristics, watertight, fire retardant and corrosion resistant for wire and cable protection. All materials are compliant with RoHS standard. Full range of conduit size meets with the system normally used in Asia market and with excellent tensile strength and impact resistance. This series of product meets with BS EN 61386 standard and has been developed with 3 classified levels, Light, Medium & Heavy, to satisfy different requirements; no matter that are industrial areas with complex and severe environment conditions, railway system demanding high safety & reliability or the commercial applications that always expect good durability and more. Recommend to have complete protection efficiency for whole wiring system by adopting fitting series AZ01, AZ05, AZ09, AZ11, GS50 & GS53.
Flexible Metal Conduit Water Proof, PE Jacket Flexible Metal Conduit, Suppliers
Material: Stainless Steel + PVC Jacket
Profile: Interlocked
Temperature Range : -25℃~+90℃，-40℃~+105℃
Flexible Metal Conduit IP Rating :
IP 40 (Fit with connector series: AZ01, AZ05)
IP 66 (Fit with connector series: AZ09, AZ11, GS50 & GS53)
Jacket Color : Black (Standard), other colors are available by consult.
Flexibility : Medium
Fire Retardant : Self-extinguishing
UV Resistance : By ordering
Tensile Resistance : Light 250N / Medium 500N / Heavy 1000N
RoHS Compliance : Yes
Certificate : CE
Nominal Conduit Size (mm) |
Nominal Conduit Size (inch) |
Part Number |
ID (mm) |
OD (mm) |
Bending Radius (mm) |
Package / Roll (ft/m) |
Measurement(LxWxH mm) |
10 |
1/4 |
PAS23PVC - 10 |
6.8 |
10.0 |
60 |
50 |
— |
12 |
5/16 |
PAS23PVC - 12 |
10.3 |
14.0 |
80 |
50 |
— |
16 |
3/8 |
PAS23PVC - 16 |
12.6 |
16.6 |
100 |
50 |
— |
20 |
1/2 |
PAS23PVC - 20 |
16.1 |
20.7 |
120 |
50 |
— |
25 |
3/4 |
PAS23PVC - 25 |
21.1 |
25.7 |
140 |
50 |
— |
32 |
1 |
PAS23PVC - 32 |
26.8 |
32.7 |
180 |
25 |
— |
40 |
1 - 1/4 |
PAS23PVC - 40 |
35.4 |
42.2 |
220 |
25 |
— |
50 |
1 - 1/2 |
PAS23PVC - 50 |
40.3 |
46.9 |
270 |
25 |
— |
63 |
2 |
PAS23PVC - 63 |
51.6 |
58.6 |
310 |
10 |
— |
75 |
2 - 1/2 |
PAS23PVC - 75 |
63.0 |
72.0 |
360 |
10 |
— |
90 |
3 |
PAS23PVC - 90 |
78.0 |
87.6 |
450 |
5 |
— |
110 |
4 |
PAS23PVC - 110 |
102.5 |
112.1 |
600 |
5 |
— |
