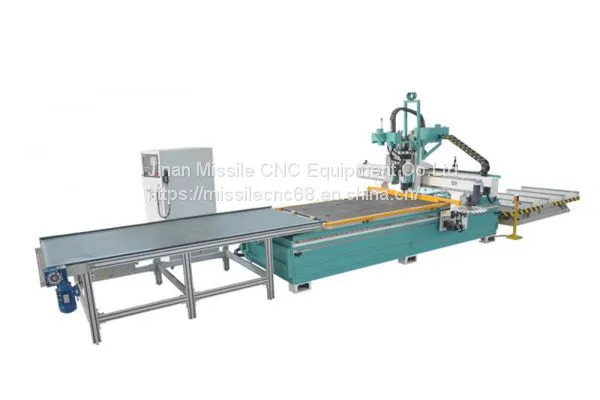

CNC Nested Based Router Missile-S9
MISSILE-S9 Product Parameters
XYZ working area | 1300*2500*200mm |
XYZ Traveing Positioning Accuracy | ±0.05mm |
XYZ Repositioning Accuracy | ±0.05mm |
Table Surfce | Vacuum table |
Max.Traveling Speed | 60000mm/min |
Max.Working Speed | 25000mm/min |
Spindle Power | HSD Air-cooling 9KW |
Drive&Motor | YASKAWA servo |
Tool Storage Capacity | 12 |
Drilling Capacity | 9 |
Working Voltage | AC380V/50Hz/3PH |
Operating System | Syntec Control System |
CNC Nested Router MISSILE-S9 Features
S9 is professional machine for panel furniture production . It is equipped with 9KW ATC Spindle( 12 carousel magazine ) ; Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling ‘s requirements . S9 has multifunction : routing , drilling , cutting , edge chamfering etc.
S9 is CNC Router Best in China, also with automatic push function which can push the finished panel board from the worktable and collect the dusts during working at the same time . In this way , it is very easier for the operator to unload the panel board and new feeding board easily be strong sucked on the worktable.
Automatic loading snd unloading system，Automatic marking label system,also can be optional.
