high speed 1325 ATC cnc nested-based routers
Product description:
Our MISSILE-1325NMB01 is designed for Nested Based Applications. Nested-based routers is used to process furniture, insulation power station, high speed train industry, advertising industries. And 1325 nested-based routers is also suitable for processing engineering plastic, compound material, acrylic and other non-metal materials. This ATC nested-based routers integrate with auto tool changer carousel magazine, for mass production and kinds of patterns. We have cnc nested-based routers with 200 sets storage capacity each month. And our high speed nested-based routers have passed BV&CE certification.
Parameters
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05MM |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Vacuum table |
Frame |
Heavy duty frame welded structure |
X, Y axis transmission |
Rack and Pinion gear |
Z transmission |
Ball Screw |
MAX traving speed |
80000mm/min |
Max. Working Speed |
25000mm/min |
Rail Configuration |
25 square rail (Taiwan HIWIN) |
Spindle Power |
HSD Air-cooling 9KW |
Spindle rotationg Speed |
24000RPM |
Drive Motors |
JAPAN YASKAWA servo |
Working Voltage |
AC380V/50Hz,3PH |
Operating System |
TAIWAN SYNTEC SYSTEM |
Computer Interface |
USB |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3,Wentai,Artcut (Option: ) |
Packing and Size |
Wooden case |
N.W. |
3500KG |
Features

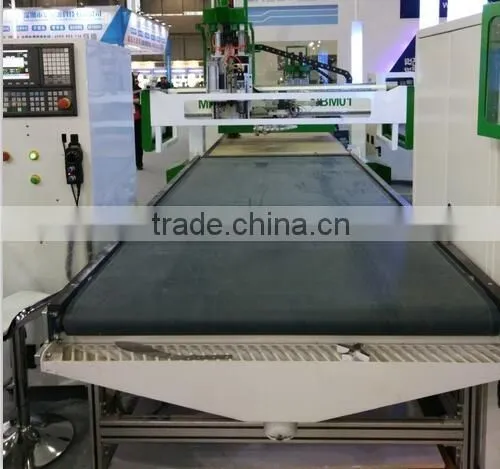

MISSILE nested-based routers is a completely automated production cell for nested based manufacturing.
The AutoProcessor is a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining. It is used in nested based production of cabinets, closets and custom furniture. It is available in either 5'x10, 5'x12' or 7'x12' table sizes.
With each cycle, the machine first labels the sheet, positions the sheet on the table, machines the material, off-loads the finished parts and then repeats the process. Dust collection during this process keeps scrap and debris to a minimum. Labels help the operator to quickly sort the parts, and Assembly Marks help final assembly happen quickly and easily.

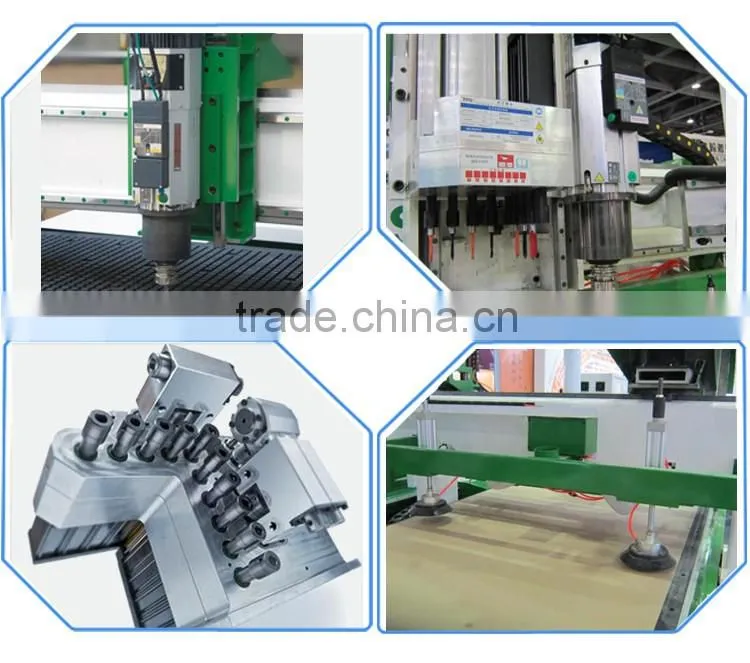

The accessory
Left 1: Italy HSD air cooled tool changer spindle
Left 2 and Right 1: Boring units, for vertical and horizontal drilling holes
Right 2: automatic load system
Under Left: automatic offload system

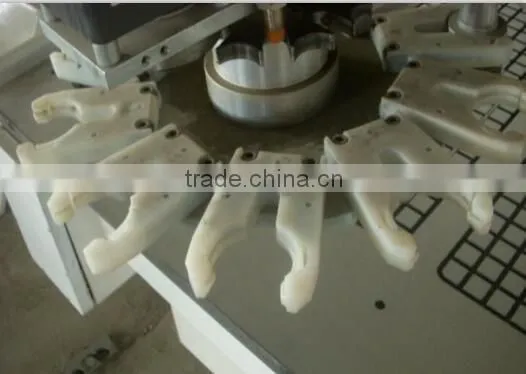

Under Right: ATC auto tool changer carousel
Our MISSILE serial is customize high level model, for nested based manufacturing. There are china nesting cnc router, advertising cnc router, cnc nesting router and high precise cnc router for cutting aluminum. We can product machine meeting your requirement.
The samples & application
Widely used in the wooden furniture, cabinet, kitchen, cabinet door etc.
Workshop
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood, Particle Board, Plastic, Foam, Composites, Glass, Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of .001" or better for a given distance.
3.Question: How to buy? whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Second, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty. within 12 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
