The use of rebar spiral bending machine:
It is mainly used in the construction of high iron, elevated bridge and pipe pile, which can roll round and spring type spiral tendons, prestressed spiral tendons and so on.
The spiral rib shaping machine is a professional student for the processing of photovoltaic power plants and high speed iron spiral tendons.
A new type of equipment, mainly used in high iron, elevated, Bridge pile construction, can roll round, spring type spiral tendons, prestressed spiral tendons and other specifications,The machine adopts the CNC programmable system. Can the 4-22 coil, round steel, screw steel round circle round forming processing, can set a single circle, multi circle machining one time type. The user can set the diameter of the rebar bending ring and the number of rings and two volumes according to the requirements.
The spacing can be set by itself, the whole circle can be machined and the spiral rib can be machined, and the diameter of the circle can be machined.The circle of 10-1000mm can be processed in one time.

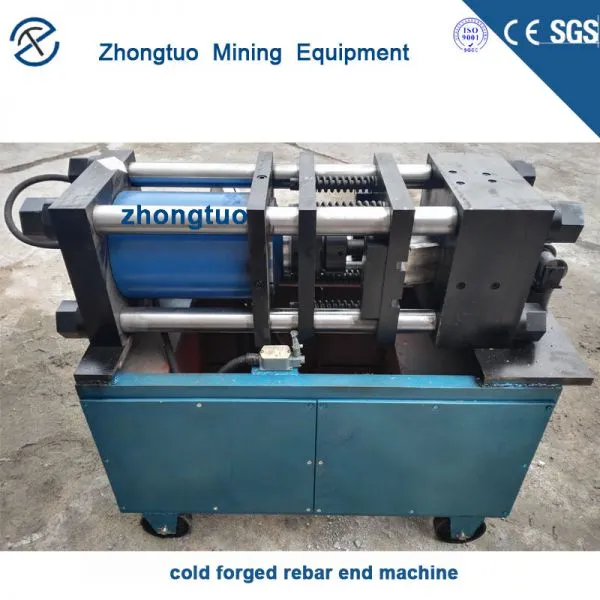

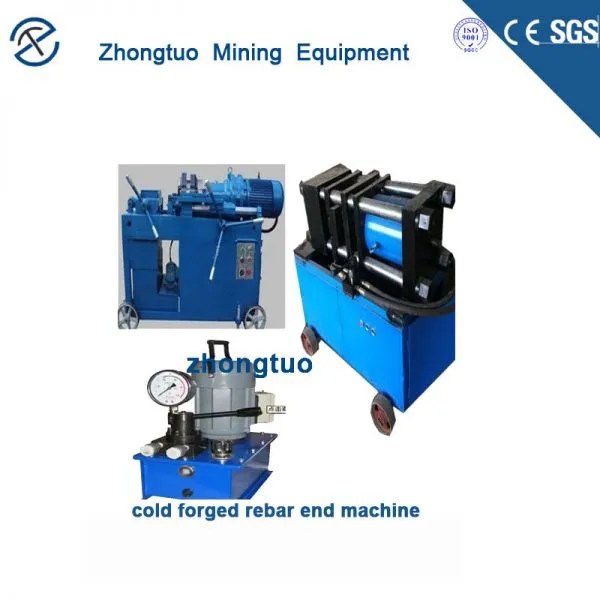

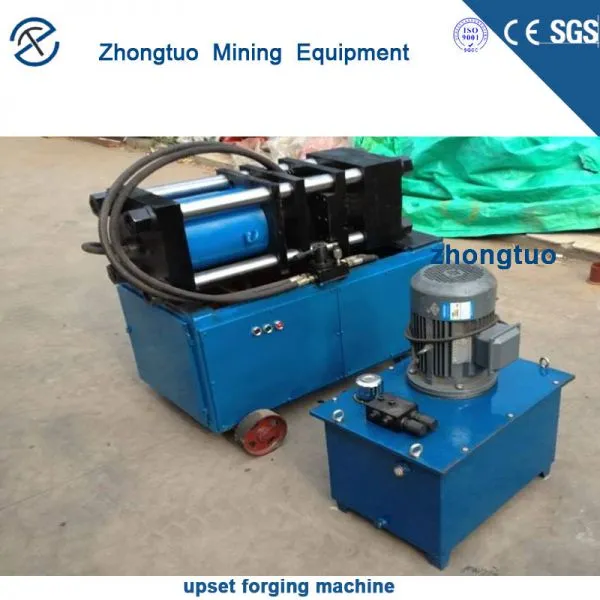

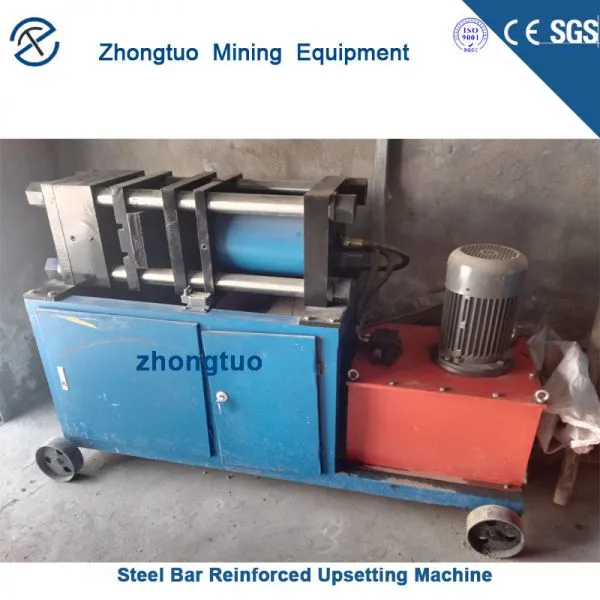

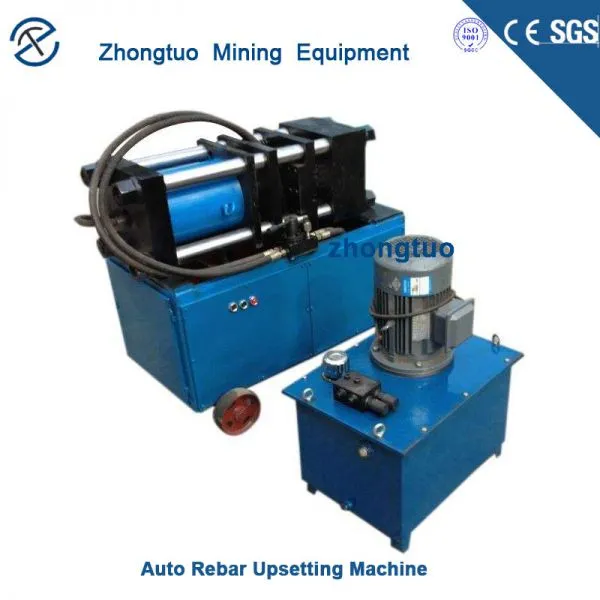

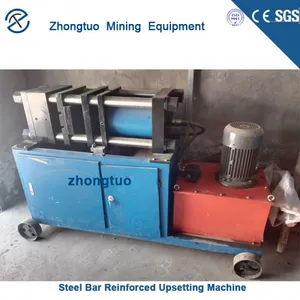

Technical principle of upset forging machine:
Upsetting type and other straight thread connection is a special upsetting machine in advance to be the end of the steel to be processed upsetting, so that the diameter of the steel section of the processing section thickening, and then use a special threading machine on the upsetting part of the wire processing. The wire diameter is adjustable and the connecting thread is connected with the straight thread sleeve to the steel bar, and the straightening thread type connection technology is stable and the joint strength is larger than that of the reinforced mother Material strength and so on.
Product parameters of Rebar Cold Forging Machine:
Processing of steel range: |
φ12-φ40 |
Rated power: |
4kw |
Rated power: |
380V 50HZ |
Hydraulic oil: |
68# anti-wear hydraulic oil |
Maximum working pressure |
80Mpa |
Total machine weight: |
560kg |
Machine size |
1020x500x965mm |
