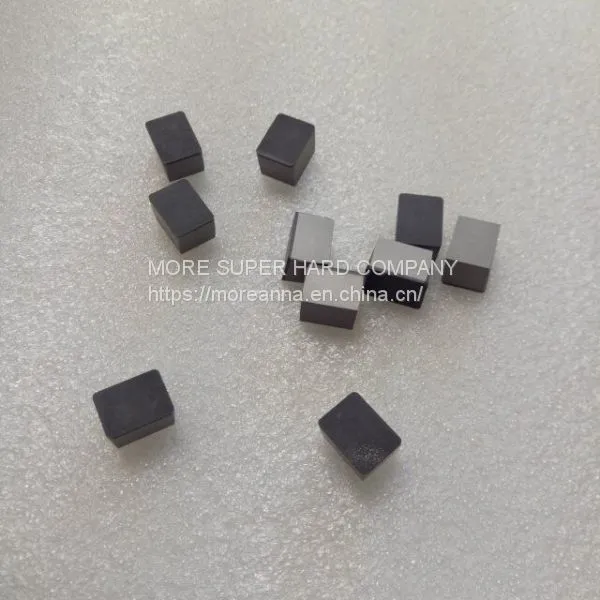

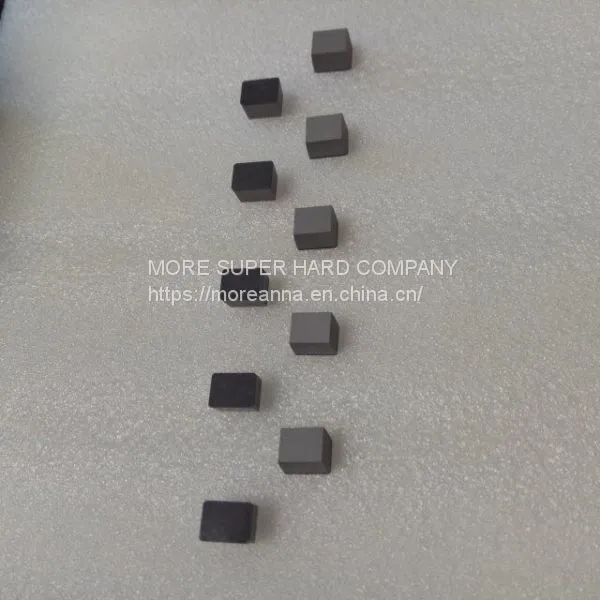

Features of PCD Inserts
1. The PCD insert meets the international standard of ISO.
2. High abrasive resistance, high processing precision, good thermal conductivity and long service life.
3. The cutting edge of PCD insert is sharp, it can realize high speed cutting and hard material cutting with high work efficiency and facilitate fast clamping.
4. Our PCD insert can be used repeatedly, which helps to lower your processing cost.
Specification
Processing Materials |
Product Range |
|
Aluminum Aluminum Alloy
|
Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles. |
Tank body, shell and compressor parts for airplanes and electro mechanical products. | |
Tank body, shell and compressor parts for airplanes and electro mechanical products. | |
Parts for pump body and oil press. | |
|
Copper Copper Alloy
|
Axle, bearing bush, bearing and pump body for internal combustion engines and ships. |
Parts for various instruments, dynamo commutators, printed boards and electronic apparatus. | |
Bearing, bearing bush, valve and shell body. | |
Tungsten Carbide |
Sinter such as valve seat and cylinder, and semi-finished sinter. |
Others |
Various nonferrous metal parts such as magnesium and zinc. |
Wood |
Hardwood, artificial board, artificial abrasion resistant fiberboard. |
Reinforced Plastic |
Glass fiber and carbon fiber reinforced plastic. |
Rubber |
Roller for paper and rubber ring. |
Graphite |
Carbon rod. |
Ceramic |
Sinter such as sealing ring and plunger piston,semi-finished sinter. |
Model |
Dimension (mm) |
||||
L |
C |
s |
d |
R |
|
VNGA160404 |
16.6 |
9.525 |
4.76 |
3.81 |
0.4 |
VBGW160404 |
16.6 |
9.525 |
4.76 |
4.4 |
0.4 |
DCGW11T302 |
11.6 |
9.525 |
3.97 |
4.4 |
0.2 |
DNGA150404 |
15.5 |
12.7 |
4.76 |
5.16 |
0.4 |
TNGA160402 |
16.5 |
9.525 |
4.76 |
3.81 |
0.2 |
TCGW16T308 |
16.5 |
9.525 |
3.97 |
4.3 |
0.8 |
CCGW060204 |
6.4 |
6.35 |
2.38 |
2.8 |
0.4 |
TNGA160404 |
16.5 |
9.525 |
4.76 |
3.81 |
0.4 |
SNGA09T302 |
9.525 |
9.525 |
3.97 |
4.4 |
0.2 |
SNGN150412 |
15.5 |
12.7 |
4.76 |
5.16 |
0.8 |
Material
The tool bit uses PCD blanks manufactured by world famous companies.
The body part uses high quality tungsten carbide.
