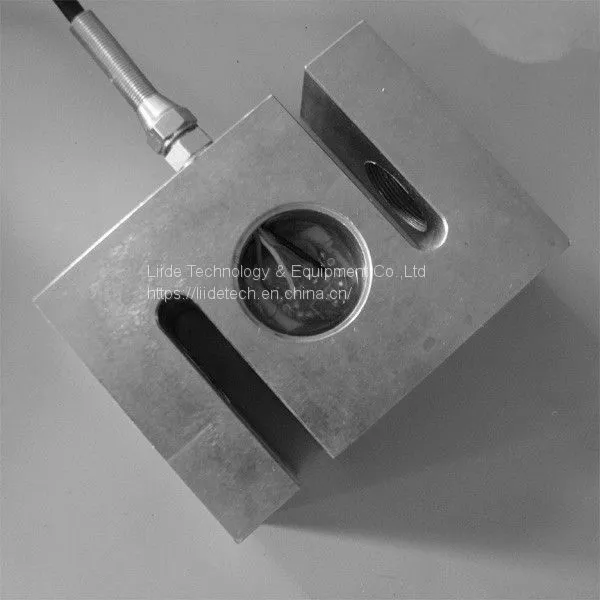

LCS63 S type Load Cell
Features:
Alloy steel.
Load Deflection resistance. Anti-torque, slide draw resistance.
Used for crance scale, hanging scale, hopper scale, pull force and press force measurement.
Capacity: 20,50,75,100,150,200,250,300,350,1000,2000,3000Kg.
Specifications:
Sensitivity: |
2.0 +-0.01mv/V |
Accuracy class: |
C2, C3 |
Zero balance: |
2%FS |
Non-linearity: |
0.02%FS |
Hysteresis: |
0.02%FS |
Repeatability: |
0.02%FS |
Creep(30min): |
0.02%FS |
Temperature effect on zero: |
0.017%FS/10C |
Insulation impedance: |
≥5000M Ohm (50VDC) |
Temperature effect on sensitivity: |
0.017%FS/10C |
Input impedance: |
380 Ohm |
Output impedance: |
350 Ohm |
Compensated temperature range: |
-10C to 40C |
Operating temperature range: |
-30 to 70C |
Safe overload: |
150%FS |
Ultimate overload: |
200%FS |
Excitation: |
10-15V |
Excitation maximum: |
18V |
Platform/cable: |
Φ5.6*3m
|
Input: Red(+) Black(-) Output: Green(+) White(-) |
|
