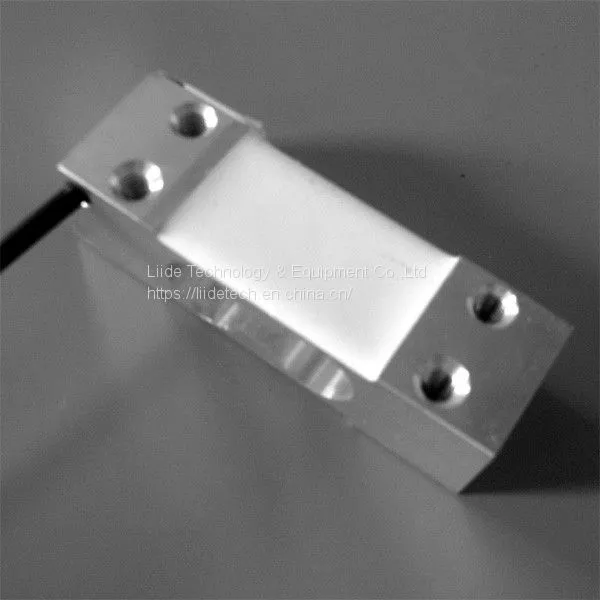

LC219 Load Cell
Feature:
Aluminum alloy
Parallel beam structure
Anodic treatment on surface
Used for platform weighing scale.
Capacity:100/150/200/300/500Kg
Specifications:
Sensitivity: |
2.0 +-0.1mv/V |
Accuracy class: |
C2, C3 |
Zero balance: |
2%FS |
Non-linearity: |
0.02%FS |
Hysteresis: |
0.02%FS |
Repeatability: |
0.02%FS |
Creep(30min): |
0.02%FS |
Temperature effect on zero: |
0.017%FS/10C℃ |
Insulation impedance: |
≥5000M Ohm (50VDC) |
Temperature effect on sensitivity: |
0.017%FS/10C℃ |
Input impedance: |
405 Ohm |
Output impedance: |
350 Ohm |
Compensated temperature range: |
-10C to 40C |
Operating temperature range: |
-30 to 70C |
Safe overload: |
150%FS |
Ultimate overload: |
200%FS |
Excitation: |
10-15V |
Excitation maximum: |
18V |
Platform/cable: |
500mm*500mm Φ5.6*3.5m |
Input: Red(+) Black(-) Output: Green(+) White(-) |
|
