Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > FE210-8 Heavy Duty Machinery Crawler Excavator

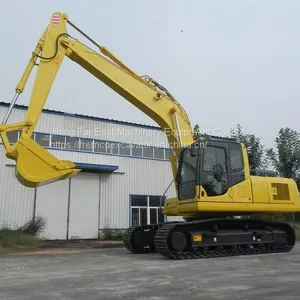

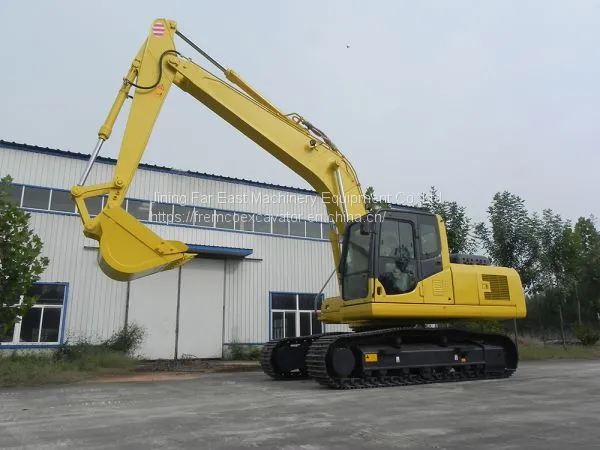

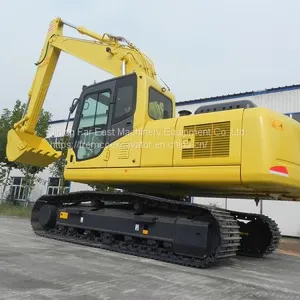

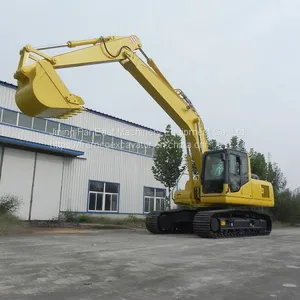

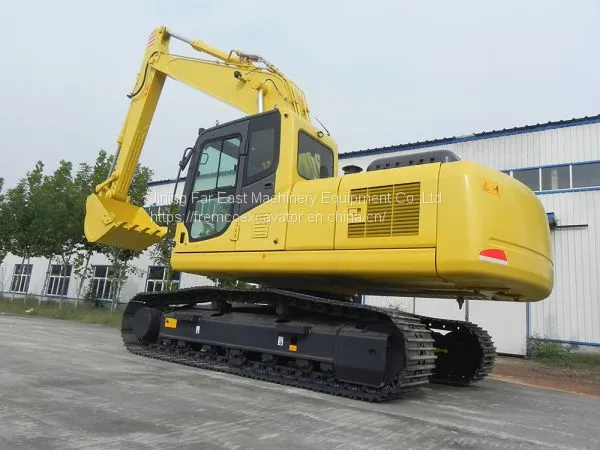

FE210-8 Heavy Duty Machinery Crawler Excavator
US$ 90500.00 - 91000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FREMCO
Place of Origin:
China
Model Number:
FE210-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Mini 1.8 Ton Hydraulic Excavator For SaleUS$ 12800.00 - 12900.00MOQ: 1 Set -
FE20 Small Excavator Mini Crawler ExcavatorUS$ 19600.00 - 19700.00MOQ: 1 Set
-
FE22 Earth-moving Mini Crawler ExcavatorsUS$ 14200.00 - 14300.00MOQ: 1 Set
-
FE360-8 Digging Machinery Crawler ExcavatorUS$ 145000.00 - 148000.00MOQ: 1 Set
-
FE240-8 Earthmover Construction Crawler ExcavatorUS$ 93500.00 - 94000.00MOQ: 1 Set
Brand Name
FREMCO
Place of Origin
China
Model Number
FE210-8
Certification
CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Machine Weight
20.9ton
Moving Type
Crawler Excavator
Rated Speed
5.2km/h
Maximum Digging Depth
6515mm
Maximum Digging Height
9275mm
Bucket capacity
0.93m3
Operating Weight
21ton
FE210-8 Heavy Duty Machinery Crawler Excavator
·
F
Technical Parameter:
| Model | FE210.8 |
| Weight | 20.9 |
| Bucekt capacity(m3) | 0.8-0.93 |
| Engine Model | CUMMINS B5.9-C |
| Power(kw/r/min) | 112/1950 |
| Fuel Tank capacity(L) | 350 |
| Tracking speed(km/h) | 5.2/3.5 |
| turing speed(r/min) | 11.7 |
| Climbing ability(%) | 70 |
| bucket digging force(KN) ISO | 145 |
| Ground Pressure(KPa) | 46.5 |
| Hydrauli Pump Model | K3V112DT |
| Maximum Flow(L/min) | 200*2 |
| Operation Pressure(MPa) | 34.3 |
| Oil Tank Capacity(L) | 246 |
| A-Overall Length(mm) | 9390 |
| B-Overall Width(mm) | 2800 |
| C-Overall Height(Arm top)(mm) | 3040 |
| D-Overall Hight(CAB top)(mm) | 3060 |
| E-Loading Weight distance from ground(mm) | 1100 |
| F-Minimum Distance (mm) | 468 |
| G-End turning radius(mm) | 2720 |
| H-Track shoe length on ground(mm) | 3445 |
| J-track shoe assy length(mm) | 4260 |
| K-track distance(mm) | 2180 |
| L-track shoe assy width(mm) | 2800 |
| M-track shoe wideth(mm) | 600 |
| N-turning platform width(mm) | 2700 |
| O-Maximum digginig height(mm) | 9275 |
| P-Maximum unLoading Height(mm) | 6560 |
| Q-Maximum digging depth(mm) | 6515 |
| R-Maxium Vertical digging depth(mm) | 5000 |
| S-Maximum digging depth for transverse plane 2.5 m (mm) | 6650 |
| T-Maximum diging distance | 9865 |
| U-Maximum digging distance at horizontal plane(mm) | 9680 |
| V-Minimum Turning Radius(mm) | 3630 |
| W-Maximum height at minimum turning radius.(mm) | 7670 |
| X-The distance from turning center to back tail end(mm) | 2720 |
| Z-Load weight height(mm) | 2120 |
| A1-Ground distance(On transportation)(mm) | 4840 |
| Bucket dipper distance (mm) | 2900 |
| Arm length(mm) | 5700 |
