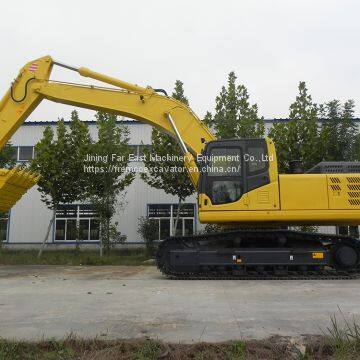

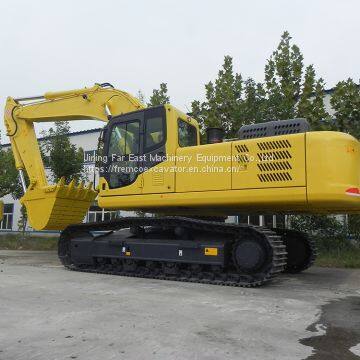

FE360-8 Digging Machinery Crawler Excavator

FOB Price

USD $145000.00 - $148000.00 / Set

1 Set(Min.Order)

Product Details

Brand Name:	FREMCO	Place of Origin:	China	Model Number:	FE360-8
Certification:	CE,ISO	After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New
Machine Weight:	34.1ton	Moving Type:	Crawler Excavator	Rated Speed:	5.2km/h
Maximum Digging Depth:	7370mm	Maximum Digging Height:	10200mm	Bucket capacity:	1.6m3
Operating Weight:	36ton

FE360-8 Digging Machinery Crawler Excavator

Technical Parameter:

Model	FE360.8
Weight	34.1
Bucekt capacity(m3)	1.6
Engine Model	CUMMINS 6CTAA8.3
Power(kw/r/min)	198/2000
Fuel Tank capacity(L)	595
Tracking speed(km/h)	5.2/3.3
turing speed(r/min)	10.6
Climbing ability(%)	70
bucket digging force(KN) ISO	208
Ground Pressure(KPa)	68.3
Hydrauli Pump Model	K3V140DT
Maximum Flow(L/min)	265*2
Operation Pressure(MPa)	34.3
Oil Tank Capacity(L)	310
A-Overall Length(mm)	11260
B-Overall Width(mm)	2995
C-Overall Height(Arm top)(mm)	3180
D-Overall Hight(CAB top)(mm)	3280
E-Loading Weight distance from ground(mm)	1210
F-Minimum Distance (mm)	498
G-End turning radius(mm)	3600
H-Track shoe length on ground(mm)	3700
J-track shoe assy length(mm)	4622
K-track distance(mm)	2590
L-track shoe assy width(mm)	3190
M-track shoe wideth(mm)	600
N-turning platform width(mm)	2995
O-Maximum digginig height(mm)	10200
P-Maximum unLoading Height(mm)	7135
Q-Maximum digging depth(mm)	7370
R-Maxium Vertical digging depth(mm)	6380
S-Maximum digging depth for transverse plane 2.5 m (mm)	7190
T-Maximum diging distance	11100
U-Maximum digging distance at horizontal plane(mm)	10910
V-Minimum Turning Radius(mm)	4265
W-Maximum height at minimum turning radius.(mm)	8500
X-The distance from turning center to back tail end(mm)	3600
Z-Load weight height(mm)	2265
A1-Ground distance(On transportation)(mm)	5720
Bucket dipper distance (mm)	3185
Arm length(mm)	6470
