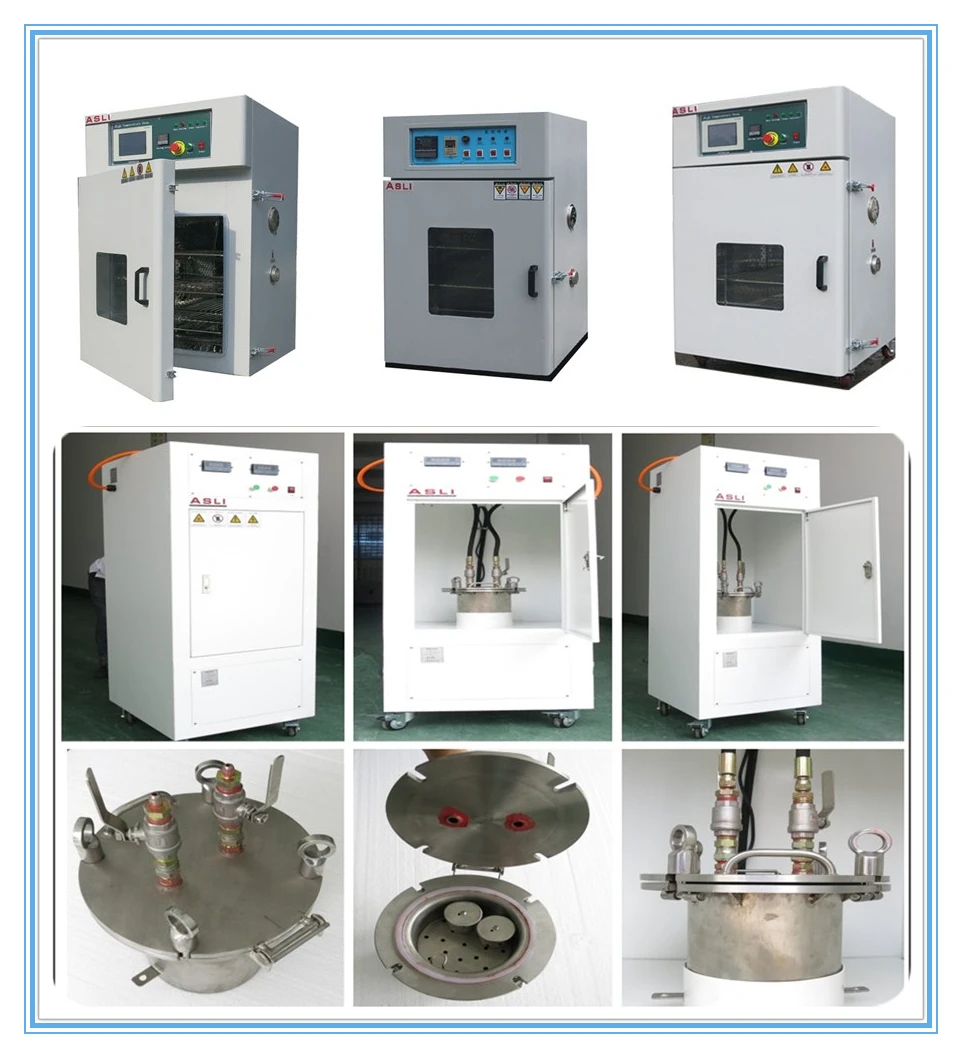

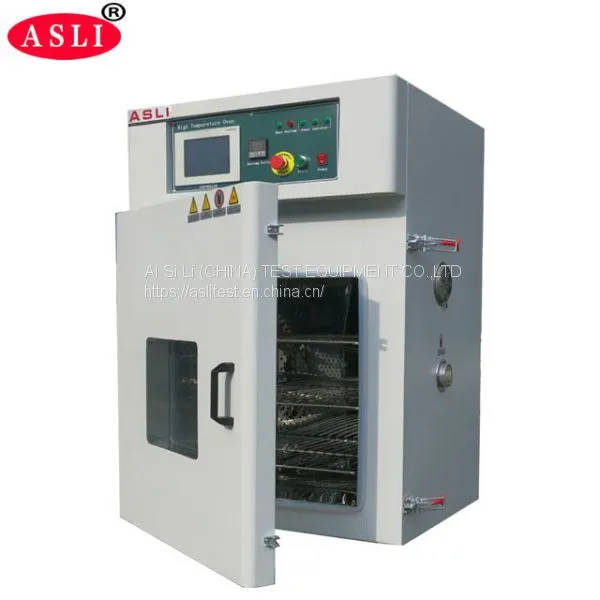

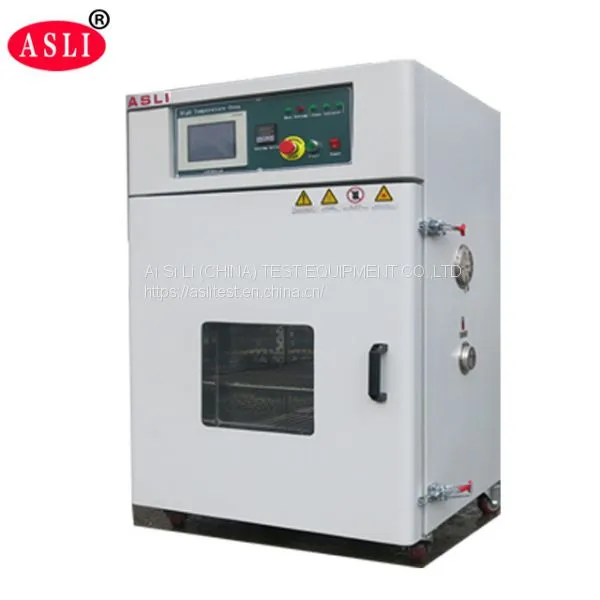

Micro PID Control High Temperature Nitrogen Drying Chamber Application:
Nitrogen High Temperature Oven is used in the electronics industry, electrical, communications, hardware, chemical, sports equipment, printing, pharmaceuticals, footwear, automotive spare parts and other industrial for baking, drying, preheating and tempering, aging purposes.
Micro PID Control High Temperature Nitrogen Drying Chamber Features:
1. Microprocessor temperature controller
2. Rapid sterilization time
3. Forced air convection
4. Auto stop when temperature over limit
5. Air inlet adjustment & timing control, the device is equipped with imported nitrogen flow meter, and with a quick plug nitrogen filling interface, convenient nitrogen filling and control the nitrogen flow.
Micro PID Control High Temperature Nitrogen Drying Chamber Technical Parameters:
| Model | RHD - 45 | RHD - 60 | RHD - 90 | RHD - 120 |
| Inner Dimension W×H×D (mm ) | 450×400×400 | 500×600×500 | 600×900×500 | 800×1200×700 |
| Outer DimensionW×H×D (mm ) | 650×900×550 | 700×1200×650 | 850× 1600×700 | 1200× 1680×900 |
| Inner and Outer Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | |||
| Temperature Range | RT~200℃, (300℃~500℃ is special optional) | |||
| Analytic Accuracy / Distribution Uniformity of Temperature | 0.1℃/ ±2.0℃;(When temperature is 100℃) | |||
|
Control Accuracy of Temperature |
±0.5℃; | |||
| Temperature Rising Speed Rate | Temperature rising speed rate: RT~200℃; Approx. 35mins | |||
| Control Method | Micro PID+SSR+Timer | |||
| Nitrogen Device | Nitrogen in-out interface and pressure relief valve on the back of equipment, | |||
| Storage Shelf | Two layers | |||
| Observation Glass Window | When temperature is RT-200℃ ,with observation glass widow When temperature is 200℃-500℃ ,without observation glass widow | |||
| Power | AC 220V, 1 ph 3 Lines, 50/60HZ ; AC380V, 3 ph 5 Lines, 50/60HZ | |||
