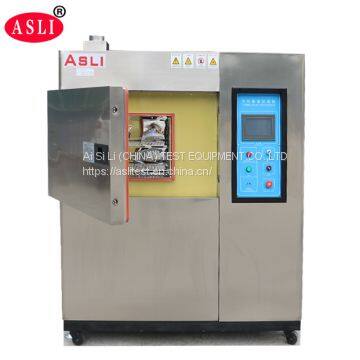

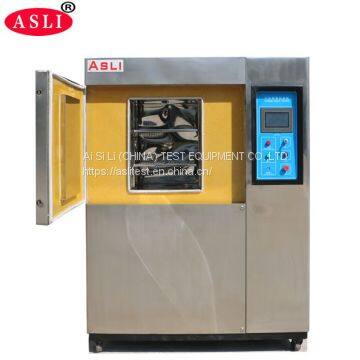

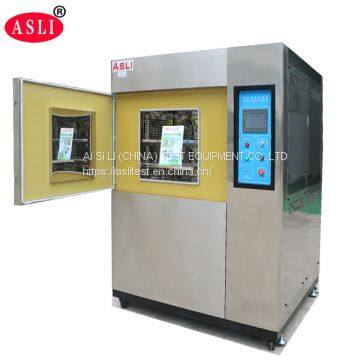

Thermal Shock Test Chamber
Application:
Temperature shock tester is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
Features:
1.Temperature shock test chamber is divided into three boxes: high temperature, low temperature, and the testing area, testing products placed on the testing area; when testing, the valve , which drove by cylinder,lead the high temperature or low temperatures into the testing area. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. R232 and R485 communication interface.
Technical Parameters:
| Model |
TS-49 (A～C) |
TS-80 (A~C) |
TS-150 (A~C) |
TS-252 (A~C) |
TS-450 (A～C) |
TS-900 (A~S) |
|
| Internal Dimension WxHxD ( mm) |
400x350 x350 |
500x400 x400 |
600x500 x500 |
700x600x 600 |
800x750x 750 |
1000x900x 900 |
|
| External Dimension WxHxD (mm) |
1400x1800 x1400 |
1550x1950 x1550 |
1600x2000 x1700 |
1700x2100 x1750 |
1800x2200 x1900 |
2100x2400x 2200 |
|
| Temperature Range of Testing zone |
Type A:-40 degre e~+150degree (200degree is Optional) |
Type B:-55degree ~+150degree (200degree is Optional) |
Type C:-65degree ~+150degree (200degree is Optional) |
||||
|
High temperature Range of Testing zone: +60degree~+150degree (200degree is Optional); Low Temperature Range of Testing Zone: -10degree~-40degree/-55degree/-65degree | |||||||
| Exposure Time of High/Low Temperature |
Exposure Time of High Temperature:+60degree~+150degree(200degree is Optional) 30Mins |
||||||
|
Exposure Time of Low Temperature:-10degree~Type B:-40degree/ Type B -55degree/ Type C -65degree 30Mins | |||||||
| Temperature of Heat-Storing Slot/ Heating Time |
RT~200degree/About 45mins | ||||||
| Temperature of Cool-storing Slot/ Cooling Time |
RT~-75degree/ About 100mins | ||||||
| Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec | ||||||
| Precision temperature Control / Distribution Accuracy |
±0.5degree/±2degree | ||||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
||||||
| Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||
| Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||||||
| Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
||||||
| Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
||||||
| Accessories | viewing window(special order) | ||||||
| Compressor | French “Tecumseh” Brand, Germany Bizer Brand | ||||||
| Power | AC220V 1∮ 3 lines,50/60HZ, AC380V 3∮ 5 lines,50/60HZ | ||||||
| Weight (Approx) (KG) | 450 | 600 | 750 | 900 | 1300 | 1500 | |
Certificate of Test Chamber:
China official 3rd party calibration report
CE certiification
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
3. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
4.What's your main products?
Environmental chambers, temperature (humidity) chamber, ,ESS chamber, Walk in stability chamber,Vacuum oven,PCT /Hast chamber (Highly accelerated stress test chamber)
Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
