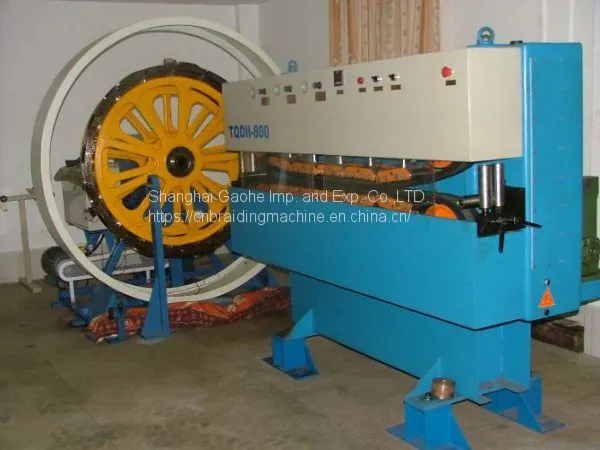

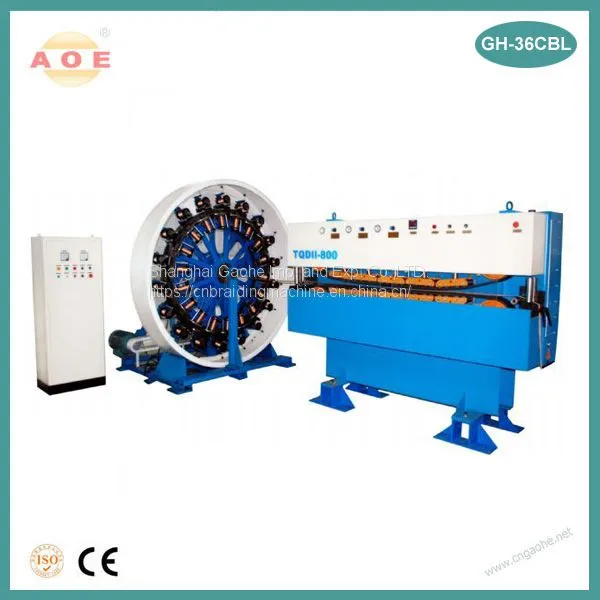

Help Center36 Spindle Cable Braiding Machine
Related Products
-
16 Spindle Cable Braiding MachineUS$ 6500 - 6750MOQ: 1 Set -
24 Spindle Cable Braiding MachineUS$ 11700 - 11750MOQ: 1 Set
-
High Quality 8 Spindle High Speed Lace Braiding Machine ManufacturersUS$ 2550 - 2650MOQ: 5 Sets
-
The Latest Launch 9 Spindle High Speed Lace Braiding MachineUS$ 2575 - 2650MOQ: 5 Sets
-
Supply Textile Machine 12 Spindle High Speed Lace Braiding MachineUS$ 2585 - 2650MOQ: 5 Sets
GAOHE is one of the competitive China cable braiding machine manufacturers. We produce 16,24 and 36 spindle cable braiding machine , and we hope to find agents to sell our cable braiding machine in other countries and hope we grow up with our customers together.
High speed cable braiding machine mainly used to produce different copper cable or the other copper, steel braided cable.
Advantages:
1.Base casting was machined in machining center after aging treatment to ensure the flatness.
2.Panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.
3.Core shaft rotor(impeller) uses ductile iron 600, firstly machined in machining center, high- frequency treatment on its surface to enhance its hardness, then machined by precision grinder.
4.Tolerance of fit between Spindle base and impeller is controlled within 0.03mm.
5.All the machines parts checked carefully before installation on the machine.
Characters:
Adopts high-quality shafts, reasonable structure, to ensure a stable function and longer lifespan.
Humanization design, safe and easy operation, direct and convenient maintenance. Reasonable spindle structure ensures customers to change the Bobbin in a fast and simple way.
This equipment uses auto thread cutting device.
Motor uses frequency converter to change the speed freely.
Standard accessories kit and complete after-sale service.
SPECIFICATION:
Specification:
MODEL |
GH-36CBL |
Motor for the main machine |
380V 7.5KW |
Rotation of the main machine Max |
55RPM |
Main motor for take-up |
Torque motor |
lifting motor for take-up and pay-off |
380V 1.1KW |
Control |
AC inverter controlled main machine speed 15-55RPM |
Tractive way |
caterpillar track |
Overall diameter of the wires to be braided Max |
Φ80mm |
Reel size |
Φ1600mm*1200mm |
Bobbin size |
Φ100mm*135mm ( full wire about 6KG) |
Strand size Φ0.30MM |
1-12 |
Φ0.25MM |
2-12 |
Φ0.15MM |
4-12 |
Φ0.12MM |
6-12 |
Pitch regulation |
49mm-249mm 72-360mm The pitch may be regulated steeples. |
REMARK:
1.The braiding stands may be soft copper wires, Al-Mg alloy wires and stainless steel wires.
2.The elongation shall be at least 10 to 17% for soft copper wires and between 3 and 5% for AL=MG alloy wires.
3. The stainless steel shall have an elongation between 38 and 45% and tension strength between 700 and 730MPA(based on φ0.2mm wire)
